RY AC200 (099749024) - Ryobi 20" Walk-Behind Mower, Rev 01 (2021-07) General Assembly Parts Diagram

20" Walk-Behind Mower, Rev 01

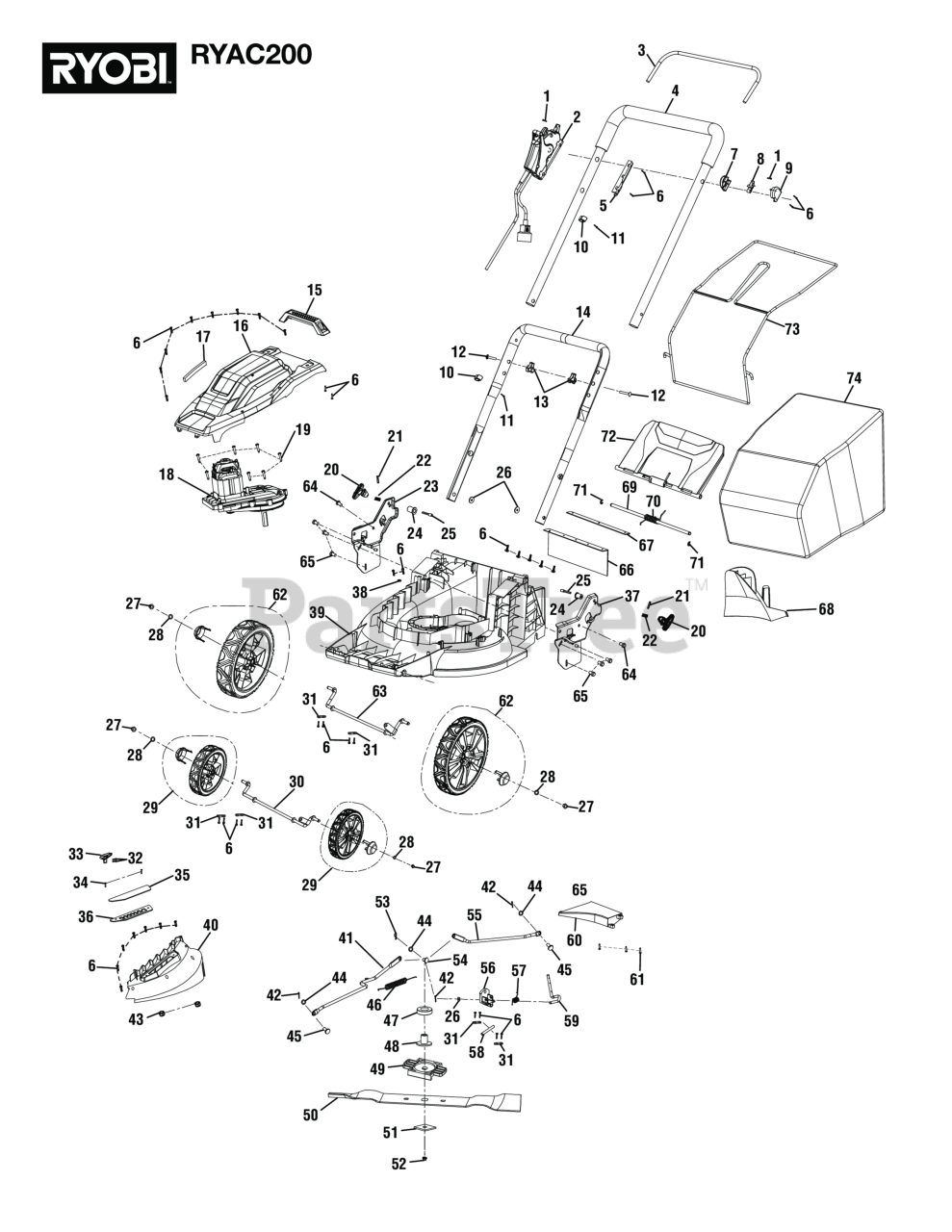

General Assembly Parts Diagram

  • Title

1

Homelite 099749024008

Screw (M4 x 10 mm)

$

$

Currently unavailable

2

Homelite 099749024009

Switch Box Assembly

$

$

Currently unavailable

3

Homelite 099749024010

Bail

$

$

Currently unavailable

4

Homelite 099749024011

Upper Handle Assembly

$

$

Currently unavailable

5

Homelite 099749024012

Switch Box Cover

$

$

Currently unavailable

6

Homelite 099749024013

Screw (M4.2 x 15 mm)

$

$

Currently unavailable

7

Homelite 099749024014

Fixed Base (Left)

$

$

Currently unavailable

8

Homelite 099749024015

Support Frame (Left)

$

$

Currently unavailable

9

Homelite 099749024016

Fixed Cover (Left)

$

$

Currently unavailable

10

Homelite 099749024017

Cord Clamp

$

$

Currently unavailable

11

Homelite 099749024018

Screw with Washer (ST3 x 16 mm)

$

$

Currently unavailable

12

Homelite 099749024019

Shoulder Screw (M8 x 57 mm)

$

$

Currently unavailable

13

Homelite 099749024020

Triangle Rotary Knob

$

$

Currently unavailable

14

Homelite 099749024021

Lower Handle

$

$

Currently unavailable

15

Homelite 099749024022

Carry Handle

$

$

Currently unavailable

16

Homelite 099749024023

Top Housing

$

$

Currently unavailable

17

Homelite 099749024024

Sponge Bar

$

$

Currently unavailable

18

Homelite 099749024025

Motor Assembly

$

$

Currently unavailable

19

Homelite 099749024026

Screw (ST4.2 x 18 mm)

$

$

Currently unavailable

20

Homelite 099749024027

Adjusting Knob for Spring Pin

$

$

Currently unavailable

21

Homelite 099749024028

Detent Pin

$

$

Currently unavailable

22

Homelite 099749024029

Detent Pin Spring

$

$

Currently unavailable

23

Homelite 099749024030

Handle Bracket (Right)

$

$

Currently unavailable

24

Homelite 099749024031

Sleeve

$

$

Currently unavailable

25

Homelite 099749024032

Handle Fixing Pin

$

$

Currently unavailable

26

Homelite 099749024033

Flat Washers (ID8 x OD16 x 1.6t)

$1.99

$

Usually ships in 0 days

0

27

Homelite 099749024034

Flange Nut (M8)

$

$

Currently unavailable

28

Homelite 099749024035

Flat Washers (ID8 x OD18 x 1.5t)

$

$

Currently unavailable

29

Homelite 099749024036

Front Wheel Assembly

$

$

Currently unavailable

30

Homelite 099749024037

Front Axle

$

$

Currently unavailable

31

Homelite 099749024038

Axle Press Plate

$

$

Currently unavailable

32

Homelite 099749024039

Screw (M4 x 12 mm)

$

$

Currently unavailable

33

Homelite 099749024040

Height Adjustment Handle

$

$

Currently unavailable

34

Homelite 099749024041

Screw (M5 x 18 mm)

$

$

Currently unavailable

35

Homelite 099749024042

Dust Proof Plate

$

$

Currently unavailable

36

Homelite 099749024043

Adjustment Lift Arm Bracket

$

$

Currently unavailable

37

Homelite 099749024044

Support Bracket (Left)

$

$

Currently unavailable

38

Homelite 099749024045

Cord Clip

$

$

Currently unavailable

39

Homelite 099749024046

Deck

$

$

Currently unavailable

40

Homelite 099749024047

Adjustment Handle Cover

$

$

Currently unavailable

41

Homelite 099749024048

Forward Linkage

$

$

Currently unavailable

42

Homelite 099749024049

Cotter Pin

$

$

Currently unavailable

43

Homelite 099749024050

Hex Lock Nut (M5)

$

$

Currently unavailable

44

Homelite 099749024051

Washer (ID10 x OD18 x 0.8t)

$

$

Currently unavailable

45

Homelite 099749024052

Short Pin

$

$

Currently unavailable

46

Homelite 099749024053

Regulation Spring

$

$

Currently unavailable

47

Homelite 099749024054

Dust Proof Bearing

$

$

Currently unavailable

48

Homelite 099749024055

Blade Supporter

$

$

Currently unavailable

49

Homelite 099749024056

Blade Holder

$

$

Currently unavailable

50

Homelite 099749024057

Blade

$

$

Currently unavailable

51

Homelite 099749024058

Blade Spacer

$

$

Currently unavailable

52

Homelite 099749024059

Hex Nut (M10)

$

$

Currently unavailable

53

Homelite 099749024060

Butterfly Pin

$2.49

$

Usually ships in 0 days

0

54

Homelite 099749024061

Long Pin Shaft

$

$

Currently unavailable

55

Homelite 099749024062

Rear Linkage

$

$

Currently unavailable

56

Homelite 099749024063

Adjustment Support Frame

$

$

Currently unavailable

57

Homelite 099749024064

Spring (Adjustment Support Frame)

$

$

Currently unavailable

58

Homelite 099749024065

Axle (Adjustment Support Frame)

$

$

Currently unavailable

59

Homelite 099749024066

Height Adjustment Arm

$

$

Currently unavailable

60

Homelite 099749024067

Deck Insert

$

$

Currently unavailable

61

Homelite 099749024068

Screw (ST4.2 x 12 mm)

$

$

Currently unavailable

62

Homelite 099749024069

Rear Wheel Assembly

$

$

Currently unavailable

63

Homelite 099749024070

Rear Wheel Axle

$

$

Currently unavailable

64

Homelite 099749024071

Hex Bolt (M8 x 30 mm)

$

$

Currently unavailable

65

Homelite 099749024072

Screw (ST6.5 x 18 mm)

$

$

Currently unavailable

66

Homelite 099749024073

Rear Protective Guard

$

$

Currently unavailable

67

Homelite 099749024074

Pressing Plate (Rear Protective Guard)

$

$

Currently unavailable

68

Homelite 099749024075

Mulch Plug

$

$

Currently unavailable

69

Homelite 099749024076

Rear Door Axle

$

$

Currently unavailable

70

Homelite 099749024077

Spring (Rear Door)

$

$

Currently unavailable

71

Homelite 099749024078

Retaining Ring

$

$

Currently unavailable

72

Homelite 099749024079

Rear Door

$

$

Currently unavailable

73

Homelite 099749024080

Grass Bag Frame

$

$

Currently unavailable

74

Homelite 099749024081

Grass Bag

$

$

Currently unavailable

Homelite 998000002

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
