RY 9C3501 (090930281) - Ryobi Digital Inverter Generator, Rev 04 (2018-10) General Assembly (Part 2) Parts Diagram

Digital Inverter Generator, Rev 04

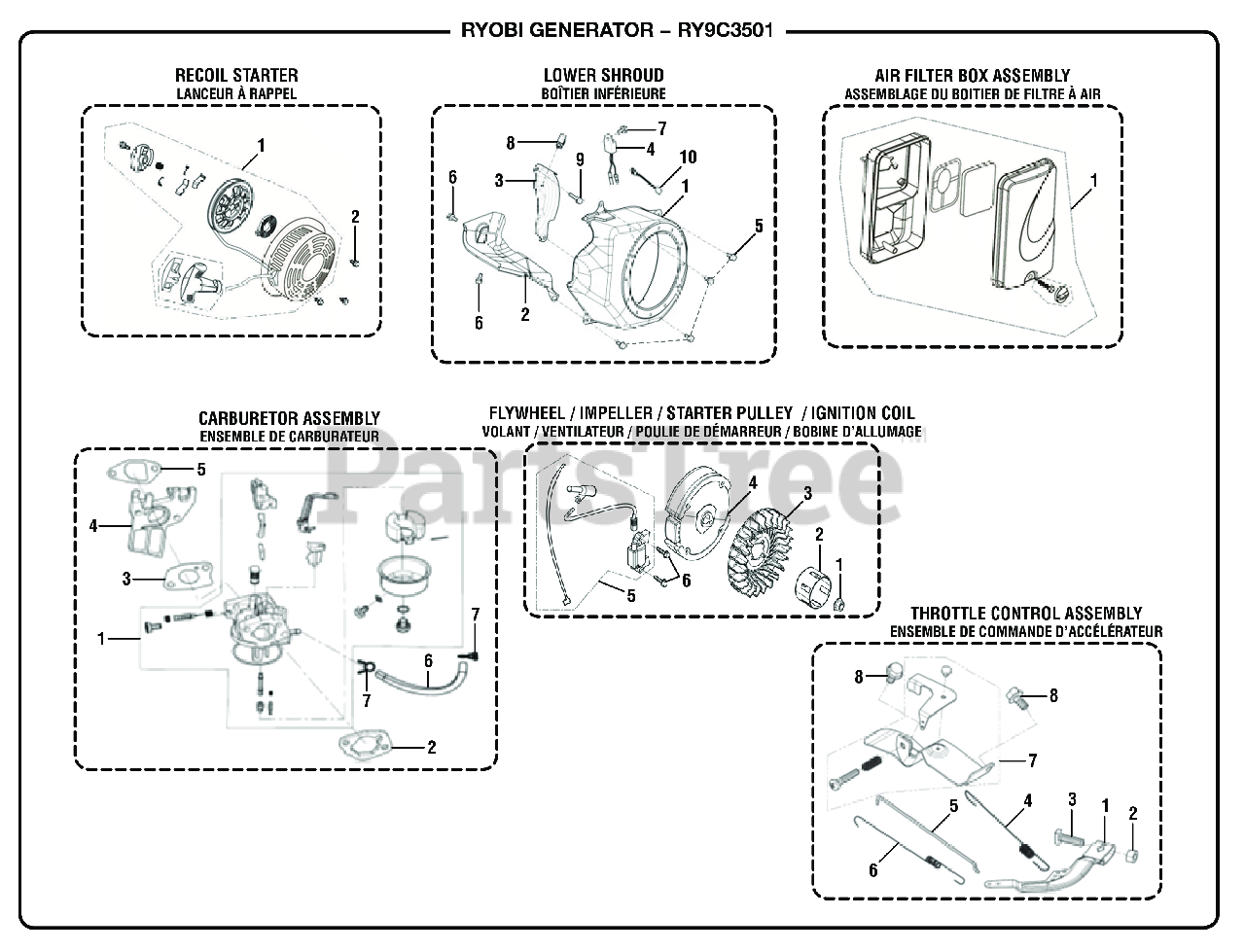

General Assembly (Part 2) Parts Diagram

  • Title

RECOIL STARTER

$

$

Not available

1

Homelite 28200-Z301410-H60

Recoil Starter Assembly

$

$

Currently unavailable

2

Homelite 90001-0608-01

Bolt

$2.99

$

Usually ships in 3-7 days

0

LOWER SHROUD

$

$

Not available

1

Homelite 28110-Z010410-VA0

Shroud

$

$

Currently unavailable

2

Homelite 19304-Z010110

Cylinder Body Shroud
(Superseded to 19304-Z010110-0000)

$

$

Not available

3

Homelite 19340-Z010510

Lower Shield
(Superseded to 19340-Z010510-0000)

$

$

Not available

4

Homelite 37050-Z010210

Oil Protector
(Superseded to 37050-Z010210-0000)

$7.49

$

Usually ships in 3-7 days

0

5

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 90001-0610-01

Bolt

$

$

Not available

7

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 90740-Z010110

Collar
(Superseded to 90740-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 90001-0616-01

Bolt

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 35541-Y2D0110

Engine Stop Wire
(Superseded to 35540-Z060130-QG00)

$6.49

$

Usually ships in 3-7 days

0

CARBURETOR ASSEMBLY

$

$

Not available

1

Homelite 16100-Z530710

Carburetor Assembly

$

$

Not available

2

Homelite 17001-Z010110

Air Cleaner Gasket
(Superseded to 17001-Z010110-0000)

$2.99

$

In Stock, Qty 5

0

3

Homelite 16001-Z010110

Carburetor Gasket
(Superseded to 16001-Z010110-0000)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 16003-Z010110

Carburetor Insulator Plate
(Superseded to 16003-Z010110-0000)

$4.99

$

In Stock, only 1 left!

0

5

Homelite 16002-Z050110

Carburetor Insulator Gasket

$2.99

$

In Stock, only 3 left!

0

6

Homelite 90686-Z012010

Fuel Tube

$26.99

$

Usually ships in 3-7 days

0

7

Homelite 90685-Z030220

Clamp
(Superseded to 90685-Z030220-0000)

$2.49

$

Usually ships in 3-7 days

0

AIR FILTER BOX ASSEMBLY

$

$

Not available

1

Homelite 17000-Z300110

Air Cleaner
(Superseded to 17000-Z300110-0099)

$

$

Not available

FLYWHEEL / IMPELLER / STARTER PULLEY / IGNITION COIL

$

$

Not available

1

Homelite 13501-Z010110

Flywheel Nut
(Superseded to 13501-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 28002-Z300110

Starter Pulley
(Superseded to 28002-Z300110-0000)

$7.99

$

Usually ships in 3-7 days

0

3

Homelite 19352-Z440110

Impeller
(Superseded to 19352-Z440110-0000)

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 13510-Z440410

Flywheel Assembly
(Superseded to 13510-Z440410-0000)

$86.99

$

Usually ships in 3-7 days

0

5

Homelite 30400-Z300110

Ignition Coil
(Superseded to 30400-Z300110-0000)

$24.99

$

Usually ships in 3-7 days

0

6

Homelite 90001-0625-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

THROTTLE CONTROL ASSEMBLY

$

$

Not available

1

Homelite 16070-Z010110

Governor Support Assembly
(Superseded to 16070-Z010110-0000)

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 16072-Z010110

Governor Support Bolt
(Superseded to 16072-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 16063-Z010310

Governor Spring
(Superseded to 16063-Z010310-0000)

$2.99

$

In Stock, Qty 5

0

5

Homelite 16062-Z010110

Governor Rod
(Superseded to 16062-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 16012-Z010110

Throttle Valve Return Spring

$2.49

$

In Stock, Qty 5

0

7

Homelite 16520-Z040120

Throttle Control Assembly

$8.49

$

Usually ships in 3-7 days

0

8

Homelite 90001-0610-01

Bolt

$

$

Not available

Homelite 120968001

High Altitude Kit, Ruixing Carburetor (3000-6000 ft., Not Included); NOT SHOWN

$8.49

$

Usually ships in 3-7 days

0

Homelite 120968002

High Altitude Kit, Ruixing Carburetor (6000-8000 ft., Not Included)

$

$

Not available

Homelite 120968031

High Altitude Kit, Huayi Carburetor (3000-6000 ft., Not Included)

$7.99

$

Usually ships in 3-7 days

0

Homelite 120968032

High Altitude Kit, Huayi Carburetor (6000-8000 ft., Not Included)

$7.49

$

Usually ships in 3-7 days

0
