RY 907000 FI (090930308) - Ryobi Inverter Generator, Rev 06 (2019-02) Figure B Parts Diagram

Inverter Generator, Rev 06

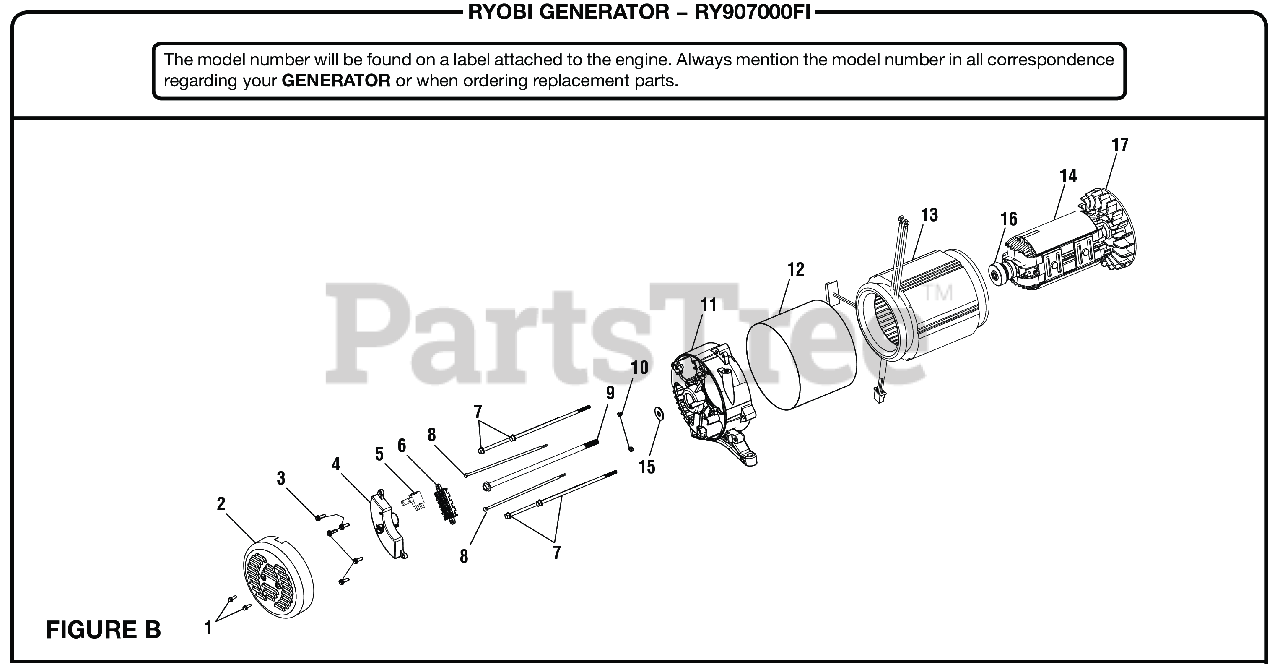

Figure B Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

5

Homelite 290441005

Brush Assembly 190 mm

$

$

Not available

6

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

7

Homelite 661603012

Stator Bolt

$

$

Not available

8

Homelite 660938021

Bolt (M6 x 229mm)

$

$

Not available

9

Homelite 661557033

Bolt (M10 x 280 mm)

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 690840002

Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 678865003

Bearing Housing

$

$

Not available

12

Homelite 638624016

Wrapper

$9.49

$

Usually ships in 3-7 days

0

13

Homelite 310771057

Stator Assembly

$282.99

$

Usually ships in 3-7 days

0

14

Homelite 310772060

Rotor Assembly

$231.99

$

Usually ships in 3-7 days

0

15

Homelite 638623002

Rotor Washer

$

$

Not available

16

Homelite 681963003

Ball Bearing

$

$

Not available

17

Homelite 307471003

Fan

$19.99

$

Usually ships in 3-7 days

0
