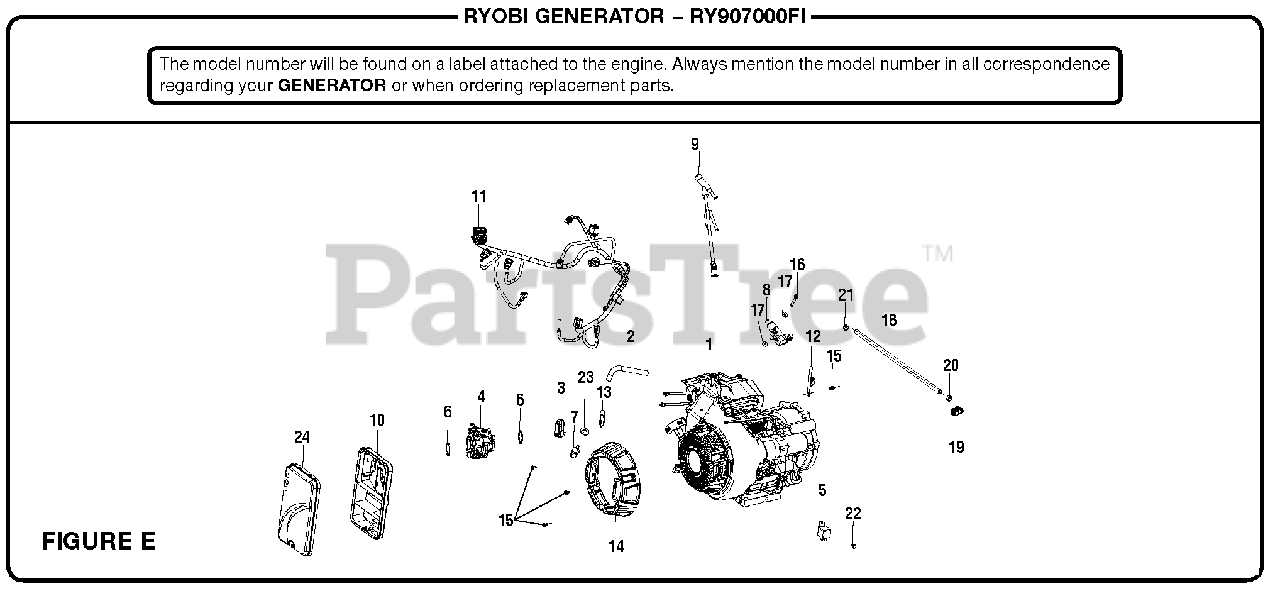

RY 907000 FI (090930308) - Ryobi Inverter Generator, Rev 05 (2018-10) Figure E Parts Diagram

Inverter Generator, Rev 05

Figure E Parts Diagram

  • Title
1

R420 EFI Engine (Longblock)

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Contact our service department for assistance.

$

$

Not available

2

Homelite 570358173

Crankcase Vent Hose

$2.49

$

Usually ships in 3-7 days

0

3

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 308802008

Throttle Body Assembly

$473.99

$

Usually ships in 3-7 days

0

5

Homelite 291422002

Starter EFI Relay

$32.99

$

Usually ships in 3-7 days

0

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 830291004

Head Temperature Sensor

$

$

Currently unavailable

8

Homelite 290190006

Ignition Coil

$

$

Currently unavailable

9

Homelite 291337007

High Tension Wire Assembly

$20.99

$

Usually ships in 3-7 days

0

10

Homelite 518248006

Rear Airbox w/ Bushings Assembly

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 290435036

EFI Wire Harness

$

$

Currently unavailable

12

Homelite 519729002

J-Clamp Flexible

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 901657008

EFI Intake Gasket

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 519815011

Recoil Cover

$9.99

$

Usually ships in 3-7 days

0

15

Homelite 661603001

Bolt (M5 x 10 mm, Hex Hd.)

$

$

Not available

16

Homelite 661834004

Bolt (M6 x 42 mm,T30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

17

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 570358184

Fuel Hose (440 mm)

$16.99

$

Usually ships in 3-7 days

0

19

Homelite 308459011

Fuel Quick Connect 90

$27.99

$

Usually ships in 3-7 days

0

20

Homelite 678408018

Injector Fuel Clamp

$

$

Currently unavailable

21

Homelite 678408017

Fuel Hose Ear Clamp

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 661834009

Bolt (M6 x 10mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 638275002

Washer (1/2)

$1.99

$

In Stock, Qty 5

0

24

Homelite 17101-Z310210-0000

Front Airbox Cover

$

$

Currently unavailable
