RY 906500 VNM (099930647) - Ryobi 6500 Watt Inverter Generator, Rev 01 (2021-05) FIGURE A Parts Diagram

6500 Watt Inverter Generator, Rev 01

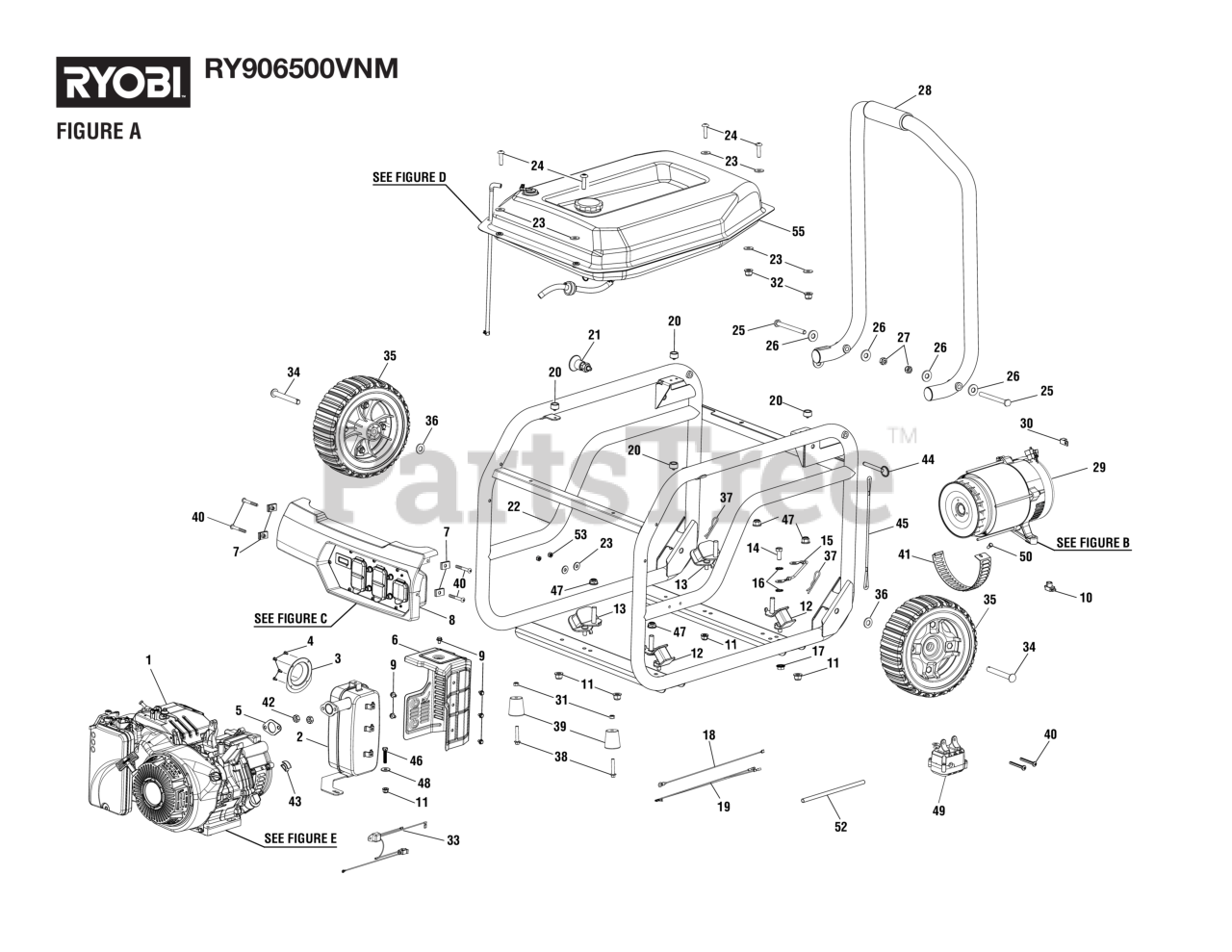

FIGURE A Parts Diagram

  • Title

1

Engine (Ducar 420cc).

Note: Techtronic Industries Power Equipment, Inc., Will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322041

Muffler

$124.99

$

Usually ships in 3-7 days

0

3

Homelite 638147003

Spark Arrester Screen

$

$

Not available

4

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 678728006

Exhaust Gasket

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 638497044

Heat Shield

$42.99

$

In Stock, only 1 left!

0

7

Homelite 678824004

U-Clip (M6)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 290403096

Control Panel Assembly

$

$

Currently unavailable

9

Homelite 660975009

Bolt (M6 x 9 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 570766008

Rubber Wire Protector

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

12

Homelite 679940003

Engine Isolator (Large)

$12.99

$

In Stock, only 4 left!

0

13

Homelite 679940005

Engine Isolator (Right)

$

$

Not available

14

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 290404001

Assembly, ground wire

$

$

Not available

16

Homelite 638704001

Washer (5/16 in., External Star)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 290427001

Off Switch Wire Assembly (Black)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 290405003

Wire Assembly Wire (Green)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 570712006

Handle Bumper

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 308910008

Quick Release Pin Assembly

Note: (Inc Key No. 32)

$

$

Not available

22

Homelite 308581082

Carrier Assembly

$190.99

$

Usually ships in 3-7 days

0

23

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

24

Homelite 660901003

Screw (1/4-20 x 1 in., T30 Torx Hd.)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 678522027

Handle Pivot Pin (5/6-18 x 90 mm)

$

$

Not available

26

Homelite 638128002

Washer ( 5/16 in.)

$

$

Not available

27

Homelite 678259003

Lock Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 310224081

Handle Assembly

Note: (Inc. Key No. 33)

$100.99

$

Usually ships in 3-7 days

0

29

Generator Head Assembly.

Note: See Fig. B

$

$

Not available

30

Homelite 638703005

Ground Lug (5/16-24) (BM903600)

$7.99

$

Usually ships in 3-7 days

0

31

Homelite 678774003

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, Qty 5

0

32

Homelite 678016001

HEX NUT (1/4-20) (BC30)
(Superseded to 81242)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 290514029

Low Oil/CO Shutdown Wiring Harness

$

$

Currently unavailable

34

Homelite 681866002

Washer (M10)

$20.99

$

Usually ships in 3-7 days

0

35

Homelite 308451033

Handle Isolator

$107.99

$

Usually ships in 3-7 days

0

36

Homelite 638422004

Washer (OD19.75 x ID10.5 x 1t)

$

$

Not available

37

Homelite 678146002

Hitch Pin (M3)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 661836007

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 562856010

Foot Assembly

$

$

Not available

40

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Pan Hd. )

$2.99

$

Usually ships in 3-7 days

0

41

Homelite 638983001

Fan Cover (Generator Head)

$

$

Not available

42

Homelite 678355001

Hex Nut (M8 x 1.25, Special)
(Superseded to 986163001)

$

$

Not available

43

Homelite 563030001

Plug (Generator Head)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

45

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

46

Homelite 660973019

Screw (M8 x 40 mm, Hex Hd.)

$

$

Not available

47

Homelite 678297001

Lock Nut (5/16-18)

$

$

Not available

48

Homelite 638675001

Washer (ID9 x OD25.4 x 2t)

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 290432053

CO Detector Shutdown Module

$289.99

$

Usually ships in 3-7 days

0

50

Homelite 660927001

Screw (M5 x 10 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

51

Fuel System

Note: See Fig. D

$

$

Not available

52

Homelite 700152005

Heat Shrink Tube

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

Homelite 995000446

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 995000447

Quick Reference Guide

Note: Not Shown

$6.49

$

Usually ships in 3-7 days

0
