RY 906500 (090930285) - Ryobi 6500 Watt Inverter Generator, Rev 02 (2018-10) Figure A Parts Diagram

6500 Watt Inverter Generator, Rev 02

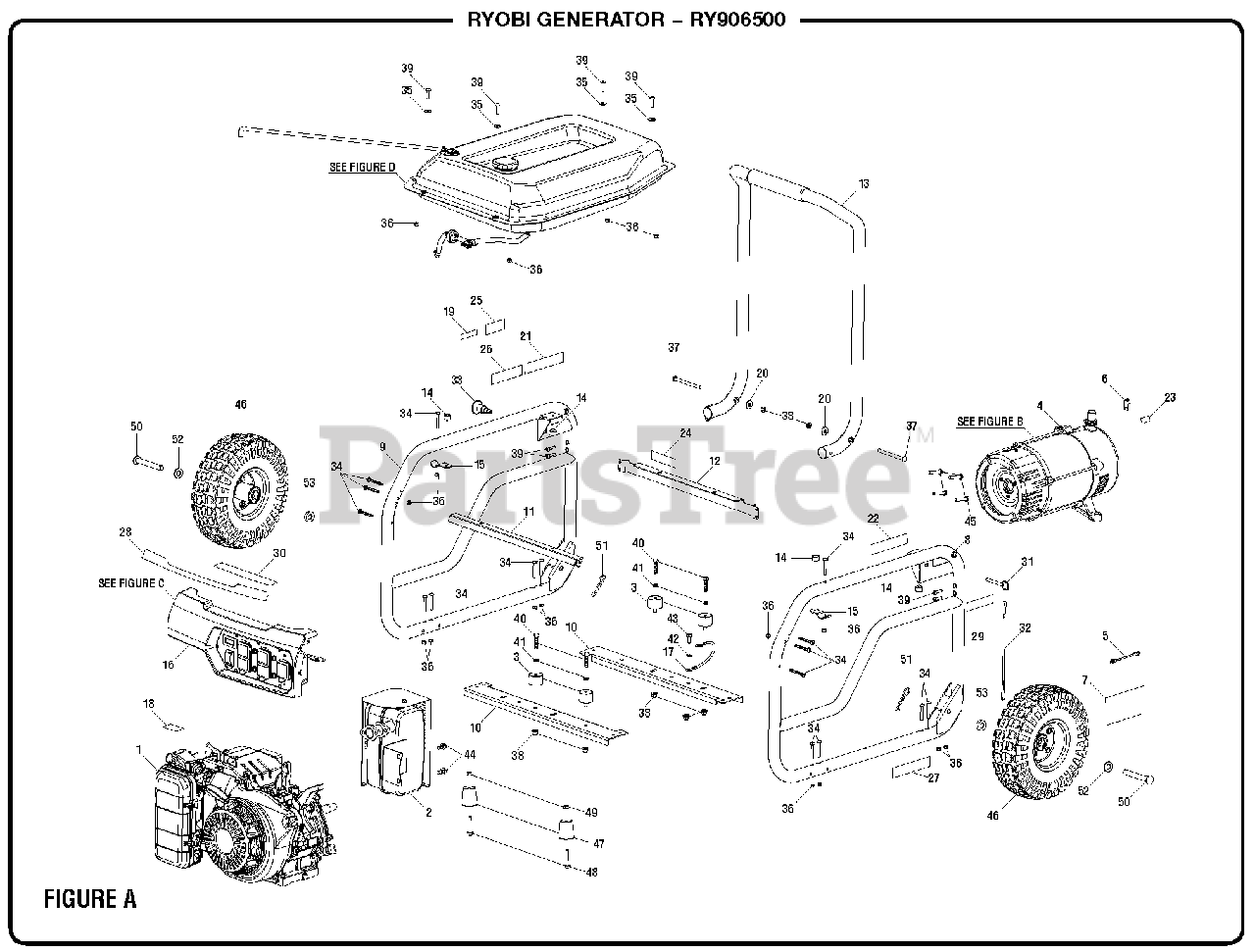

Figure A Parts Diagram

  • Title

1

Engine (Honda)

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322038

Muffler Assembly

$

$

Not available

3

Homelite 570356012

Isolator

$

$

Not available

4

Homelite 310227064

Generator Head Assembly (See Figure B)

$

$

Not available

5

Homelite 290455001

Bonding Wire

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 560878003

Rubber Sheet

$

$

Not available

8

Homelite 308581060

Frame Assembly (Right)

$

$

Not available

9

Homelite 308581061

Frame Assembly (Left)

$

$

Not available

10

Homelite 638735049

Cross Bar

$25.99

$

Usually ships in 3-7 days

0

11

Homelite 638959024

Fuel Tank Support (Front)

$19.99

$

Usually ships in 3-7 days

0

12

Homelite 638960013

Fuel Tank Support (Rear)

$13.99

$

Usually ships in 3-7 days

0

13

Homelite 310224082

Handle Assembly

$

$

Not available

14

Homelite 570712002

Handle Bumper

$

$

Not available

15

Homelite 678285007

Handle Rest Tab

$

$

Not available

16

Homelite 290403083

Control Panel Assembly (See Figure C)

$221.99

$

Usually ships in 3-7 days

0

17

Homelite 290404001

Ground Wire Assembly

$

$

Not available

18

Homelite 940647121

Choke Label

$

$

Not available

19

Homelite 941486008

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 638128004

Washer

$1.99

$

In Stock, Qty 5

0

21

Homelite 940974089

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 940974007

Fire Danger Label

$

$

Not available

23

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 940513029

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 940758005

Pull Pin Release Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 940680075

Hot Surface Label

$

$

Not available

27

Homelite 940708019

Lubricant Label

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 940779164

Performance Label

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 940514010

Lock Pin Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 940617164

Quick Start Label

$

$

Not available

31

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

32

Homelite 310715001

Lanyard

$

$

Not available

33

Homelite 308910010

Handle Lock Assembly

$

$

Not available

34

Homelite 660224019

Bolt (M6 x 50 mm, Torx Pan Hd. T30)

$2.99

$

Usually ships in 3-7 days

0

35

Homelite 673154002

Washer (M6)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 678460009

Lock Nut (M6)

$

$

Not available

37

Homelite 661851004

Bolt (M8 x 98 mm, Flat Hd.)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 678774012

Lock Nut (M8)

$1.99

$

In Stock, only 2 left!

0

39

Homelite 661834005

Bolt (M6 x 25 mm, Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

41

Homelite 673155001

Washer (M8)

$2.99

$

In Stock, only 1 left!

0

42

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

44

Homelite 660599002

Bolt (5/16-24 x 0.6 in.)

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 660596002

Bolt (3/8-16 x 1 in.)

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 308451010

Wheel

$

$

Not available

47

Homelite 562856010

Foot

$

$

Not available

48

Homelite 661836007

Bolt (M8 x 45 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 678774004

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, only 4 left!

0

50

Homelite 681866006

Axle

$

$

Not available

51

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 638422004

Washer (M10)

$

$

Not available

53

Homelite 638498003

Spacer

$3.49

$

In Stock, only 3 left!

0

Homelite 991000692

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000693

Quick Reference Guide

Note: Not Shown

$8.49

$

Usually ships in 3-7 days

0

Homelite 120302014

Hardware Kit

Note: Not Shown

$31.99

$

Usually ships in 3-7 days

0
