RY 905500 E (090930279) - Ryobi Inverter Generator, Rev 10 (2019-03) FIGURE D Parts Diagram
Inverter Generator, Rev 10

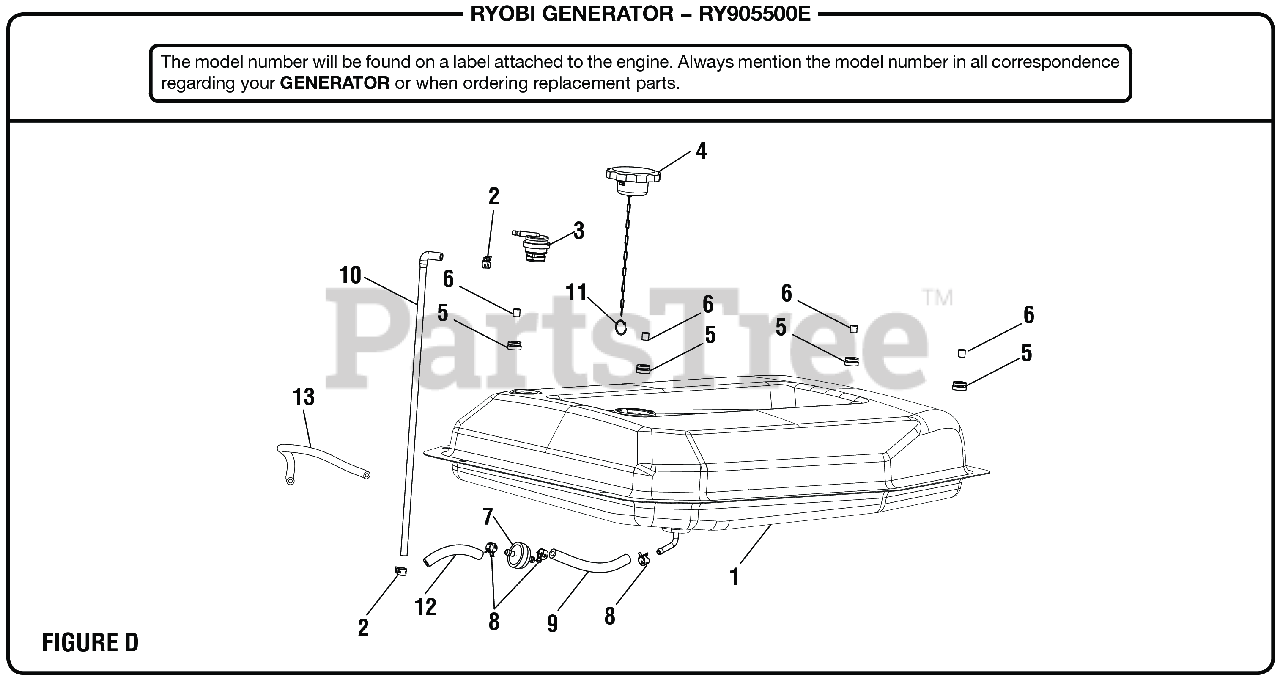

FIGURE D Parts Diagram
Homelite 310711097
Fuel Tank Assembly (See Fig. B)
$383.99
$
Usually ships in 3-7 days
Homelite 678409003
Fuel Line Clamp (7/16 in., BM903611)
$1.99
$
In Stock, Qty 5
Homelite 310854006
Fuel Tank Vapor Vent
$21.99
$
In Stock, only 1 left!
Homelite 310720026
Fuel Cap Assembly
$40.99
$
Usually ships in 3-7 days
Homelite 519832003
Bushing (Fuel Tank Isolator)
$3.49
$
Usually ships in 3-7 days
Homelite 518528002
Spacer (Fuel Tank Isolator)
$
$
Not available
$7.49
$
In Stock, only 4 left!
Homelite 678408006
Fuel Line Clamp (1/2 in.).
$3.49
$
In Stock, only 1 left!
Homelite 570358162
Fuel Hose (175 mm)
$13.99
$
Usually ships in 3-7 days
Homelite 570358163
Vapor Hose
$6.49
$
Usually ships in 3-7 days
Homelite 678899007
Ring Clip
$2.49
$
In Stock, only 4 left!
Homelite 570358161
Fuel Hose (85 mm)
$5.49
$
In Stock, only 1 left!
Homelite 570358160
Fuel Hose (330 mm)
$15.99
$
In Stock, only 1 left!
