RY 905500 E (090930279) - Ryobi Inverter Generator, Rev 10 (2019-03) FIGURE A Parts Diagram

Inverter Generator, Rev 10

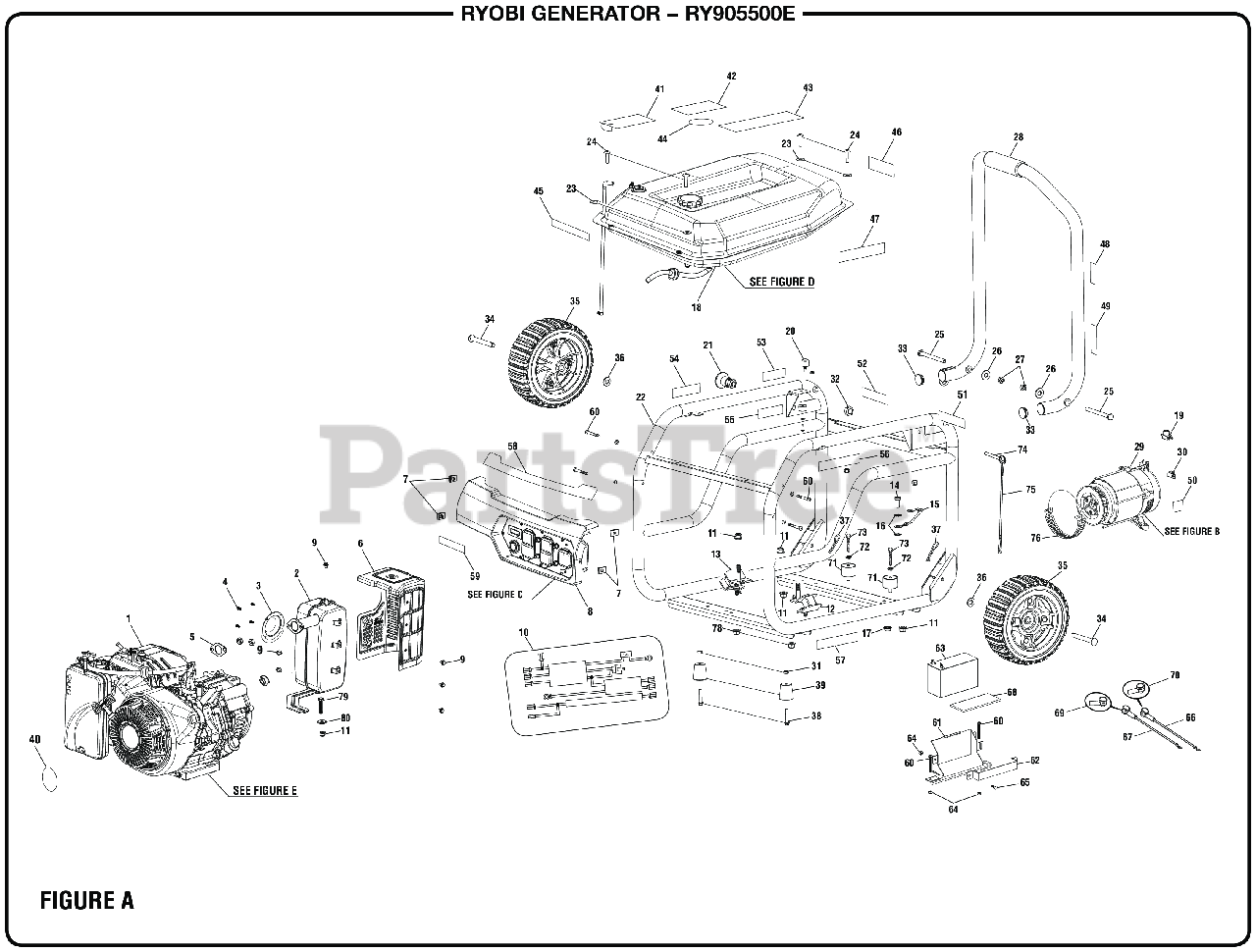

FIGURE A Parts Diagram

  • Title

1

Engine (Ducar 420cc)

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322041

Muffler

$124.99

$

Usually ships in 3-7 days

0

3

Homelite 638147003

Spark Arrester Screen

$

$

Not available

4

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 678728006

Exhaust Gasket

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 638497044

Heat Shield

$42.99

$

In Stock, only 1 left!

0

7

Homelite 678824004

U-Clip (M6)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 290403080

Control Panel Assembly

$469.99

$

Usually ships in 3-7 days

0

9

Homelite 660975009

Bolt (M6 x 9 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 290435032

Wire Assembly

$125.99

$

Usually ships in 3-7 days

0

11

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

12

Homelite 679940003

Engine Isolator (Large)

$12.99

$

In Stock, only 4 left!

0

13

Homelite 679940005

Engine Isolator (Right)

$

$

Not available

14

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 290404001

Assembly, ground wire

$

$

Not available

16

Homelite 638704001

Washer (5/16 in., External Star)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 310711180

Fuel System

$384.99

$

Usually ships in 3-7 days

0

19

Homelite 570766004

Rubber Sleeve

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 570712002

Rubber Bumper

$

$

Not available

21

Homelite 308910008

Quick Release Pin Assembly

$

$

Not available

22

Homelite 308581173

Carrier Assembly

$390.99

$

Usually ships in 3-7 days

0

23

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

24

Homelite 660901003

Screw (1/4-20 x 1 in., T30 Torx Hd.)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 678522027

Handle Pivot Pin (5/6-18 x 90 mm)

$

$

Not available

26

Homelite 638128002

Washer ( 5/16 in.)

$

$

Not available

27

Homelite 678259003

Lock Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 310224081

Handle Assembly

$100.99

$

Usually ships in 3-7 days

0

29

Homelite 310227071

Generator Head Assembly (See Fig. A)

$350.99

$

Usually ships in 3-7 days

0

30

Homelite 638703005

Ground Lug (5/16-24) (BM903600)

$7.99

$

Usually ships in 3-7 days

0

31

Homelite 678774003

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, Qty 5

0

32

Homelite 678518002

Lock Nut (1/2-20, Hex)

$4.99

$

Usually ships in 3-7 days

0

33

Homelite 519712004

End Cap

$

$

Currently unavailable

34

Homelite 681866002

Washer (M10)

$20.99

$

Usually ships in 3-7 days

0

35

Homelite 308451033

Handle Isolator

$107.99

$

Usually ships in 3-7 days

0

36

Homelite 638422004

Washer (OD19.75 x ID10.5 x 1t)

$

$

Not available

37

Homelite 678146002

Hitch Pin (M3)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 661836007

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 562856010

Foot Assembly

$

$

Not available

40

Homelite 940633049

Engine Recoil Label

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 940971087

Warning Hangtag

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940654254

Warning Label

$8.49

$

Usually ships in 3-7 days

0

43

Homelite 940515016

CPSC (English) Label

$11.99

$

Usually ships in 3-7 days

0

44

Homelite 940872022

Remove Cap Fuel Stabilizer Label (English)

$

$

Not available

45

Homelite 940705327

Logo Label

$8.49

$

Usually ships in 3-7 days

0

46

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

47

Homelite 940617167

Start Label

$

$

Not available

48

Homelite 940872024

Fuel Stabilizer Label (French/Spanish)

$

$

Not available

49

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

50

Homelite 940513002

Ground Label Icon

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 940513029

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940974007

Risk of Fire Danger Label

$

$

Not available

53

Homelite 940758005

Quick Release Pin Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 941486008

Inquires Label (Ryobi)

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 940974089

Fire Distance Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 940708019

Engine Lubricant Label

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940779167

Performance Label

$

$

Not available

59

Homelite 940647125

Choke Label

$

$

Not available

60

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Pan Hd. )

$2.99

$

Usually ships in 3-7 days

0

61

Homelite 678714015

Battery Box Gasket

$17.99

$

Usually ships in 3-7 days

0

62

Homelite 308681009

Battery Hold Down Bracket Assembly

$5.49

$

Usually ships in 3-7 days

0

63

Homelite 750400010

Battery Bracket

$174.99

$

Usually ships in 3-7 days

0

64

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

65

Homelite 661505030

Screw (M6 x 16 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 290418004

Battery Cable (Red)

$8.49

$

Usually ships in 3-7 days

0

67

Homelite 290419004

Battery Cable (Black)

$8.99

$

Usually ships in 3-7 days

0

68

Homelite 570630004

Gasket (Battery Hold Down Bracket)

$3.49

$

Usually ships in 3-7 days

0

69

Homelite 570766014

Rubber Battery Cable Boot (Black)

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

71

Homelite 570356012

Isolator Generation 7

$

$

Not available

72

Homelite 673155001

Lock Washer (OD14.8 x ID8.5 x 1t)

$2.99

$

In Stock, only 1 left!

0

73

Homelite 660973017

Bolt (M8 x 1.25 in., Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

74

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

75

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

76

Homelite 638983001

Fan Cover (Generator Head)

$

$

Not available

78

Homelite 678297001

Lock Nut (5/16-18)

$

$

Not available

79

Homelite 660973019

Screw (M8 x 40 mm, Hex Hd.)

$

$

Not available

80

Homelite 638675001

Washer (ID9 x OD25.4 x 2t)

$2.49

$

Usually ships in 3-7 days

0

Homelite 991000746

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000747

Quick Reference Guide

Note: Not Shown

$5.99

$

Usually ships in 3-7 days

0

Homelite 120302017

Hardware Kit

Note: Not Shown

$46.99

$

Usually ships in 3-7 days

0
