RY 905500 E (090930279) - Ryobi Inverter Generator, Rev 04 (2018-05) Figure A Parts Diagram

Inverter Generator, Rev 04

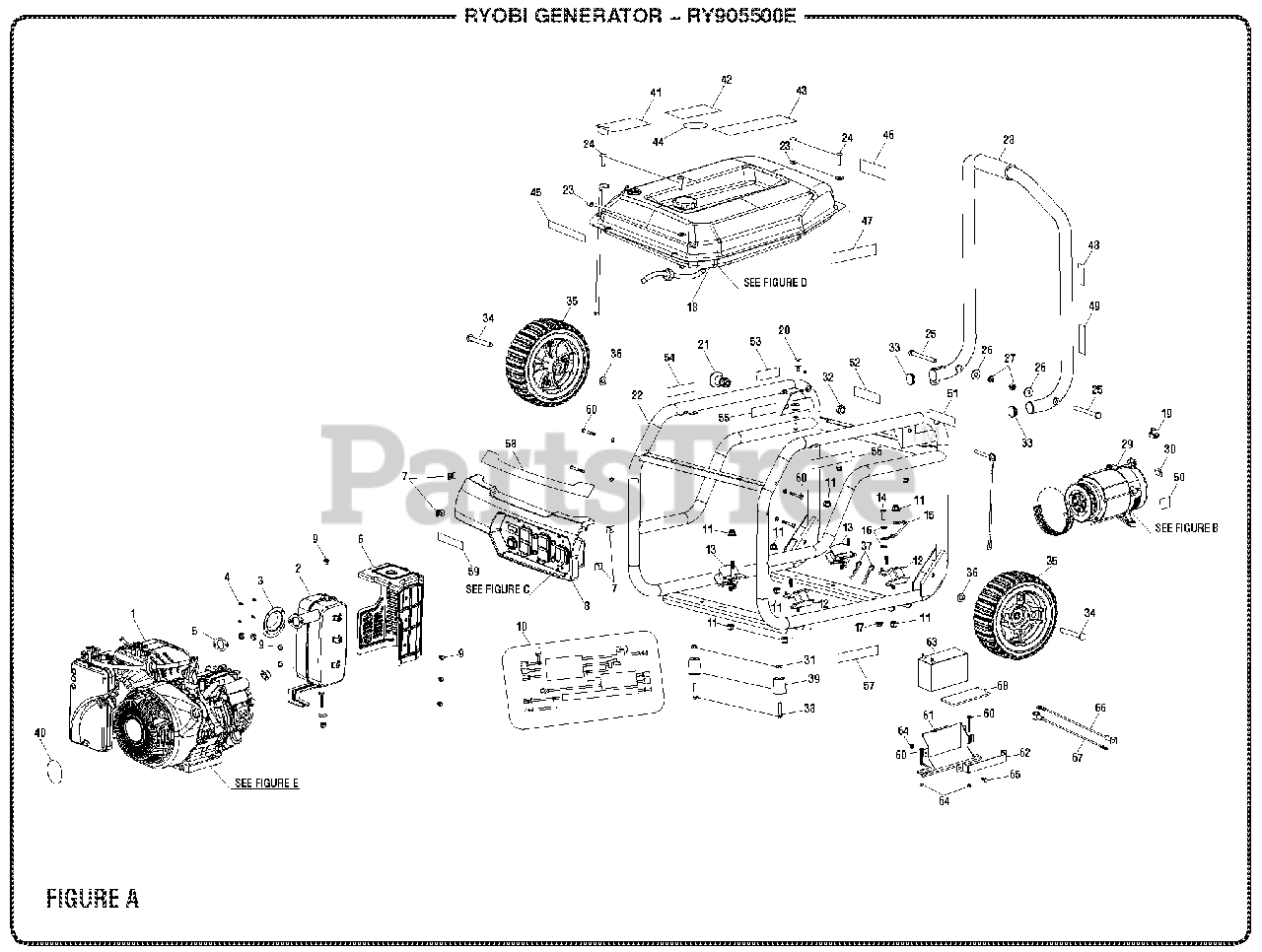

Figure A Parts Diagram

  • Title

1

Engine (Ducar 420cc)

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322041

Muffler

$124.99

$

Usually ships in 3-7 days

0

3

Homelite 638147003

Spark Arrester

$

$

Not available

4

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 678728006

Exhaust Gasket

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 638497044

Heat Shield

$42.99

$

In Stock, only 1 left!

0

7

Homelite 678824004

U-Clip (M6)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 290403080

Control Panel Assembly

$469.99

$

Usually ships in 3-7 days

0

9

Homelite 660975009

Bolt (M6 x 9 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 290435032

Wire Assembly

$125.99

$

Usually ships in 3-7 days

0

11

Homelite 678774002

Lock Nut (M8)

$

$

Not available

12

Homelite 679940003

Isolator (Large)

$12.99

$

In Stock, only 4 left!

0

13

Homelite 679940005

Isolator (Small)

$

$

Not available

14

Homelite 661502005

Bolt (5/16-18 X 0.75 in.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 290404001

Ground Wire Assembly

$

$

Not available

16

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 310711180

Fuel System

$384.99

$

Usually ships in 3-7 days

0

19

Homelite 570766004

Rubber Boot

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 570712002

Handle Bumper

$

$

Not available

21

Homelite 308910008

Quick Release Pin

Note: (Inc Key No. 32)

$

$

Not available

22

Homelite 308581173

Carrier Assembly

$390.99

$

Usually ships in 3-7 days

0

23

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

24

Homelite 660901003

Screw (1/4-20 x 1 in., T30 Torx Hd.)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 678522027

Handle Pivot Bolt

$

$

Not available

26

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

27

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 310224081

Handle Assembly

Note: (Inc. Key No. 33)

$100.99

$

Usually ships in 3-7 days

0

29

Homelite 310227071

Generator Head Assembly

$350.99

$

Usually ships in 3-7 days

0

30

Homelite 638703005

Ground Lug

$7.99

$

Usually ships in 3-7 days

0

31

Homelite 678774003

Lock Nut (M8)

$2.49

$

In Stock, Qty 5

0

32

Homelite 678518002

Lock Nut (1/2-20)

$4.99

$

Usually ships in 3-7 days

0

33

Homelite 519712004

End Cap

$

$

Currently unavailable

34

Homelite 681866002

Axle Bolt

$20.99

$

Usually ships in 3-7 days

0

35

Homelite 308451033

Wheel

$107.99

$

Usually ships in 3-7 days

0

36

Homelite 638422004

Washer (M10)

$

$

Not available

37

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 661836007

Bolt (M8 x 45 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 562856010

Foot

$

$

Not available

40

Homelite 940633049

Recoil Label

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 940971087

Notice Hangtag

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940654254

Warning Label

$8.49

$

Usually ships in 3-7 days

0

43

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

44

Homelite 940872022

Fuel Stabilizer Label

$

$

Not available

45

Homelite 940705327

Logo Label

$8.49

$

Usually ships in 3-7 days

0

46

Homelite 940947003

Combustion Warning Label

$

$

Not available

47

Homelite 940617167

Start Label

$

$

Not available

48

Homelite 940872024

Fuel Stabilizer Label (SP/FR)

$

$

Not available

49

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

50

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 940513029

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940974007

Fire Danger Label

$

$

Not available

53

Homelite 940758005

Pin Release Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 941486008

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 940974089

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 940708019

Lubricant Label

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940779167

Performance Label

$

$

Not available

59

Homelite 940647125

Choke Label

$

$

Not available

60

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Hd. )

$2.99

$

In Stock, only 2 left!

0

61

Homelite 678714015

Battery Tray

$17.99

$

Usually ships in 3-7 days

0

62

Homelite 308681009

Battery Bracket

$5.49

$

In Stock, only 1 left!

0

63

Homelite 750400005

Battery
(Superseded to 750400010)

$174.99

$

Usually ships in 3-7 days

0

64

Homelite 678460009

Lock Nut (M6)

$

$

Not available

65

Homelite 661505030

Bolt (M6 x 16 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 290418004

Battery Cable (Red)

$8.49

$

Usually ships in 3-7 days

0

67

Homelite 290419004

Battery Cable (Black)

$8.99

$

Usually ships in 3-7 days

0

68

Homelite 570630004

Battery Tray Gasket

$3.49

$

In Stock, only 1 left!

0

Homelite 991000746

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000747

Quick Reference Guide

$5.99

$

Usually ships in 3-7 days

0

Homelite 120302017

Hardware Kit

$46.99

$

Usually ships in 3-7 days

0
