RY 905500 (090930347) - Ryobi Inverter Generator, Rev 04 (2019-02) FIGURE D Parts Diagram

Inverter Generator, Rev 04

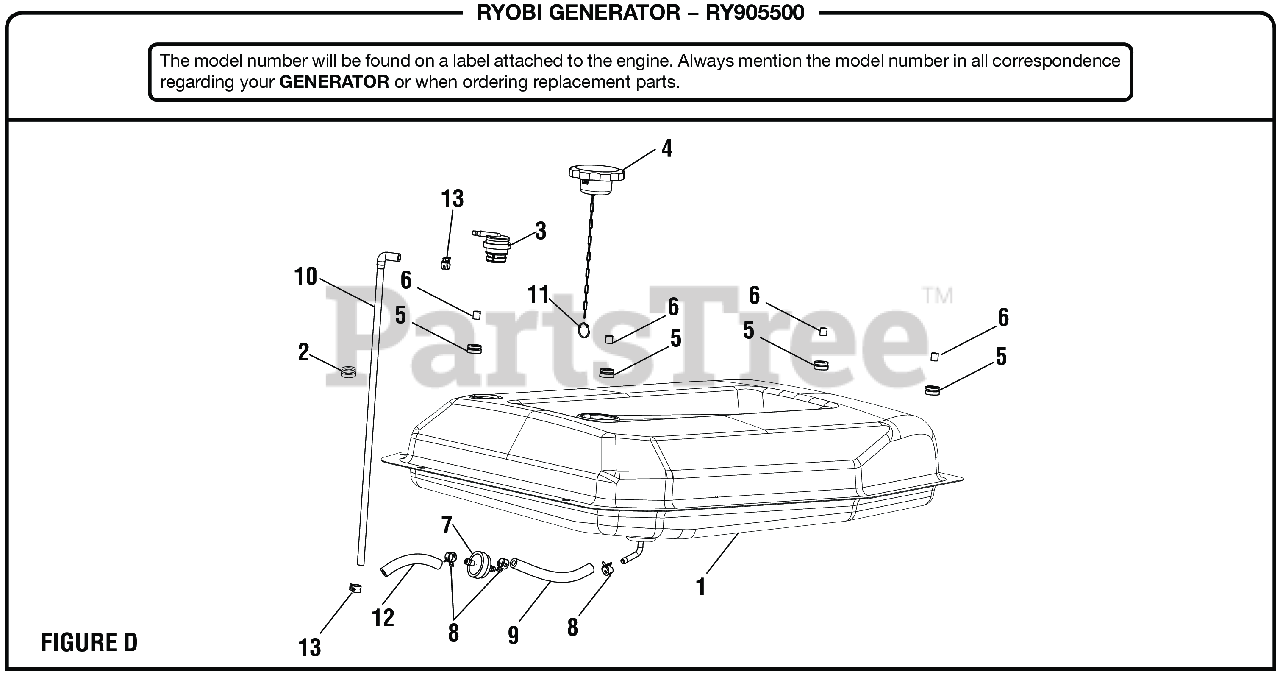

FIGURE D Parts Diagram

  • Title
1

Homelite 310711111

Fuel Tank

$231.99

$

Usually ships in 3-7 days

0

2

Homelite 570358091

Fuel Hose Protector

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 310854006

Fuel Tank Vapor Vent

$21.99

$

In Stock, only 1 left!

0

4

Homelite 310720026

Fuel Cap Assembly

$40.99

$

Usually ships in 3-7 days

0

5

Homelite 519832003

Bushing (Fuel Tank Isolator)

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 518528002

Spacer (Fuel Tank Isolator)

$

$

Not available

7

Homelite 308733001

Fuel Filter Inline (1/4 in.)
(Superseded to 308733008)

$7.49

$

In Stock, only 4 left!

0

8

Homelite 678408006

Fuel Line Clamp (1/2 in.).

$3.49

$

In Stock, only 1 left!

0

9

Homelite 570358162

Fuel Hose (175 mm)

$13.99

$

Usually ships in 3-7 days

0

10

Homelite 570358163

Vapor Hose

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0

12

Homelite 570358161

Fuel Hose (85 mm)

$5.49

$

In Stock, only 1 left!

0

13

Homelite 678409003

Fuel Line Clamp (7/16 in., BM903611)

$1.99

$

In Stock, Qty 5

0
