RY 905500 (090930347) - Ryobi Inverter Generator, Rev 03 (2018-09) FIGURE E Parts Diagram

Inverter Generator, Rev 03

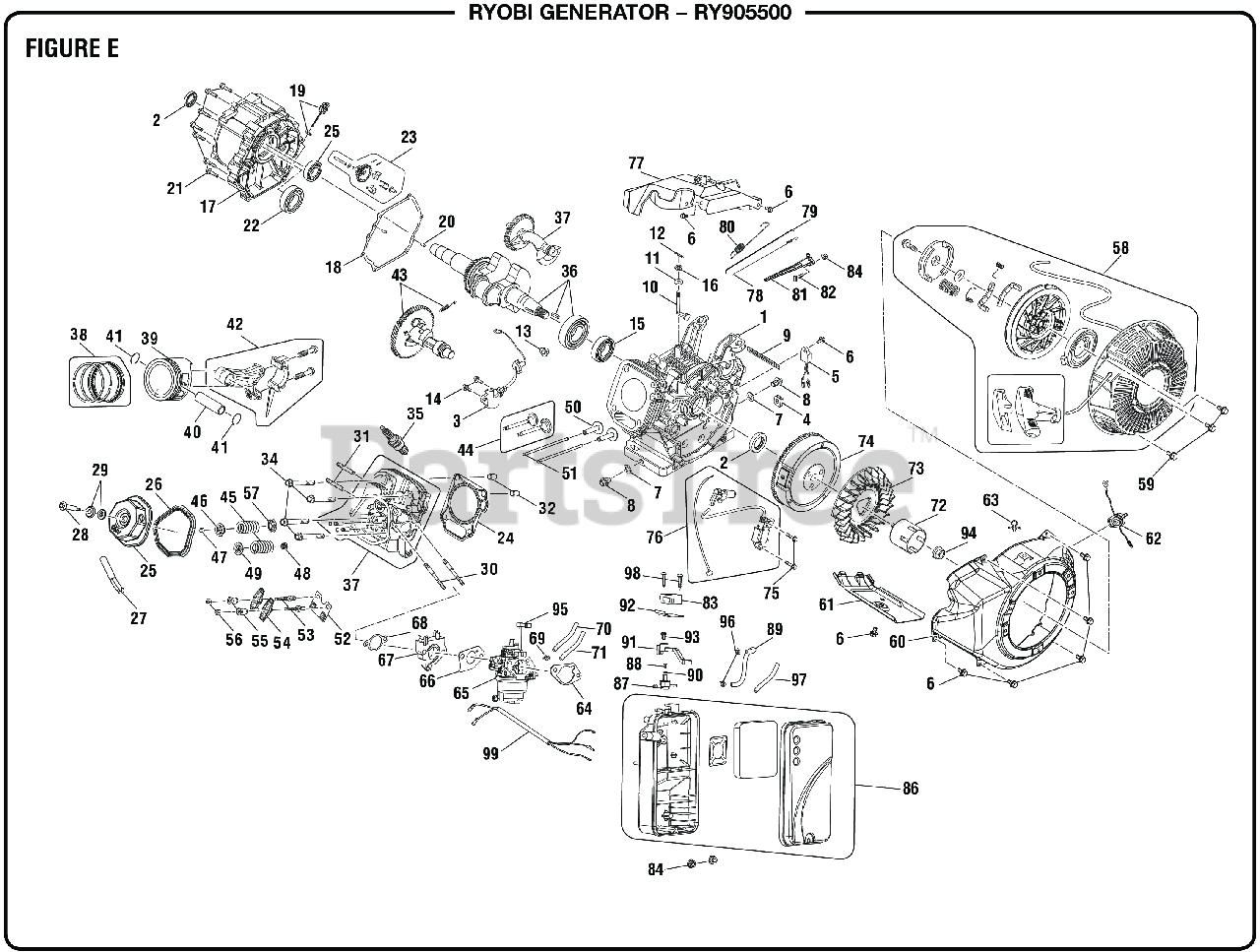

FIGURE E Parts Diagram

  • Title

1

Homelite 11310-Z220810-0B00

Crankcase

$

$

Not available

2

Homelite 90682-Z310110-0000

Oil Seal

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 37060-Z080120-0000

Engine Oil Sensor

$14.99

$

Usually ships in 3-7 days

0

4

Homelite 28101-Z080110-0000

Rubber Plug

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 37050-Z010210-0000

Oil Protector

$7.49

$

Usually ships in 3-7 days

0

6

Homelite 90001-0612-01

Bolt (need size)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 90412-Z080110-0000

Drain Plug Washer

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 11007-Z080110-0000

Drain Plug Bolt
(Superseded to 11007-Z080110)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 90684-Z030120-0000

Clamp

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 16061-Z100110-0000

Governor Arm

$5.99

$

Usually ships in 3-7 days

0

11

Homelite 90412-Z080210-0000

Washer

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 90501-Z010110-0000

Pin

$2.49

$

In Stock, only 2 left!

0

13

Homelite 90305-Z010210-01

Lock Nut

$

$

Not available

14

Homelite 90001-0616-01

Bolt

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 90548-0202-CL

Ball Bearing

$7.49

$

Usually ships in 3-7 days

0

16

Homelite 90682-Z100210-0000

Oil Seal

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 11411-Z100610-0B00

Crankcase Cover

$139.99

$

Usually ships in 3-7 days

0

18

Homelite 11001-Z100120-0000

Crankcase Gasket

$

$

Not available

19

Homelite 15010-Z080330-QG00

Oil Filler Cap (Yellow)

$5.49

$

Usually ships in 3-7 days

0

20

Homelite 90502-0812-00

Pin

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 90001-0840-01

Bolt

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 90547-0207-CL

Bearing

$22.99

$

Usually ships in 3-7 days

0

23

Homelite 16400-Z100110-0000

Governor Gear Assembly

$15.99

$

Usually ships in 3-7 days

0

24

Homelite 12131-Z190410-0000

Cylinder Head Gasket

$6.49

$

Usually ships in 3-7 days

0

25

Homelite 12410-Z580110-0199

Cylinder Head Cover Assembly

$15.99

$

Usually ships in 3-7 days

0

26

Homelite 12004-Z580110-0099

Cylinder Head Gasket

$7.49

$

Usually ships in 3-7 days

0

27

Homelite 17004-Z080320-0000

Breather Tube

$3.49

$

Usually ships in 3-7 days

0

28

Homelite 12032-Z080110-0100

Cylinder Head Cover Bolt

$5.99

$

Usually ships in 3-7 days

0

29

Homelite 12034-Z080110-0099

Bolt + Gasket

$

$

Not available

30

Homelite 90204-Z100410-0000

Stud Bolt

$4.49

$

Usually ships in 3-7 days

0

31

Homelite 90203-Z010110-0000

Threaded Stud

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 90502-1220-00

Pin

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 12003-Z080110-0000

Cylinder Head Bolt
(Superseded to 12003-Z080110)

$4.99

$

Usually ships in 3-7 days

0

34

Homelite 30010-Z030110-0000

Spark Plug

$11.99

$

In Stock, only 1 left!

0

35

Homelite 12140-Z190230-0B99

Cylinder Head Assembly

$184.99

$

In Stock, only 1 left!

0

36

Homelite 13300-Z190110-CL00

Crankshaft Assembly

$227.99

$

Usually ships in 3-7 days

0

37

Homelite 13400-Z190320-0000

Balancing Shaft

$60.99

$

Usually ships in 3-7 days

0

38

Homelite 13200-Z190210-0099

Piston Rings Set

$27.99

$

Usually ships in 3-7 days

0

39

Homelite 13111-Z190310-0099

Piston

$48.99

$

Usually ships in 3-7 days

0

40

Homelite 13121-Z100110-0000

Piston Pin

$7.99

$

Usually ships in 3-7 days

0

41

Homelite 13122-Z100110-0000

Piston Pin Clip

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 13010-Z190120-0000

Connecting Rod

$40.99

$

Usually ships in 3-7 days

0

43

Homelite 14200-Z190610-0099

Camshaft Assembly

$94.99

$

Usually ships in 3-7 days

0

44

Homelite 12110-Z190110-0099

Valve Set

$35.99

$

Usually ships in 3-7 days

0

45

Homelite 12103-Z080110-0000

Valve Spring

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 12107-Z080110-0000

Exhaust Valve Retainer

$5.99

$

Usually ships in 3-7 days

0

47

Homelite 12104-Z080110-0000

Valve Retainer

$4.49

$

Usually ships in 3-7 days

0

48

Homelite 12101-Z080110-0000

Seal Guide

$10.99

$

Usually ships in 3-7 days

0

49

Homelite 12112-Z080110-0000

Valve Spring Retainer

$

$

Currently unavailable

50

Homelite 14081-Z080110-0000

Valve Lifter

$6.49

$

Usually ships in 3-7 days

0

51

Homelite 14070-Z100110-0000

Valve Tappet

$4.99

$

Usually ships in 3-7 days

0

52

Homelite 14090-Z080110-0000

Lifter Stopper Plate Assembly

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 14313-Z010110-0000

Valve Adjustment Bolt

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 14311-Z080110-0000

Valve Rocker

$5.99

$

Usually ships in 3-7 days

0

55

Homelite 14314-Z010110-0000

Valve Adjustment Nut

$3.49

$

Usually ships in 3-7 days

0

56

Homelite 14312-Z010110-0000

Valve Lock Nut

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 12105-Z080110-0000

Valve Spring Retainer

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 28200-Z190310-H600

Recoil Starter Assembly

$87.99

$

Usually ships in 3-7 days

0

59

Homelite 90251-0608-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 28110-Z310610-VA00

Shroud

$46.99

$

Usually ships in 3-7 days

0

61

Homelite 19304-Z100210-0000

Cylinder Shroud

$5.99

$

Usually ships in 3-7 days

0

62

Homelite 35540-Z060140-QG00

Stop Engine Switch Assembly
(Superseded to 35540-Z060130-QG00)

$6.49

$

In Stock, only 1 left!

0

63

Homelite 90684-Z030210-0000

Clip

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 17001-Z080110-0000

Air Cleaner Gasket

$1.99

$

In Stock, Qty 17

0

65

Homelite 16100-Z194410-0009

Carburetor Assembly

$115.99

$

Usually ships in 3-7 days

0

66

Homelite 16001-Z100110-0000

Carburetor Gasket

$1.99

$

In Stock, only 1 left!

0

67

Homelite 16003-Z100110-0000

Carburetor Insulator

$4.99

$

Usually ships in 3-7 days

0

68

Homelite 17002-Z100110-0000

Insulator Gasket

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 90685-Z030610

Clamp

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 90686-Z190910-0000

Fuel Tube

$12.99

$

Usually ships in 3-7 days

0

71

Homelite 30431-Z0Y0110-0000

Rubber Jacket

$2.49

$

Usually ships in 3-7 days

0

72

Homelite 28002-Z100210-0000

Starter Pulley

$14.99

$

Usually ships in 3-7 days

0

73

Homelite 19352-Z100210-0000

Impeller

$17.99

$

Usually ships in 3-7 days

0

74

Homelite 13510-Z220110-0000

Flywheel Assembly

$111.99

$

Usually ships in 3-7 days

0

75

Homelite 90001-0628-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

76

Homelite 30400-Z190110-0000

Ignition Coil

$27.99

$

In Stock, only 1 left!

0

77

Homelite 16520-Z101410-0000

Throttle Control Assembly

$12.99

$

In Stock, only 1 left!

0

78

Homelite 16012-Z080110-0000

Throttle Valve Return Spring

$1.99

$

In Stock, only 1 left!

0

79

Homelite 16062-Z100110-0000

GOVERNOR ROD

$2.49

$

Usually ships in 3-7 days

0

80

Homelite 16063-Z100510-0000

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

81

Homelite 16070-Z100120-0000

Governor Support Assembly

$

$

Not available

82

Homelite 16072-Z010110-0000

Governor Support Bolt,

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 291443003

Enginge Stop Switch

$12.99

$

In Stock, only 1 left!

0

84

Homelite 90305-0600-31

Governor Support Assembly

$2.49

$

Usually ships in 3-7 days

0

85

Homelite 518248003

Air Cleaner Bottom Cover

$58.99

$

Usually ships in 3-7 days

0

86

Homelite 17100-Z311010-0009

Air Cleaner

$38.99

$

Usually ships in 3-7 days

0

87

Homelite 678670007

Fuel Valve

$17.99

$

Usually ships in 3-7 days

0

88

Homelite 660465002

Screw (M4 x 10 mm, Phillips Pan Hd.)

$9.49

$

Usually ships in 3-7 days

0

89

Homelite 570358160

Fuel Hose (330 mm)

$15.99

$

In Stock, only 1 left!

0

90

Homelite 673156001

Washer (ID4.3 x OD10 x 0.9t)

$

$

Not available

91

Homelite 525361006

Control Lever (Grey)

$4.99

$

In Stock, only 1 left!

0

92

Homelite 638970004

Engine Switch Bracket

$3.49

$

In Stock, Qty 5

0

93

Homelite 60972028

Bolt (M6 x 10 mm, Pan Hd)

$

$

Currently unavailable

94

Homelite 13501-Z0801100-0000

Flywheel Nut

$

$

Currently unavailable

95

Homelite 590458022

Choke Lever (Grey)

$3.49

$

In Stock, only 1 left!

0

96

Homelite 678815011

Clamp (D7 x 0.8 mm)

$1.49

$

Usually ships in 3-7 days

0

97

Homelite 30431-Z010510-0000

Rubber Jacket

$1.99

$

Usually ships in 3-7 days

0

98

Homelite 661864011

Screw (St 2.9 x 16 mm, Pan Hd)

$2.99

$

Usually ships in 3-7 days

0

99

Homelite 35192-Z040110-0000

Micro Switch Wiring

$1.99

$

Usually ships in 3-7 days

0

Homelite 120968049

High Alt kit (3000-6000FT)

Note: Not Shown

$8.99

$

Usually ships in 3-7 days

0

Homelite 120968050

High Alt kit (6000-8000FT)

Note: Not Shown

$8.99

$

Usually ships in 3-7 days

0
