RY 905500 (090930295) - Ryobi Inverter Generator, Rev 05 (2018-09) Figure D Parts Diagram

Inverter Generator, Rev 05

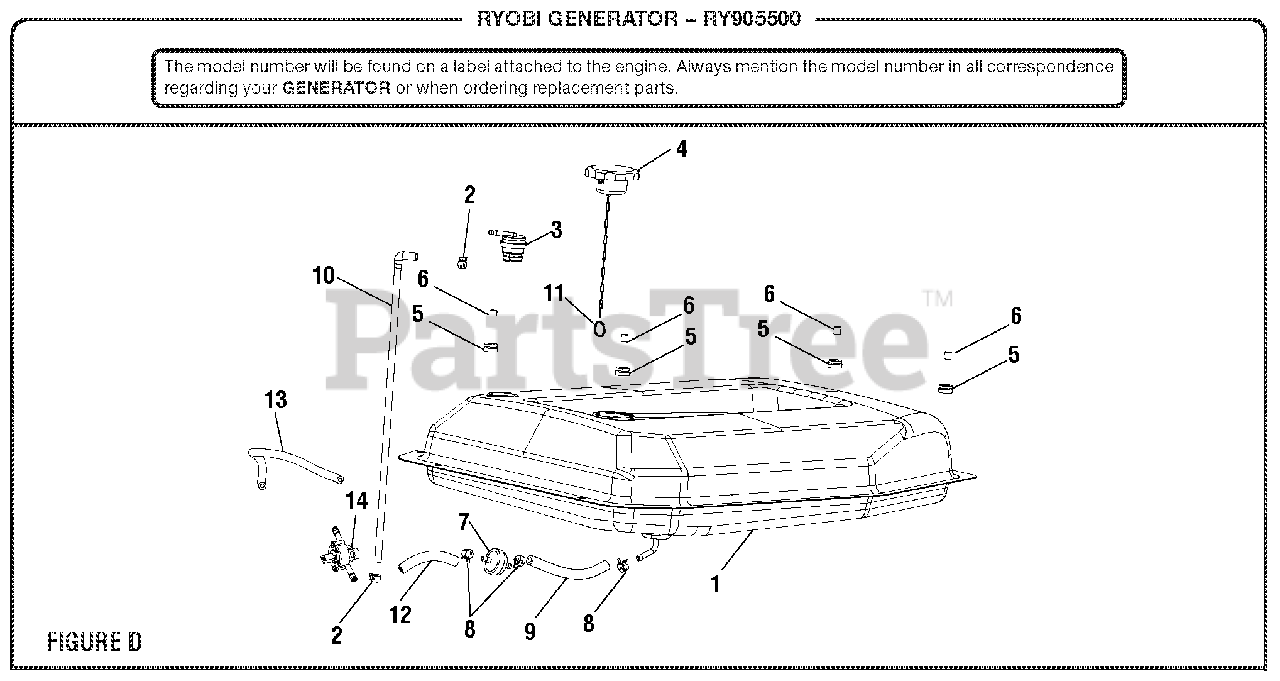

Figure D Parts Diagram

  • Title

1

Homelite 310711111

Fuel Tank

$231.99

$

Usually ships in 3-7 days

0

2

Homelite 678409003

Fuel Line Clamp (7/16 in.)

$1.99

$

In Stock, Qty 5

0

3

Homelite 310854006

Vapor Vent

$21.99

$

In Stock, only 1 left!

0

4

Homelite 310720026

Fuel Cap

$40.99

$

Usually ships in 3-7 days

0

5

Homelite 519832003

Bushing

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 518528002

Isolator

$

$

Not available

7

Homelite 308733001

Fuel Filter Inline (1/4 in.)
(Superseded to 308733008)

$7.49

$

In Stock, only 2 left!

0

8

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$3.49

$

In Stock, only 1 left!

0

9

Homelite 570358162

Fuel Hose (175 mm)

$13.99

$

Usually ships in 3-7 days

0

10

Homelite 570358163

Vapor Hose

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0

12

Homelite 570358161

Fuel Hose (85 mm)

$5.49

$

In Stock, only 1 left!

0

13

Homelite 570358160

Fuel Hose (330 mm)

$15.99

$

In Stock, only 1 left!

0

14

Homelite 678670007

Fuel Valve

$17.99

$

Usually ships in 3-7 days

0
