RY 905500 (090930295) - Ryobi Inverter Generator, Rev 03 (2016-11) Figure E Parts Diagram

Inverter Generator, Rev 03

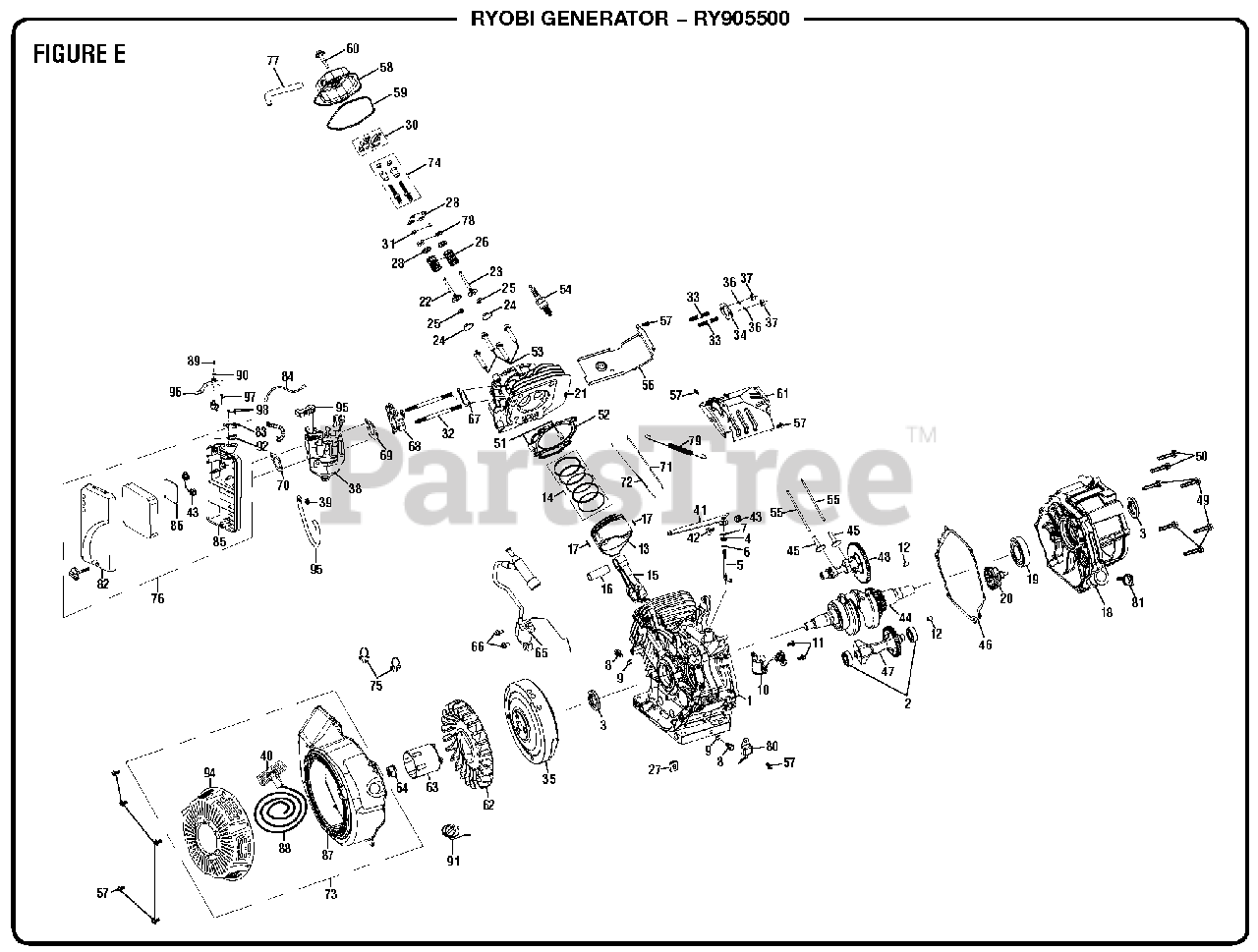

Figure E Parts Diagram

  • Title

1

Homelite D260220

Crankcase
(Superseded to DJ190F-11100-JE)

$221.99

$

Usually ships in 3-7 days

0

2

Homelite D93002

Ball Bearing

$5.49

$

Usually ships in 3-7 days

0

3

Homelite D93511

Oil Seal

$3.49

$

Usually ships in 3-7 days

0

4

Homelite D93514

Governor Arm Shaft Seal

$1.99

$

Usually ships in 3-7 days

0

5

Homelite D263901

Governor Arm Shaft

$2.99

$

Usually ships in 3-7 days

0

6

Homelite D96806

Governor Arm Shaft Washer

$1.99

$

Usually ships in 3-7 days

0

7

Homelite D263902

Lock Pin

$1.99

$

Usually ships in 3-7 days

0

8

Homelite D91817

Drain Plug Bolt

$2.49

$

Usually ships in 3-7 days

0

9

Homelite D94004

Drain Plug Washer

$2.49

$

Usually ships in 3-7 days

0

10

Homelite D265102

Oil Level Switch Assembly

$9.49

$

Usually ships in 3-7 days

0

11

Homelite D91329

Bolt (M6 x16 mm)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite D240901

Casecover Dowel Pin

$2.49

$

Usually ships in 3-7 days

0

13

Homelite D261205

Piston

$35.99

$

Usually ships in 3-7 days

0

14

Homelite D261604

Piston Scraper Ring Set
(Superseded to DJ190F-12300-C)

$

$

Not available

15

Homelite D261503

Connecting Rod Assembly

$43.99

$

Usually ships in 3-7 days

0

16

Homelite D265501

Piston Pin

$4.49

$

In Stock, only 1 left!

0

17

Homelite D261301

Piston Clip

$1.99

$

In Stock, only 2 left!

0

18

Homelite D260111

Crankcase Cover Assembly

$97.99

$

Usually ships in 3-7 days

0

19

Homelite D93015

Ball Bearing

$16.99

$

Usually ships in 3-7 days

0

20

Homelite D264301

Governor Assembly

$10.99

$

Usually ships in 3-7 days

0

21

Homelite D261002

Cylinder Head

$126.99

$

Usually ships in 3-7 days

0

22

Homelite D261702

In Valve

$9.49

$

In Stock, only 1 left!

0

23

Homelite D265903

Exhaust Valve

$10.99

$

In Stock, only 1 left!

0

24

Homelite D261807

Intake Valve Returner

$2.99

$

Usually ships in 3-7 days

0

25

Homelite D93513

Oil Seal Valve

$4.49

$

Usually ships in 3-7 days

0

26

Homelite D266002

Valve Spring

$1.99

$

In Stock, only 2 left!

0

27

Homelite D269901

Starter Assembly Rubber

$2.49

$

Usually ships in 3-7 days

0

28

Homelite D261805

Exhaust Valve Spring Seat

$3.49

$

Usually ships in 3-7 days

0

29

Homelite D262201

Push Rod Guide Plate

$2.49

$

Usually ships in 3-7 days

0

30

Homelite D262101

Rocker Assembly

$5.49

$

Usually ships in 3-7 days

0

31

Homelite D261806

Rotator

$2.99

$

Usually ships in 3-7 days

0

32

Homelite D91016

Stud Bolt

$1.99

$

Usually ships in 3-7 days

0

33

Homelite D91007

Stud Bolt

$2.99

$

Usually ships in 3-7 days

0

34

Homelite D96083

Exhaust Packing

$1.99

$

Usually ships in 3-7 days

0

35

Homelite D260401

Flywheel Assembly
(Superseded to D260407)

$

$

Not available

36

Homelite D94206

Spring Washer

$1.99

$

Usually ships in 3-7 days

0

37

Homelite D90011

Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite D262839

Carburetor Assembly

$69.99

$

Usually ships in 3-7 days

0

39

Homelite DF4000H-14008-C

Fuel Line Clip

$2.99

$

Usually ships in 3-7 days

0

40

DJ188f-16110-B

Starter Grip

$

$

Not available

41

Homelite D264001

Governor Arm

$4.49

$

Usually ships in 3-7 days

0

42

Homelite D91822

Governor Arm Bolt

$1.99

$

Usually ships in 3-7 days

0

43

Homelite D90016

Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite D260316

Crankshaft Assembly

$142.99

$

Usually ships in 3-7 days

0

45

Homelite D266101

Valve Lifter

$3.49

$

Usually ships in 3-7 days

0

46

Homelite D96072

Casecover Package

$9.49

$

In Stock, only 1 left!

0

47

Homelite D260301

Balancing Shaft

$32.99

$

Usually ships in 3-7 days

0

48

Homelite D262003

Camshaft Assembly

$56.99

$

Usually ships in 3-7 days

0

49

Homelite D91348

Bolt (M8 x 35 mm)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite D91349

Bolt (M8 x 40 mm)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite D260901

Dowel Pin

$2.49

$

Usually ships in 3-7 days

0

52

Homelite D96089

Cylinder Head Gasket

$8.49

$

In Stock, only 1 left!

0

53

Homelite D91321

Bolt (M10 x 80 mm)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite D97108

Spark Pulg
(Superseded to DJ168F-18500-A)

$8.49

$

Usually ships in 3-7 days

0

55

Homelite D261901

Push Rod

$2.99

$

Usually ships in 3-7 days

0

56

Homelite D260501

Shroud

$1.99

$

Usually ships in 3-7 days

0

57

Homelite D91325

Bolt (M6 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite D261104

Cylinder Head Cover Comp

$13.99

$

Usually ships in 3-7 days

0

59

Homelite D96075

Headcover Packing

$4.49

$

In Stock, only 1 left!

0

60

Homelite D91819

Lock Bolt

$3.49

$

Usually ships in 3-7 days

0

61

Homelite D264409

Upper Shroud Assembly

$14.99

$

Usually ships in 3-7 days

0

62

Homelite D264601

Recoil Starter Fan

$13.99

$

In Stock, only 1 left!

0

63

Homelite D264501

Starter Pulley

$5.99

$

Usually ships in 3-7 days

0

64

Homelite D90004

Nut

$1.99

$

Usually ships in 3-7 days

0

65

Homelite D97518

Ignition Coil Assembly

$35.99

$

Usually ships in 3-7 days

0

66

Homelite D91331

Bolt (M6 x 25 mm)

$1.49

$

Usually ships in 3-7 days

0

67

Homelite D96078

Intake Packing

$1.99

$

In Stock, only 1 left!

0

68

Homelite D262301

Carburetor Insulator

$2.99

$

In Stock, only 1 left!

0

69

Homelite D96081

Carburetor Packing

$1.99

$

In Stock, only 1 left!

0

70

Homelite D94227

Carburetor Spacer

$1.99

$

In Stock, only 4 left!

0

71

Homelite D262701

Governor Rod

$2.49

$

Usually ships in 3-7 days

0

72

Homelite D264201

Throttle Return Spring

$2.49

$

Usually ships in 3-7 days

0

73

Homelite D264729-164

Recoil Starter Assembly

$

$

Not available

74

Homelite D91818

Rocker Arm Adujuster

$4.49

$

In Stock, only 2 left!

0

75

Homelite D260801

Clip

$2.49

$

Usually ships in 3-7 days

0

76

Homelite D262922

Air Cleaner Assembly

$

$

Not available

77

Homelite D95622

Breather Tube

$1.99

$

Usually ships in 3-7 days

0

78

Homelite D260802

Locking Flaps

$1.99

$

Usually ships in 3-7 days

0

79

Homelite D264101

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

80

Homelite D245104

Amplifier

$5.49

$

Usually ships in 3-7 days

0

81

Homelite D265614

Dipstick

$3.49

$

Usually ships in 3-7 days

0

82

Homelite DJ188FD-14204-A

Air Cleaner Cover

$27.99

$

Usually ships in 3-7 days

0

83

Homelite 291443003

Switch Assembly

$12.99

$

In Stock, only 1 left!

0

84

Homelite D536408

Flameout Wire

$3.49

$

Usually ships in 3-7 days

0

85

Homelite 518248003

Air Cleaner Bottom Cover

$58.99

$

Usually ships in 3-7 days

0

86

Homelite DJ188FD-14202-A

Element Bracket

$4.49

$

In Stock, only 1 left!

0

87

Homelite D264729-164

Recoil Starter Comp

$

$

Not available

88

Homelite DJ188F-16111-A

Rope

$7.49

$

Usually ships in 3-7 days

0

89

Homelite 660465002

Screw (M4 x 10 mm)

$9.49

$

Usually ships in 3-7 days

0

90

Homelite 973156001

Washer

$

$

Currently unavailable

91

Homelite D536406

Switch Assembly

$10.99

$

In Stock, only 1 left!

0

92

Homelite 638970004

Engine Switch Bracket

$3.49

$

In Stock, Qty 5

0

93

Homelite 570358154

Fuel Hose (300 mm)

$12.99

$

Usually ships in 3-7 days

0

94

Homelite 636997001

Recoil cover

$101.99

$

Usually ships in 3-7 days

0

95

Homelite 590458022

Choke Lever (Grey)

$3.49

$

In Stock, only 1 left!

0

96

Homelite 525361006

Control Lever (Grey)

$4.99

$

In Stock, only 2 left!

0

97

Homelite 660972028

Bolt (M6 x 10 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

98

Homelite 661864011

Screw (St 2.9 x 16 mm, Pan Hd)

$2.99

$

Usually ships in 3-7 days

0

Homelite 120968004

High Alt Kit (DUCAR 420CC 2000-3,000 FT)
(Superseded to 120968043)

Note: Not Shown

$13.99

$

Usually ships in 3-7 days

0

Homelite 120968016

High Alt Kit (DUCAR 420CC 3000-5000 FT)

$

$

Not available

Homelite 120968017

High Alt Kit (DUCAR 420CC 5000-6000 FT)

$59.99

$

Usually ships in 3-7 days

0

Homelite 120968018

High Alt Kit (DUCAR 420CC 6000-7000 FT)

$59.99

$

Usually ships in 3-7 days

0
