RY 905500 (090930295) - Ryobi Inverter Generator, Rev 03 (2016-11) Figure B Parts Diagram

Inverter Generator, Rev 03

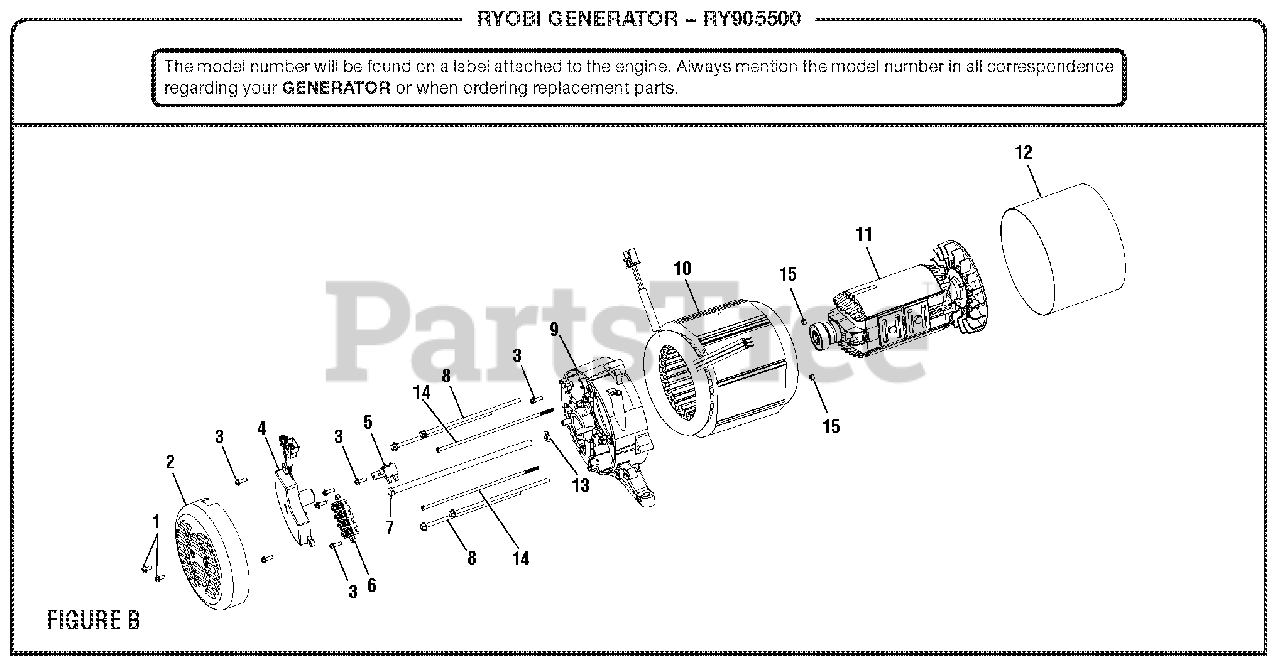

Figure B Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 290440010

Automatic Voltage Regulator

$73.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly

$

$

Not available

6

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

7

Homelite 661557026

Rotor Bolt (M8 x 220 mm)

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 661603019

Stator Bolt (M6 x 180 mm)

$4.49

$

Usually ships in 3-7 days

0

9

Homelite 678289008

Bearing Housing

$103.99

$

Usually ships in 3-7 days

0

10

Homelite 310771055

Stator Assembly

$

$

Not available

11

Homelite 310772056

Rotor Assembly

$

$

Not available

12

Homelite 638624022

Wrapper

$16.99

$

Usually ships in 3-7 days

0

13

Homelite 638678012

Rotor Washer

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 660938029

Bolt (M6 x 200 mm)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 690840002

Nut (M5)

$3.49

$

Usually ships in 3-7 days

0
