RY 903600 (090930278) - Ryobi Inverter Generator, Rev 10 (2017-12) Figure A Parts Diagram

Inverter Generator, Rev 10

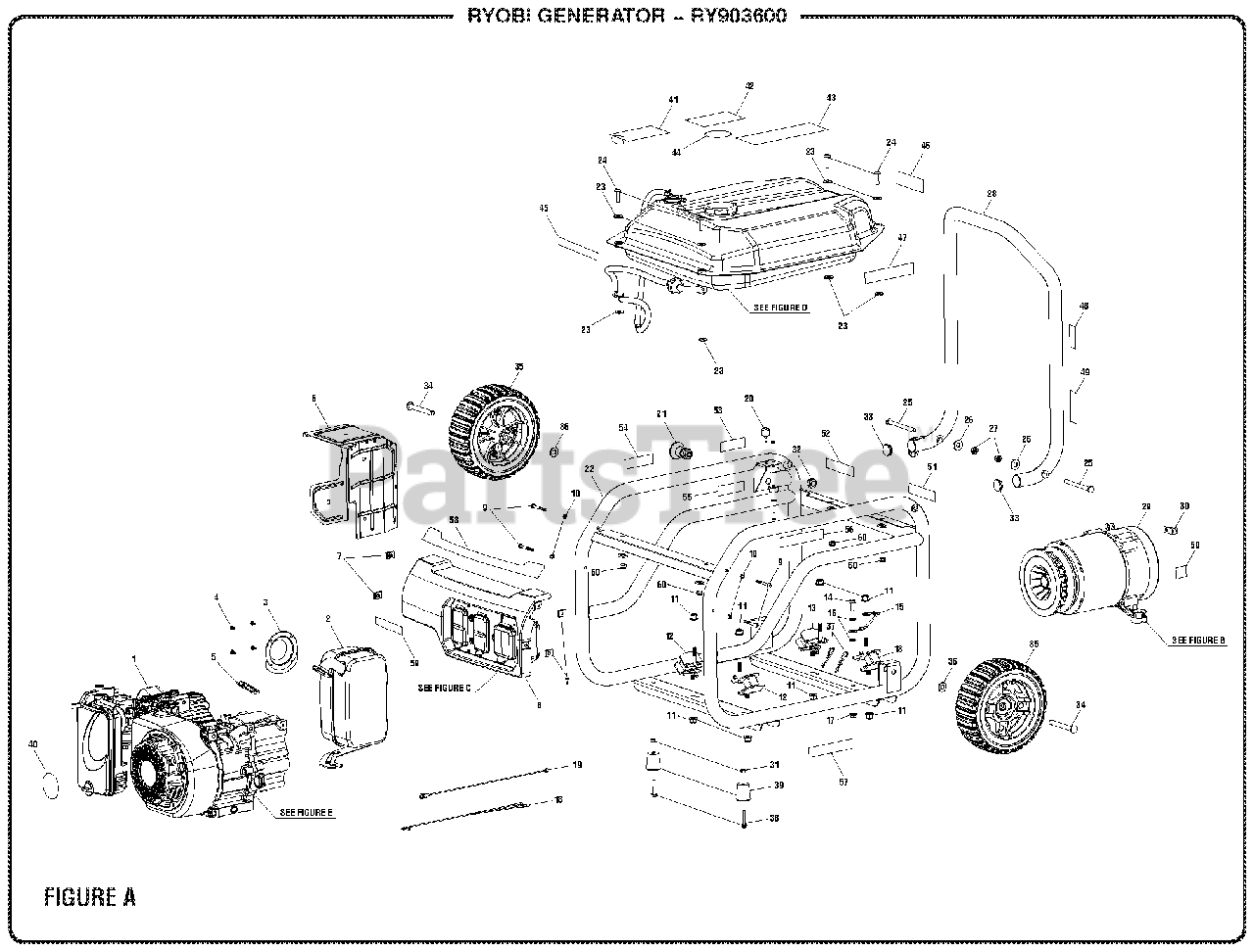

Figure A Parts Diagram

  • Title

1

Engine (Rato 212cc, 2015)

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer’s warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322040

Muffler

$137.99

$

Usually ships in 3-7 days

0

3

Homelite 638147003

Spark Arrester

$

$

Not available

4

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 678728005

Exhaust Gasket

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 638497043

Heat Shield

$57.99

$

Usually ships in 3-7 days

0

7

Homelite 678824004

U-Clip (M6)

$2.49

$

In Stock, only 1 left!

0

8

Homelite 290403075

Control Panel Assembly

$350.99

$

Usually ships in 3-7 days

0

9

Homelite 660224020

Screw (M5 x 35 mm)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 638623005

Washer (ID5.3 x OD10 x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 678774002

Lock Nut (M8)

$

$

Not available

12

Homelite 679940002

Isolator (Right)

$13.99

$

Usually ships in 3-7 days

0

13

Homelite 679940004

Isolator (Left)

$13.99

$

Usually ships in 3-7 days

0

14

Homelite 661502005

Bolt (5/16-18 X 0.75 in.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 290404001

Ground Wire Assembly

$

$

Not available

16

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 290405010

Wire Assembly (Black)

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 290427004

Wire Assembly (Green)

$5.99

$

Usually ships in 3-7 days

0

20

Homelite 570712006

Handle Bumper

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 308910010

Handle Release Pin

$

$

Not available

22

Homelite 308581167

Carrier Assembly

$226.99

$

Usually ships in 3-7 days

0

23

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

24

Homelite 660901003

Screw (1/4-20 x 1 in., T30 Torx Hd.)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 678522027

Handle Pivot Bolt

$

$

Not available

26

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

27

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 310224078

Handle

$82.99

$

Usually ships in 3-7 days

0

29

Homelite 310227070

Generator Head Assembly

$564.99

$

Usually ships in 3-7 days

0

30

Homelite 638703006

Ground Lug

$

$

Not available

31

Homelite 678774003

Lock Nut (M8)

$2.49

$

In Stock, Qty 5

0

32

Homelite 678518002

Lock Nut (1/2-20)

$4.99

$

Usually ships in 3-7 days

0

33

Homelite 519712002

End Cap

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 681866004

Axle Bolt

$16.99

$

Usually ships in 3-7 days

0

35

Homelite 308451034

Wheel

$74.99

$

Usually ships in 3-7 days

0

36

Homelite 638422004

Washer (M10)

$

$

Not available

37

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 661836007

Bolt (M8 x 45 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 562856010

Foot

$

$

Not available

40

Homelite 940633044

Recoil Label

$4.99

$

Usually ships in 3-7 days

0

41

Homelite 940971087

Notice Hangtag

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940654254

Warning Label

$8.49

$

Usually ships in 3-7 days

0

43

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

44

Homelite 940872022

Fuel Stabilizer Label

$

$

Not available

45

Homelite 940705279

Logo Label

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 940947003

Combustion Warning Label

$

$

Not available

47

Homelite 940617154

Start Label

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 940872024

Fuel Stabilizer Label (SP/FR)

$

$

Not available

49

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

50

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 940513029

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940974007

Fire Danger Label

$

$

Not available

53

Homelite 940758005

Pin Release Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 941486008

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 940974089

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 940708019

Lubricant Label

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940779150

Performance Label

$2.99

$

Usually ships in 3-7 days

0

59

Homelite 940647117

Choke Label

$2.99

$

Usually ships in 3-7 days

0

60

Homelite 678016002

Lock Nut (1/4-20)

$1.49

$

In Stock, only 2 left!

0

Homelite 991000476

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000477

Quick Reference Guide

$3.49

$

Usually ships in 3-7 days

0

Homelite 120302016

Hardware Kit

$62.99

$

Usually ships in 3-7 days

0
