RY 903600 (090930278) - Ryobi Inverter Generator, Rev 08 (2017-01) Figure C Parts Diagram

Inverter Generator, Rev 08

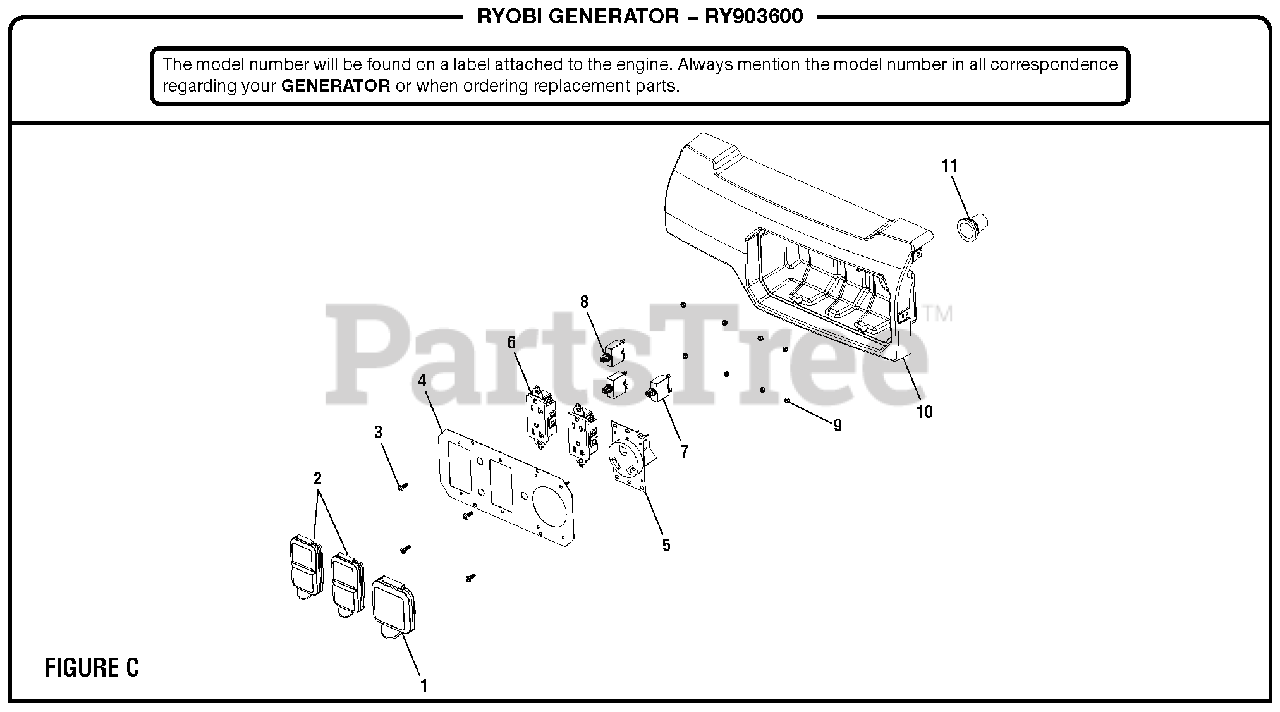

Figure C Parts Diagram

  • Title
1

Homelite 570412013

Outlet Cover

$11.99

$

Usually ships in 3-7 days

0

2

Homelite 570412008

Duplex Outlet Cover

$12.99

$

Usually ships in 3-7 days

0

3

Homelite 661864006

Screw (M4.2 x 12 mm Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 638496039

Front Panel

$45.99

$

Usually ships in 3-7 days

0

5

Homelite 290400009

Receptacle (120V)

$46.99

$

Usually ships in 3-7 days

0

6

Homelite 290400017

Duplex Receptacle (120V)

$

$

Not available

7

Homelite 780351001

Circuit Breaker (30 Amp)

$

$

Not available

8

Homelite 780350001

Circuit Breaker (20 Amp)

$

$

Not available

9

Homelite 678720001

Lock Nut (#6-32)

$1.49

$

In Stock, only 4 left!

0

10

Homelite 519815008

Control Box (Back Panel)

$74.99

$

Usually ships in 3-7 days

0

11

Homelite 570766006

Rubber Boot

$179.99

$

Usually ships in 3-7 days

0
