RY 80533 (090079246) - Ryobi Pressure Washer General Assembly (Part 1) Parts Diagram

Pressure Washer

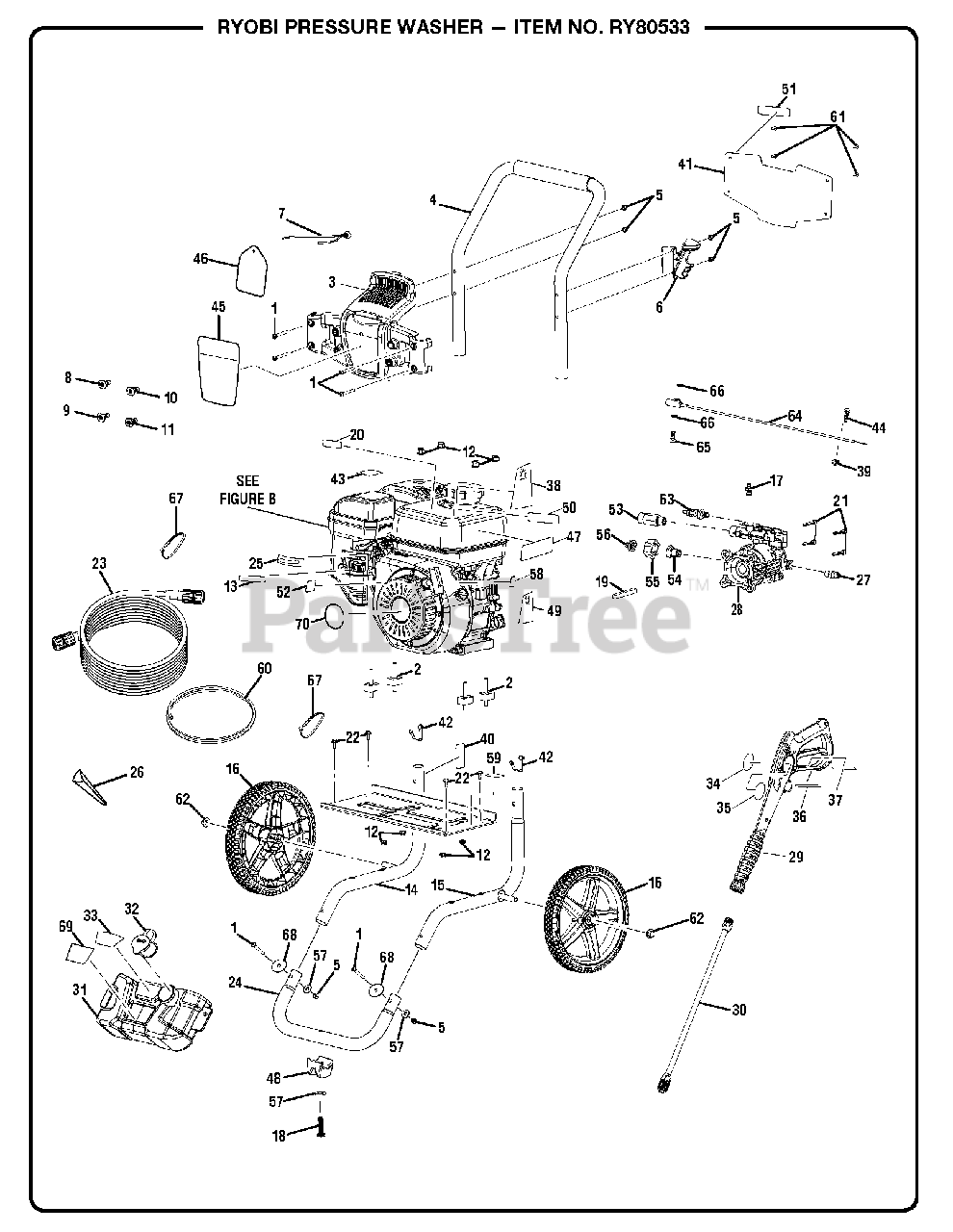

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 570554005

Engine Isolator

$

$

Not available

3

Homelite 310673006

Hose and Nozzle Holder Assembly

Note: (Inc. Key 7)

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$47.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313009

Wand Holder

$

$

Not available

7

Homelite 310664001

Bungee Cord Assembly

$3.99

$

In Stock, only 3 left!

0

8

Homelite 308700030

40 deg Nozzle

$18.99

$

Usually ships in 3-7 days

0

9

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

10

Homelite 308699029

25 deg Nozzle

$8.99

$

Usually ships in 3-7 days

0

11

Homelite 308697029

0 deg Nozzle

$8.99

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Homelite 941709001

Fuel On-Off Label

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 310703021

Main Frame Assembly

Note: (Left, Inc. Key No. 42)

$27.99

$

Usually ships in 3-7 days

0

15

Homelite 310704024

Main Frame Assembly

Note: (Right, Inc. Key No. 42)

$27.99

$

Usually ships in 3-7 days

0

16

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

17

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

18

Homelite 660224009

Bolt (M6 x 25 mm, T30 Torx Hd.)

$

$

Not available

19

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940899003

Do Not Mix Label

$

$

Not available

21

Homelite 660739002

Bolt (5/16-24 x 23 mm, Soc.Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 661505020

Flange Bolt (M6 x 16 mm)

$

$

Not available

23

Homelite 308835006

Hose (25 ft.)

$58.99

$

Usually ships in 3-7 days

0

24

Homelite 310742026

Front Frame

Note: (Incs. Key No. 18, 48 & 57)

$

$

Not available

25

Homelite 940647083

Choke Label

$

$

Not available

26

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653069

Pump

$288.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Keys 35 & 37)

$46.99

$

Usually ships in 3-7 days

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 580875015

Soap Tank
(Superseded to 580875008)

$

$

Not available

32

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

33

Homelite 941608003

Soap Dilution Label

$1.99

$

In Stock, only 1 left!

0

34

Homelite 940786035

Label (Wand Logo)

$2.99

$

Usually ships in 3-7 days

0

35

Homelite 940654084

Warning Label (En)

$2.99

$

In Stock, only 1 left!

0

36

Homelite 940654228

Warning Label (Fr/Sp)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 940786020

Label (Wand Rating)
(Superseded to 940786006)

$

$

Not available

38

Homelite 940473012

Danger Hangtag

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 524014001

Cable Clamp

$

$

Not available

40

Homelite 940947003

Combustion Warning Label

$

$

Not available

41

Homelite 524408020

Quick Start Panel

$10.99

$

Usually ships in 3-7 days

0

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 660938003

Bolt (M5 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

45

Homelite 940779117

Performance Label

$

$

Currently unavailable

46

Homelite 961039005

Nozzle Hangtag

$

$

Not available

47

Homelite 940894004

Danger Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 561307007

Rubber Foot

$

$

Not available

49

Homelite 940889002

Dipstick Hangtag

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

51

Homelite 941486008

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 940647084

Fuel Valve Label

$

$

Not available

53

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

54

Homelite 642058001

Spindle

$4.49

$

Usually ships in 3-7 days

0

55

Homelite 310993003

Collar

$5.49

$

Usually ships in 3-7 days

0

56

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

57

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

58

Homelite 940708018

Engine On/Off Label

$

$

Not available

59

Homelite 940871010

Oil Fill Location Label

$

$

Not available

60

Homelite 561399010

Chemical Siphon Tube

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 660923016

Screw (#6-20)

$2.99

$

Usually ships in 3-7 days

0

62

Homelite 679957001

Push Cap Nut

$

$

Not available

63

Homelite 310924003

Unloader Valve Assembly

$30.99

$

In Stock, only 1 left!

0

64

Homelite 310437012

Idle Down Throttle Valve Assembly

$

$

Not available

65

Homelite 660971005

Bolt (M10 x 1-1/2, Banjo)

$6.49

$

Usually ships in 3-7 days

0

66

Homelite 310928001

Bonded Compression Seal
(Superseded to 310928002)

$

$

Not available

67

Homelite 900333015

Wire Tie

$

$

Not available

68

Homelite 638128022

Fender Washer (1/4 in.)

$

$

Not available

69

Homelite 940705228

Soap Tank Label

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940633032

Recoil Label

$

$

Currently unavailable

Homelite 120900147

Pump Protector (4 oz., Not Included)

Note: Not Shown

$

$

Not available

Homelite 991000510

Operator's Manual (Mfg. No. 090079246)

Note: Not Shown

$

$

Currently unavailable

Homelite 991000511

Quick Start Guide (Mfg. No. 090079246)

Note: Not Shown

$

$

Currently unavailable

Homelite 991000512

Operator's Manual (Mfg. No. 090079271)

Note: Not Shown

$

$

Currently unavailable

Homelite 991000513

Quick Start Guide (Mfg. No. 090079271)

Note: Not Shown

$

$

Currently unavailable
