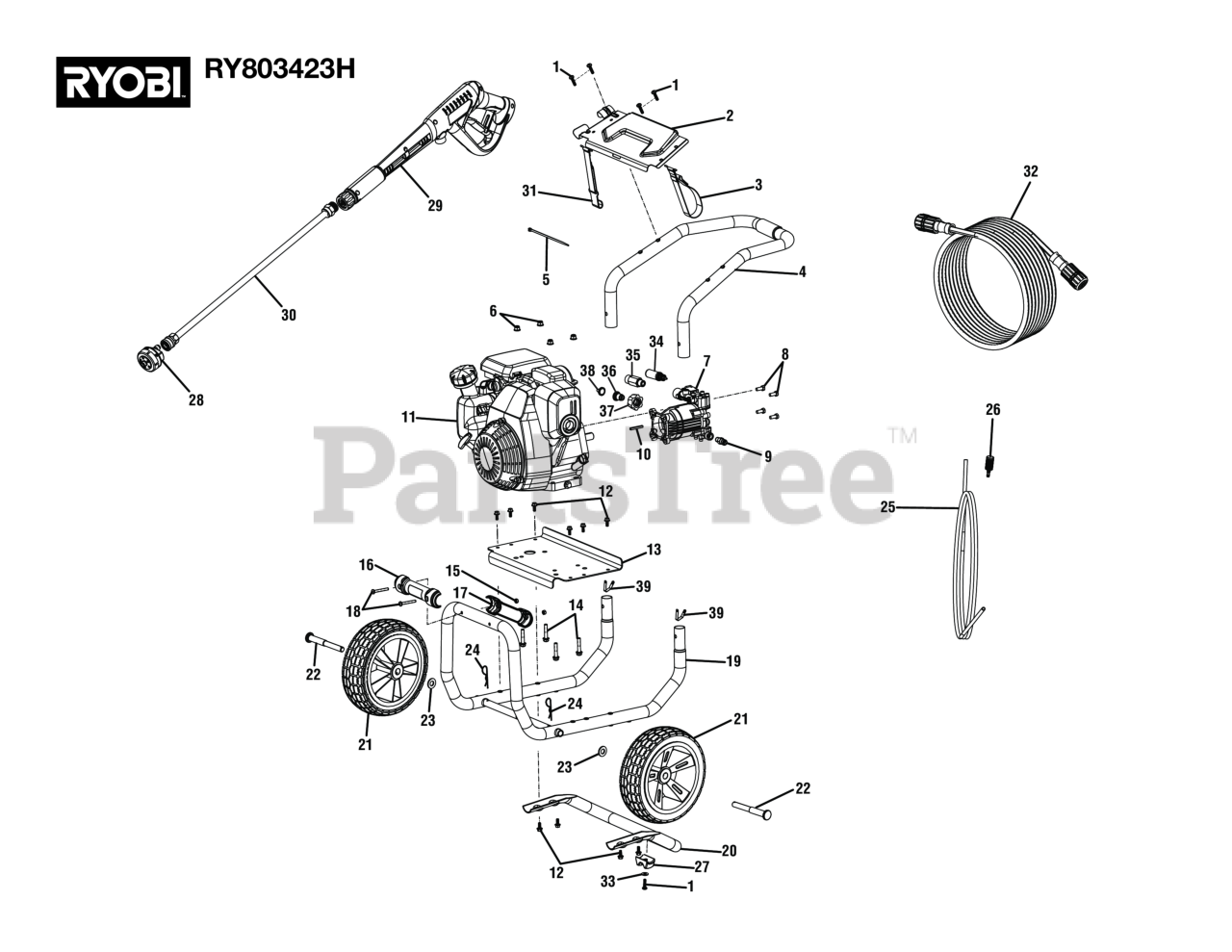

RY 803423 H (090079505) - Ryobi 3400 PSI Pressure Washer, Rev 01 (2021-07) General Assembly Parts Diagram

3400 PSI Pressure Washer, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 660224009

Screw (M6 x 1.25in., T30 Torx Pan Hd.)

$

$

Not available

2

Homelite 638671028

Performance Panel

$

$

Currently unavailable

3

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

4

Homelite 308638073

Handle Assembly

$33.99

$

Usually ships in 3-7 days

0

5

Homelite 900333015

Cable Tie

$

$

Not available

6

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

7

Homelite 308653114

Pump

$

$

Currently unavailable

8

Homelite 661557001

Bolt (5/16-24 x 3/4 in., Hex Hd.)

$8.99

$

Usually ships in 3-7 days

0

9

Homelite 678169004

Thermal Release Valve.

$

$

Not available

10

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

11

Engine

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

12

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

13

Homelite 638662029

ENGINE PLATE

$

$

Not available

14

Homelite 660764002

Bolt (M8 x 1.25 x 40 mm, Flange Hd.)

$

$

Not available

15

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

16

Homelite 522951003

Handle Grip (Front)

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 522951004

Handle Grip (Back)

$3.99

$

Usually ships in 3-7 days

0

18

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 308471053

Main Frame Assembly

$49.99

$

Usually ships in 3-7 days

0

20

Homelite 308774006

Rear Frame Assembly

$24.99

$

Usually ships in 3-7 days

0

21

Homelite 308451083

Wheel

$60.99

$

Usually ships in 3-7 days

0

22

Homelite 620599044

Axle

$9.49

$

In Stock, only 1 left!

0

23

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, only 1 left!

0

24

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 561399003

Detergent Injection Tube

$2.99

$

Usually ships in 3-7 days

0

26

Homelite 308103015

Detergent Injection Filter

$2.49

$

In Stock, Qty 5

0

27

Homelite 561307007

Rubber Foot

$

$

Not available

28

Homelite 310448028

5-in-1 Nozzle

$

$

Currently unavailable

29

Homelite 308760087

Trigger Handle (Inc. Key Nos. 61-64)

$71.99

$

Usually ships in 3-7 days

0

30

Homelite 308506014

Extension Wand

$

$

Not available

31

Homelite 308350006

Surface Cleaner Hanger Adjustable Strap

$10.99

$

Usually ships in 3-7 days

0

32

Homelite 308835121

High Pressure Hose

$

$

Currently unavailable

33

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

34

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

35

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

36

Homelite 642058001

Inlet Filter Connector

$4.49

$

In Stock, only 1 left!

0

37

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$5.49

$

In Stock, only 1 left!

0

38

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

39

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

Homelite 998000383

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 308999073

Surface Cleaner

Note: Not Shown

$

$

Currently unavailable
