RY 803300 H (090079430) - Ryobi Pressure Washer, Rev 01 (2019-02) FIGURE A Parts Diagram

Pressure Washer, Rev 01

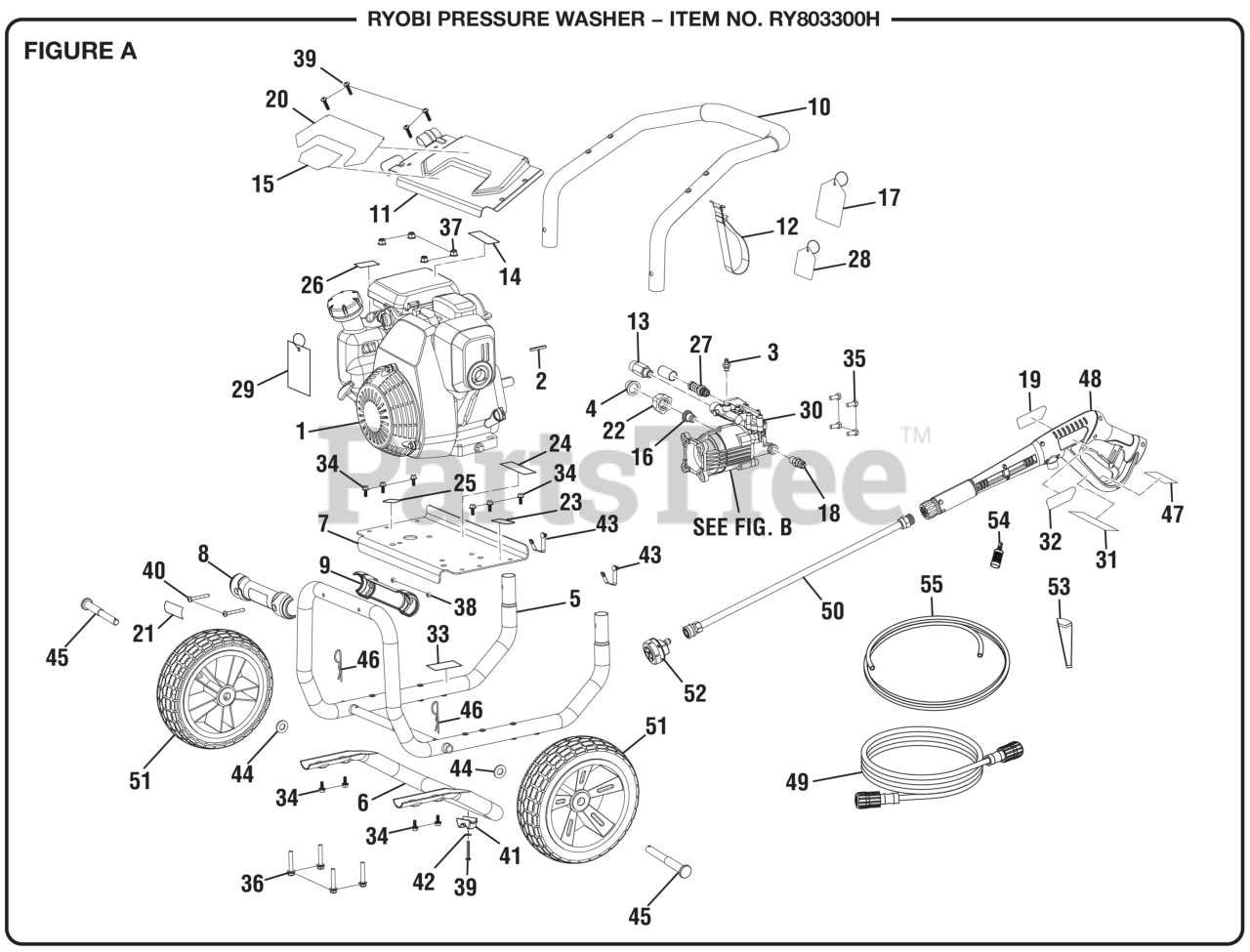

FIGURE A Parts Diagram

  • Title

1

Engine (Subaru EA190)

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308452002

Detergent Injector Assembly

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

5

Homelite 308471053

Main Frame Assembly

Note: (Inc. Key No. 43)

$49.99

$

Usually ships in 3-7 days

0

6

Homelite 308774006

Rear Frame Assembly

Note: Inc. Key Nos. 39 & 41-42)

$24.99

$

Usually ships in 3-7 days

0

7

Homelite 638662029

ENGINE PLATE

$

$

Not available

8

Homelite 522951003

Handle Grip (Front)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 522951004

Handle Grip (Back)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 308638073

Handle Assembly

$33.99

$

Usually ships in 3-7 days

0

11

Homelite 638671023

Performance Panel

$

$

Currently unavailable

12

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

13

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

14

Homelite 940851409

Hot Surface and

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 940851508

Performance Label

$

$

Currently unavailable

16

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$5.49

$

In Stock, only 1 left!

0

17

Homelite 918016034

Quick Start Hangtag

$

$

Currently unavailable

18

Homelite 678169004

Thermal Release Valve.

$

$

Not available

19

Homelite 940851520

LABEL, TRIGGER HANDLE LOGO

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 940851507

Logo Label (Performance Panel)

$

$

Currently unavailable

21

Homelite 940851418

Throttle Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 642058001

Inlet Filter Connector

$4.49

$

In Stock, only 1 left!

0

23

Homelite 940871016

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940947016

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 940894022

Danger Label

$

$

Not available

26

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

27

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

28

Homelite 941609001

5- In- 1 Nozzle Hangtag

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 940851346

Danger Hangtag

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 308653099

Pump

$

$

Currently unavailable

31

Homelite 940851446

LABEL, TRIGGER HANDLE RATING, EN FR SP

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 940654083

Trigger Handle Warning Label (English)

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 940676024

Warning Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

35

Homelite 661557001

Bolt (5/16-24 x 3/4 in., Hex Hd.)

$8.99

$

Usually ships in 3-7 days

0

36

Homelite 660764002

Bolt (M8 x 1.25 x 40 mm, Flange Hd.)

$

$

Not available

37

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

38

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

39

Homelite 660224009

Screw (M6 x 1.25in., T30 Torx Pan Hd.)

$

$

Not available

40

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 561307007

Rubber Foot

$

$

Not available

42

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

43

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

44

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, only 1 left!

0

45

Homelite 620599044

Axle

$9.49

$

In Stock, only 1 left!

0

46

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 308760070

Trigger Handle Assembly

Note: (Inc. Key Nos. 31-32 & 47)

$

$

Not available

49

Homelite 308835101

HOSE, M22, 35', 1/4"", GREEN

$91.99

$

In Stock, only 1 left!

0

50

Homelite 308506014

Extension Wand

$

$

Not available

51

Homelite 308451083

Wheel

$60.99

$

Usually ships in 3-7 days

0

52

Homelite 310448021

5-in-1 change over nozzle

$46.99

$

Usually ships in 3-7 days

0

53

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 308103015

Detergent Injection Filter

$2.49

$

In Stock, Qty 5

0

55

Homelite 561399003

Detergent Injection Tube

$2.99

$

Usually ships in 3-7 days

0

Homelite 900333015

Cable Tie

Note: Not Shown

$

$

Not available

Homelite 995000726

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 995000727

Quick Reference Guide

Note: Not Shown

$

$

Currently unavailable
