RY 803223 VNM (095079699) - Ryobi 3200 PSI Pressure Washer, Rev 01 (2021-08) General Assembly Parts Diagram

3200 PSI Pressure Washer, Rev 01

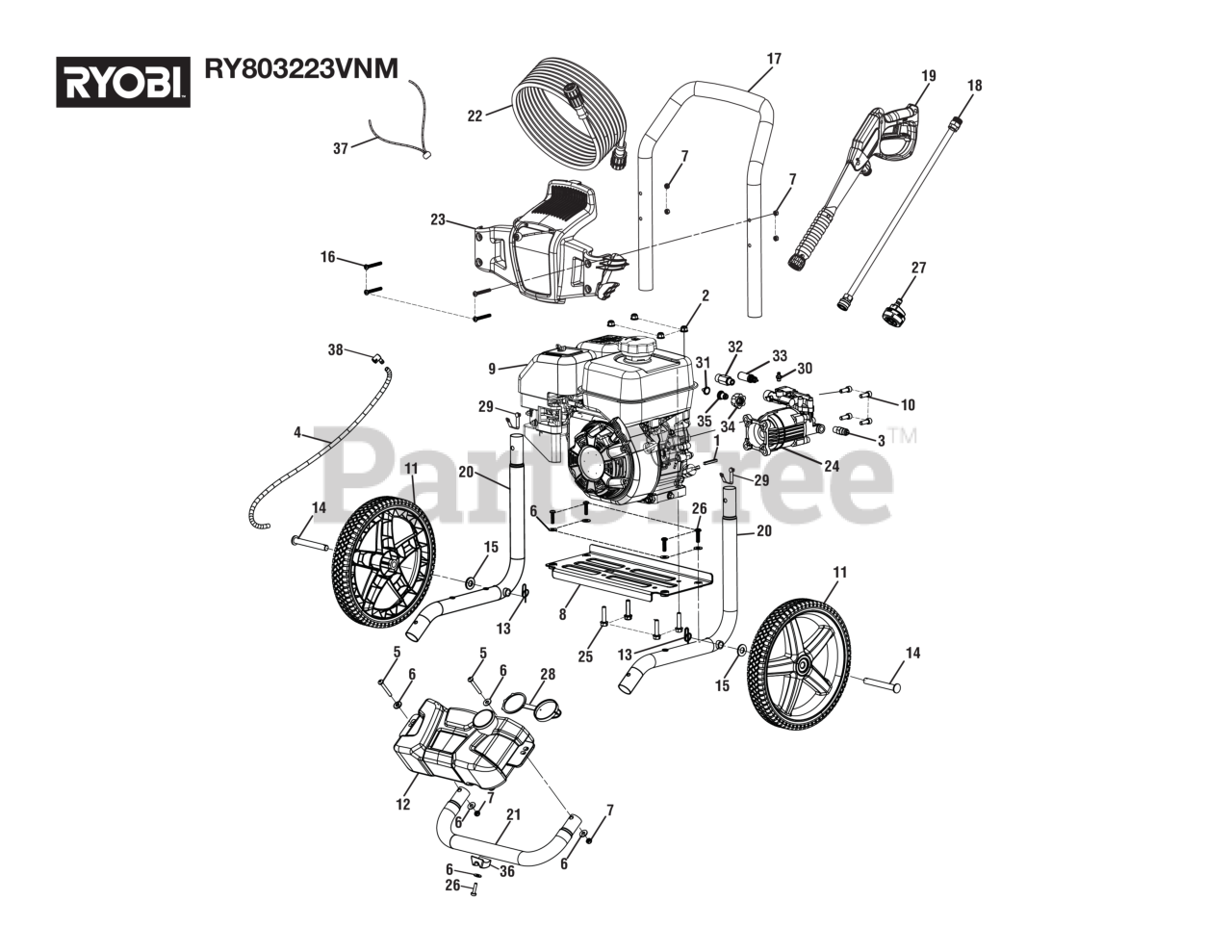

General Assembly Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

3

Homelite 678169004

Thermal Release Valve.

$

$

Not available

4

Homelite 561399017

Chemical Siphon Tube

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

7

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

8

Homelite 638662056

Engine Plate

$52.99

$

Usually ships in 3-7 days

0

9

Motor Assembly

Note: Note A

$

$

Not available

10

Homelite 660739002

Screw (5/16-24 x 23 mm, Hex Soc. Cap Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 308451067

Wheel

$24.99

$

Usually ships in 3-7 days

0

12

Homelite 580875015

Soap Tank
(Superseded to 580875008)

$

$

Not available

13

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

14

Homelite 620599034

Axle

$3.99

$

In Stock, only 1 left!

0

15

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, only 1 left!

0

16

Homelite 661834008

Bolt (M6 x 48 mm, Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 308638092

Handle Assembly

$37.99

$

Usually ships in 3-7 days

0

18

Homelite 308506014

Extension Wand

$

$

Not available

19

Homelite 308760061

Trigger Handle

$

$

Not available

20

Homelite 310703046

Frame Assembly

$35.99

$

Usually ships in 3-7 days

0

21

Homelite 310742040

Front Frame Assembly (Inc. Key No. 33)

$25.99

$

Usually ships in 0 days

0

22

Homelite 308835116

Hose (35 ft.)

$89.99

$

Usually ships in 3-7 days

0

23

Homelite 310673040

Performance Panel

$28.99

$

Usually ships in 3-7 days

0

24

Homelite 314961010

Pump (Inc. Key Nos. 57-62)

$433.99

$

Usually ships in 3-7 days

0

25

Homelite 661505005

Bolt (M8 x 36 mm, Hex Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660224009

Screw (M6 x 1.25in., T30 Torx Pan Hd.)

$

$

Not available

27

Homelite 310448027

5-in-1 Nozzle

$

$

Currently unavailable

28

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

29

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

30

Homelite 308452002

Detergent Injector Assembly

$5.99

$

Usually ships in 3-7 days

0

31

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

32

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

33

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

34

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$5.49

$

In Stock, only 1 left!

0

35

Homelite 642058001

Inlet Filter Connector

$4.49

$

In Stock, only 1 left!

0

36

Homelite 561307007

Rubber Foot

$

$

Not available

37

Homelite 310664001

Bungee Cord and Bead Assembly

$3.99

$

Usually ships in 3-7 days

0

38

Homelite 529062002

Soap Hose Inlet Adapter

$

$

Not available

Homelite 998000456

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
