RY 803111 (090079288) - Ryobi Pressure Washer, Rev 01 (2017-10) General Assembly (Part 1) Parts Diagram

Pressure Washer, Rev 01

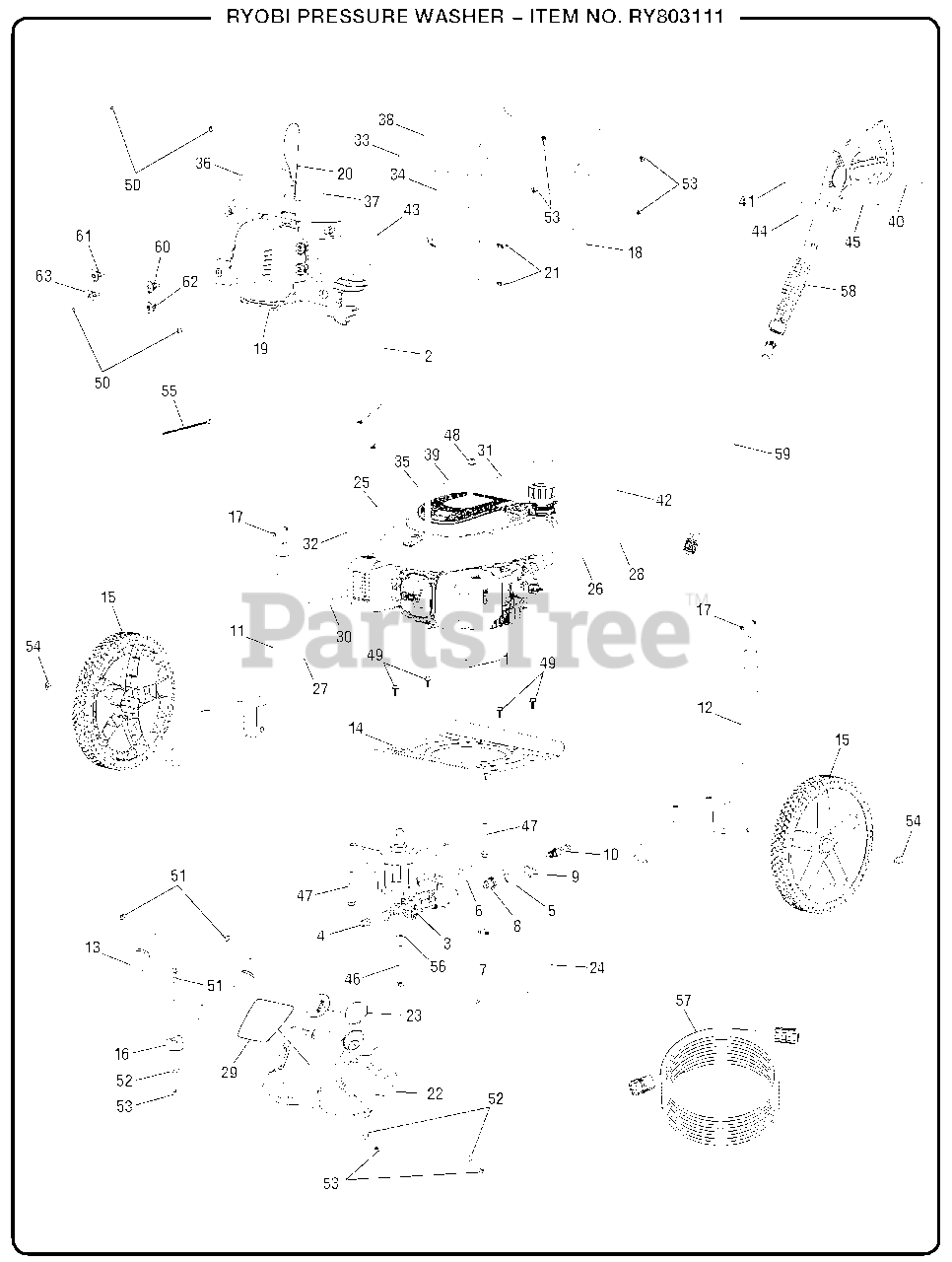

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 678041006

Output Shaft Key

$13.99

$

In Stock, only 1 left!

0

2

Homelite 290435053

Wire Harness

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 308653072

Pump

Note: (Incl. Key Nos. 5-10)

$

$

Not available

4

Homelite 678169004

Thermal Release Valve.

$

$

Not available

5

Homelite 310993003

Inlet Filter Adapter

$5.49

$

In Stock, only 1 left!

0

6

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

7

Homelite 308452002

Soap Injector Kit

$5.99

$

Usually ships in 3-7 days

0

8

Homelite 642058001

Inlet Filter Connector

$4.49

$

In Stock, only 1 left!

0

9

Homelite 308662001

Filter Screen

$

$

Not available

10

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

11

Homelite 310703012

Frame Assembly

Note: (Left, Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

12

Homelite 310704013

Frame Assembly

Note: (Right, Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

13

Homelite 310742028

Frame Assembly

Note: (Incl. Key Nos. 16 and 51-53)

$37.99

$

Usually ships in 3-7 days

0

14

Homelite 638662037

Engine Plate

$26.99

$

Usually ships in 3-7 days

0

15

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

16

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308421004

Spring Clip

$

$

Not available

18

Homelite 308638067

Handle Assembly

$31.99

$

Usually ships in 3-7 days

0

19

Homelite RY3111BB

Panel Assembly

$66.99

$

Usually ships in 3-7 days

0

20

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 3 left!

0

21

Homelite 518650002

Clamp

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 580875014

Detergent Tank

$13.99

$

In Stock, only 2 left!

0

23

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

24

Homelite 570728009

Detergent Injection Hose
(Superseded to 561399003)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 940872025

Add Oil Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 940913002

Choke Label

$

$

Not available

27

Homelite 940947016

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 940894031

Danger Label

$

$

Not available

29

Homelite 941608016

Detergent Tank Label

$

$

Not available

30

Homelite 940638044

Dipstick Hangtag

$

$

Not available

31

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

32

Homelite 940680073

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 941486008

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 961039005

Nozzle Hangtag

$

$

Not available

35

Homelite 940698049

On/Off Label

$3.99

$

Usually ships in 3-7 days

0

36

Homelite 941851005

Performance Label (PSI)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 940779191

Performance Label (GPM)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 940473036

Quick Start Hangtag

$

$

Not available

39

Homelite 941657010

Shroud Label

$

$

Not available

40

Homelite 940654228

Trigger Handle Warning Label (Fr/Sp)

$2.99

$

Usually ships in 3-7 days

0

41

Homelite 940786035

Trigger Handle Logo Label

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 940473012

Danger Hangtag

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941179001

Battery Connection Label

$3.99

$

Usually ships in 3-7 days

0

44

Homelite 940654084

Trigger Handle Warning Label (Eng)

$2.99

$

In Stock, only 1 left!

0

45

Homelite 940786047

Trigger Handle Specification Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 660962022

Bolt (M8 x 65 mm, Hex Hd.)

$

$

Currently unavailable

47

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$1.99

$

In Stock, Qty 5

0

48

Homelite 678774002

Lock Nut (M8, Flange Hd.)

$

$

Not available

49

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$

$

Not available

50

Homelite 661834004

Bolt (M6 x 42 mm, T-30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 661503015

Screw (M6 x 48 mm, T-30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

53

Homelite 678610006

Lock Nut (M6)

$

$

Not available

54

Homelite 679957001

Push Cap Nut

$

$

Not available

55

Homelite 900333015

Wire Tie

$

$

Not available

56

Homelite 638128008

Washer (5/16 in.)

$

$

Not available

57

Homelite 308835006

High Pressure Hose

$58.99

$

Usually ships in 3-7 days

0

58

Homelite 308760019

Trigger Handle Assembly

Note: (Incl. Key Nos. 44-45)

$46.99

$

Usually ships in 3-7 days

0

59

Homelite 308506014

Spray Wand

$

$

Not available

60

Homelite 308697028

0deg Nozzle

$7.99

$

In Stock, only 1 left!

0

61

Homelite 308699028

25deg Nozzle

$7.99

$

In Stock, only 1 left!

0

62

Homelite 308700028

40deg Nozzle

$7.99

$

In Stock, only 1 left!

0

63

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

Homelite 991000754

Operator's Manual (RY803111)

Note: NOT SHOWN

$

$

Not available

Homelite 991000755

Quick Start Guide (RY803111)

$2.99

$

Usually ships in 3-7 days

0

Homelite 990000184

Operator's Manual (P102/P105)

$1.60

$

Usually ships in 3-7 days

0

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0
