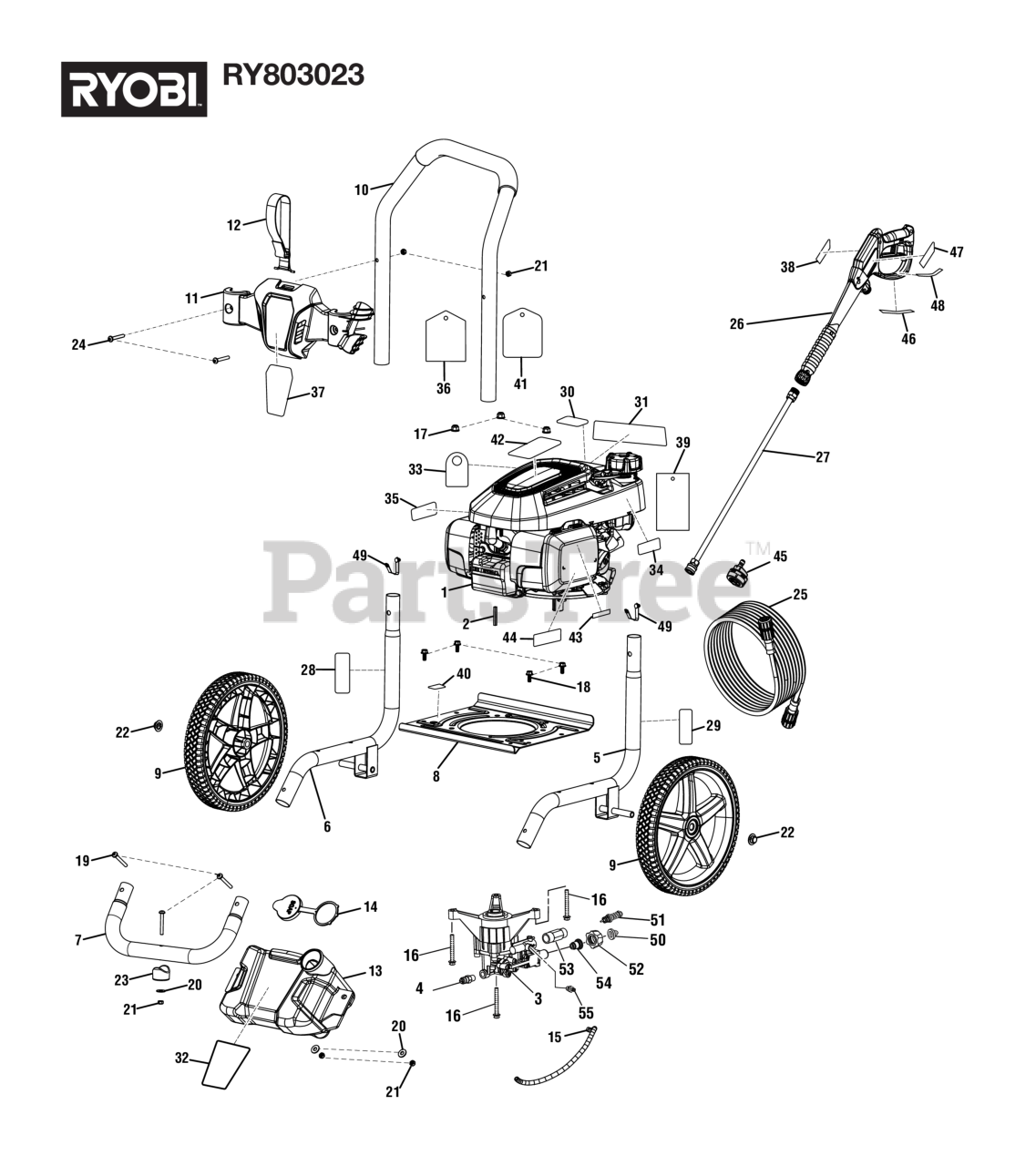

RY 803023 (090079512) - Ryobi 3200 PSI Pressure Washer, Rev 01 (2021-06) General Assembly Parts Diagram

3200 PSI Pressure Washer, Rev 01

General Assembly Parts Diagram

  • Title

1

Engine

Note: Note A: Techtronic Industries Power Equipment will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 314961001

Pump (Inc. Key Nos. 50-55)

$

$

Currently unavailable

4

Homelite 678169004

Thermal Release Valve.

$

$

Not available

5

Homelite 310703012

Main Frame Assembly (Left, Inc. Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

6

Homelite 310704013

Main Frame Assembly (Right, Inc. Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

7

Homelite 310742028

Frame Assembly (Front)

Note: (Inc. Key Nos. 19-21 & 23)

$37.99

$

Usually ships in 3-7 days

0

8

Homelite 638662037

Engine Plate

Note: (Inc. Key No. 40)

$26.99

$

Usually ships in 3-7 days

0

9

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

10

Homelite 308638060

Handle Assembly w/ Foam Grip

$31.99

$

Usually ships in 3-7 days

0

11

Homelite 518790040

PERFORMANCE PANEL, W/ WAND HOLDER

Note: (Inc. Key No. 37)

$7.99

$

Usually ships in 3-7 days

0

12

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 3 left!

0

13

Homelite 580875014

Detergent Tank

Note: (Inc. Key No. 32)

$13.99

$

In Stock, only 2 left!

0

14

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

15

Homelite 570728009

Detergent Injection Hose
(Superseded to 561399003)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 660962003

Flange Bolt (M8 x 1.25 x 60 mm, Hex Hd.)

$1.99

$

In Stock, Qty 6

0

17

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

18

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

19

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

21

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

22

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

23

Homelite 570554002

Rubber Foot

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Hex Hd.)..

$3.49

$

Usually ships in 3-7 days

0

25

Homelite 308835116

Hose (35 ft.)

$89.99

$

Usually ships in 3-7 days

0

26

Homelite 308760085

Trigger Handle Assembly

Note: (Inc. Key Nos. 38 & 46-47)

$63.99

$

Usually ships in 3-7 days

0

27

Homelite 308506014

Extension Wand

$

$

Not available

28

Homelite 941588918

Data Label

$

$

Currently unavailable

29

Homelite 940676024

Warning Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

31

Homelite 940779368

Danger Label

$

$

Currently unavailable

32

Homelite 940779365

Detergent Tank Label

$

$

Currently unavailable

33

Homelite 961454002

Oil Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

35

Homelite 940680073

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 918016075

Nozzle Hangtag

$

$

Currently unavailable

37

Homelite 940779366

Performance Label

$

$

Currently unavailable

38

Homelite 940851520

LABEL, TRIGGER HANDLE LOGO

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 940851346

Danger Hangtag

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 940871016

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 918016074

Quick Start Hangtag

$

$

Currently unavailable

42

Homelite 940779367

Recoil Label

$

$

Currently unavailable

43

Homelite 940803288

EMC ICES-2/NMB-2 Label (Canada)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 941486008

Inquires Label (Ryobi)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 310448056

5-in-1 Nozzle

$

$

Currently unavailable

46

Homelite 940654083

Trigger Handle Warning Label (English)

$2.99

$

Usually ships in 3-7 days

0

47

Homelite 940904018

Trigger Handle Data Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

50

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

51

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

52

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$5.49

$

In Stock, only 1 left!

0

53

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

54

Homelite 642058001

Inlet Filter Connector

$4.49

$

In Stock, only 1 left!

0

55

Homelite 308452002

Detergent Injector Assembly

$5.99

$

Usually ships in 3-7 days

0

Homelite 998000582

Operator's Manual (120900285)

Note: Not Shown

$

$

Currently unavailable

Homelite 998000583

Quick Start Guide

Note: Not Shown

$

$

Currently unavailable
