RY 802900 (090079399) - Ryobi Pressure Washer, Rev 01 (2018-02) General Assembly (Part 1) Parts Diagram

Pressure Washer, Rev 01

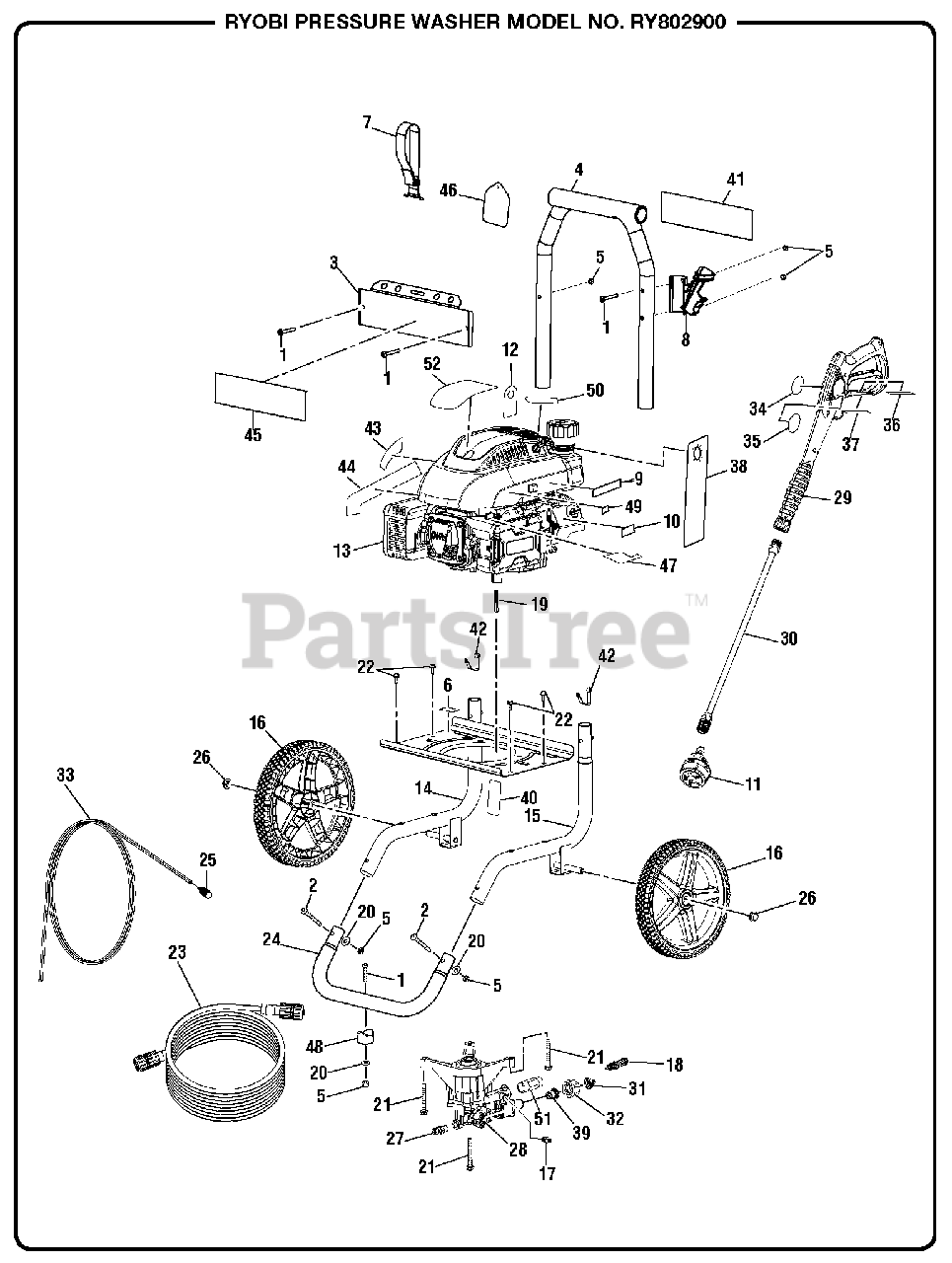

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 661503015

Bolt (M6 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 638671013

Performance Panel

$8.99

$

Usually ships in 3-7 days

0

4

Homelite 308638064

Handle w/Foam

$

$

Not available

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 940871016

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

8

Homelite 519313009

Wand Holder

$

$

Not available

9

Homelite 940647123

Instruction Label

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 940698040

Fuel Valve Label

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 310448012

5-in-1 Nozzle
(Superseded to 310448017)

$65.99

$

Usually ships in 3-7 days

0

12

Homelite 961454002

Oil Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

13

Engine (173CC)

Note: Techtronic Industries Power Equipment, Inc. will not provide a complete motor/pump as a replacement part. Contact our service department for assistance.

$

$

Not available

14

Homelite 310703012

Main Frame Assembly

Note: (Left, Inc. Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 310704013

Main Frame Assembly

Note: (Right, Inc. Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

16

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

17

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

18

Homelite 310924003

Pump Unloader Valve

$30.99

$

In Stock, only 1 left!

0

19

Homelite 678041006

Output Shaft Key

$13.99

$

In Stock, only 1 left!

0

20

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

21

Homelite 661505004

Bolt (M8 x 45 mm, Hex Flange Hd.)

$1.99

$

In Stock, Qty 5

0

22

Homelite 661505020

Bolt (M6 x 16 mm, Hex Flange Hd.)

$

$

Not available

23

Homelite 308835094

Hose (35 ft.)
(Superseded to 308835101)

$91.99

$

In Stock, only 1 left!

0

24

Homelite 310742028

Front Frame Assembly

Note: (Inc. Key Nos.1, 5, 20 & 48)

$37.99

$

Usually ships in 3-7 days

0

25

Homelite 308103015

Chemical Siphon Filter

$2.49

$

In Stock, Qty 5

0

26

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653052

Pump
(Superseded to 308653093)

Note: (Inc. Keys Nos. 17-18, 31-32, 39 and 51)

$170.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Keys Nos. 35 & 37)

$46.99

$

Usually ships in 3-7 days

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

32

Homelite 310993003

Collar

$5.49

$

Usually ships in 3-7 days

0

33

Homelite 561399003

Chemical Siphon Tube

$2.99

$

In Stock, only 2 left!

0

34

Homelite 940786035

Trigger Handle Logo Label

$2.99

$

Usually ships in 3-7 days

0

35

Homelite 940654084

Trigger Handle Warning Label (Eng)

$2.99

$

In Stock, only 1 left!

0

36

Homelite 940654228

Trigger Handle Warning Label (Fr/Sp)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 940786047

Trigger Handle Rating Label

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 940851346

Danger Hangtag

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 642058001

Spindle

$4.49

$

In Stock, only 2 left!

0

40

Homelite 940947016

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 940851351

Quick Start Label

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680074

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940851347

Danger Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940851349

Performance Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 941609001

Nozzle Hangtag

$2.99

$

Usually ships in 3-7 days

0

47

Homelite 940698039

Choke Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 941721004

Off Label

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940873007

No E85 Label

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 308862003

Outlet Tube

$8.99

$

In Stock, only 3 left!

0

52

Homelite 940851350

Shroud Label

$3.49

$

Usually ships in 3-7 days

0

Homelite 120960011

High Alt Kit (2000-7000 Ft.)

Note: Not Shown

$9.99

$

Usually ships in 3-7 days

0

Homelite 995000357

Operator's Manual

$

$

Not available

Homelite 995000358

Quick Start Guide

$

$

Not available

Homelite 900333015

Wire Tie

$

$

Not available

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0
