RY 802320 VNM (095079680) - Ryobi 2300 PSI Pressure Washer, Rev 01 (2021-08) FIGURE B Parts Diagram

2300 PSI Pressure Washer, Rev 01

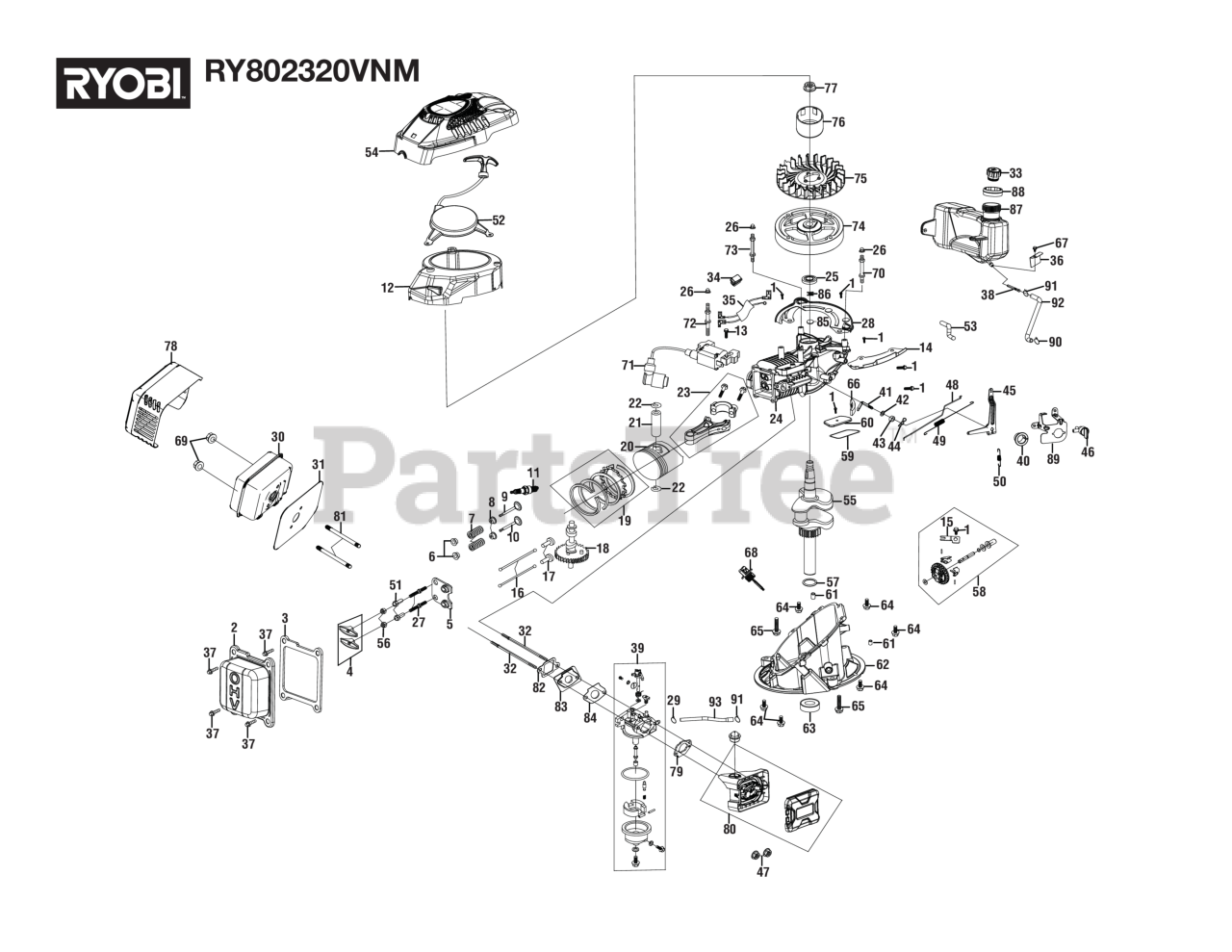

FIGURE B Parts Diagram

  • Title

1

Homelite 099981172001

BOLT M6X12 BOLT M6X12

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 099981172002

COVER COMP,CYLINDER HEAD

$5.99

$

Usually ships in 3-7 days

0

3

Homelite 099981172003

PACKING,HEADCOVER

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 099981172004

ARM, ROCKER

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 099981172005

PLATE,PUSH ROD GUIDE

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 099981172006

SEAT, VALVE SPRING,IN

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 099981172007

SPRING,VALVE

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 099981172008

RETURNER,INTAKE VALVE

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 099981172009

VALVE, INTAKE

$7.49

$

Usually ships in 3-7 days

0

10

Homelite 099981172010

VALVE EXHAUST

$7.49

$

Usually ships in 3-7 days

0

11

Homelite 099981174001

Spark Plug

$9.49

$

In Stock, Qty 5

0

12

Homelite 099981172012

START SMALL CAP

$11.99

$

Usually ships in 3-7 days

0

13

Homelite 099981172013

BOLT M6X25

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 099981172014

WIND SHIELD,LH

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 099981172015

PLATE,GOVERNOR

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 099981172016

ROD,PUSH

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 099981172017

LIFTER,VALVE

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 099981172018

CAMSHAFT ASSY

$28.99

$

Usually ships in 3-7 days

0

19

Homelite 099981172019

SCRAPER RING SET ,PISTON

$13.99

$

Usually ships in 3-7 days

0

20

Homelite 099981172020

PISTON

$23.99

$

Usually ships in 3-7 days

0

21

Homelite 099981172021

PIN, PISTON

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 099981172022

CLIP, PISTON

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 099981172023

ROD ASSEMBLY, CONNECTING

$16.99

$

Usually ships in 3-7 days

0

24

Homelite 099981172024

CYLINDER

$125.99

$

Usually ships in 3-7 days

0

25

Homelite 099981172025

OIL SEAL

$3.99

$

Usually ships in 3-7 days

0

26

Homelite 099981172026

NUT,FLANGE

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 099981172027

ADJUSTER ROCKER ARM

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 099981172028

SHROUD

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 099981172029

FUEL PIPE CLAMP 7.5

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 099981172030

MUFFLER ASSY

$15.99

$

Usually ships in 3-7 days

0

31

Homelite 099981172031

GASKET,EXHAUST

$6.99

$

Usually ships in 3-7 days

0

32

Homelite 099981172032

BOLT, STUD

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 099981172033

FUEL TANK CAP

$25.99

$

Usually ships in 3-7 days

0

34

Homelite 099981172034

SWITCH ASSY

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 099981172097

FLAMEOUT WIRE

$5.49

$

Usually ships in 3-7 days

0

36

Homelite 099981172098

Wind Deflector

$

$

Currently unavailable

37

Homelite 099981172037

BOLT M6X16

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 099981172038

FILTER

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 099981172039

CARBURETOR ASSY

$57.99

$

Usually ships in 3-7 days

0

40

Homelite 099981172096

FUEL SWITCH SEAT

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 099981172041

SHAFT,GOVERNOR ARM

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 099981172042

WASHER,GOVERNOR ARM SHAFT

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 099981172043

SEAL,GOVERNOR ARM SHAFT

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 099981172044

PIN,LOCK

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 099981172045

GOVERNOR ARM

$3.99

$

Usually ships in 3-7 days

0

46

Homelite 099981172095

FUEL VALVE

$19.99

$

Usually ships in 3-7 days

0

47

Homelite 099981172047

HEXAGON NUT WITH FLANGE

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 099981172048

ROD,GOVERNOR

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 099981172049

SPRING,THROTTLE RETURN

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 099981172050

SPRING,GOVERNOR

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 099981172051

NUT

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 099981173124

Recoil Start Assembly

$

$

Currently unavailable

53

Homelite 099981172053

TUBE,BREATHER

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 099981173125

Shroud Cover

$

$

Currently unavailable

55

Homelite 099981172055

CRANKSHAFT ASSY

$64.99

$

Usually ships in 3-7 days

0

56

Homelite 099981172056

NUT

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 099981172057

WASHER,CRANKSHAFT

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 099981172058

GOVERNOR ASSEMBLY

$7.49

$

Usually ships in 3-7 days

0

59

Homelite 099981172059

GASKET,BREATHER CHAMBER

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 099981172060

CAP,BREATHER CHAMBER

$2.99

$

Usually ships in 3-7 days

0

61

Homelite 099981172061

DOWEL PIN,CASECOVER

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 099981172101

Crankcase Cover Assembly

$

$

Currently unavailable

63

Homelite 099981172063

OIL SEAL

$2.99

$

Usually ships in 3-7 days

0

64

Homelite 099981172064

BOLT M6X18

$1.99

$

Usually ships in 3-7 days

0

65

Homelite 099981172065

BOLT M6X45

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 099981172066

FILTER,BREATHER

$2.99

$

Usually ships in 3-7 days

0

67

Homelite 099981172102

Cross Screw (M4 x 8 mm)

$

$

Currently unavailable

68

Homelite 099981172068

DIPSTICK

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 099981172069

NUT LOCK

$1.99

$

Usually ships in 3-7 days

0

70

Homelite 099981172070

BOLT STUD,RECOIL STARTER

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 099981172071

IGNITION COIL ASSY

$22.99

$

Usually ships in 3-7 days

0

72

Homelite 099981172072

BOLT STUD,IGNITION COIL

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 099981172073

BOLT STUD,RECOIL STARTER

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 099981172074

FLYWHEEL ASSEMBLY

$46.99

$

Usually ships in 3-7 days

0

75

Homelite 099981173126

Recoil Starter Fan

$

$

Currently unavailable

76

Homelite 099981172076

PULLEY,STARTER

$5.49

$

Usually ships in 3-7 days

0

77

Homelite 099981172077

NUT

$1.99

$

Usually ships in 3-7 days

0

78

Homelite 099981172078

SHIELD, MUFFLER

$10.99

$

Usually ships in 3-7 days

0

79

Homelite 099981172079

GASKET,AIR CLEANER

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 099981173127

Air Cleaner Assembly

$

$

Currently unavailable

81

Homelite 099981172104

Stud Bolt

$

$

Currently unavailable

82

Homelite 099981172082

GASKET, INTAKE

$1.99

$

Usually ships in 3-7 days

0

83

Homelite 099981172083

INSULATOR,CARBURETOR

$2.99

$

Usually ships in 3-7 days

0

84

Homelite 099981172084

GASKET, CARBURETOR

$1.99

$

Usually ships in 3-7 days

0

85

Homelite 099981172085

CIRCULAR PLATE

$1.99

$

Usually ships in 3-7 days

0

86

Homelite 099981172086

BREATHER VALVE SPRING

$1.99

$

Usually ships in 3-7 days

0

87

Homelite 099981173128

Fuel Tank

$

$

Currently unavailable

88

Homelite 099981172088

FUEL TANK GASKET

$3.49

$

Usually ships in 3-7 days

0

89

Homelite 099981172094

FUEL VALVE BRACKET

$4.99

$

Usually ships in 3-7 days

0

90

Homelite 099981172105

Fuel Pipe Clamp

$

$

Currently unavailable

91

Homelite 099981173119

Fuel Line Clip (Ø9.5)

$

$

Currently unavailable

92

Homelite 099981173129

Fuel Hose (Tank to Valve)

$

$

Currently unavailable

93

Homelite 099981173130

Fuel Hose (Valve to Carburetor)

$

$

Currently unavailable
