RY 74005 D - Ryobi 16" Chainsaw, 38cc Clutch - Chain Brake - Drive Case Cover Parts Diagram

16" Chainsaw, 38cc

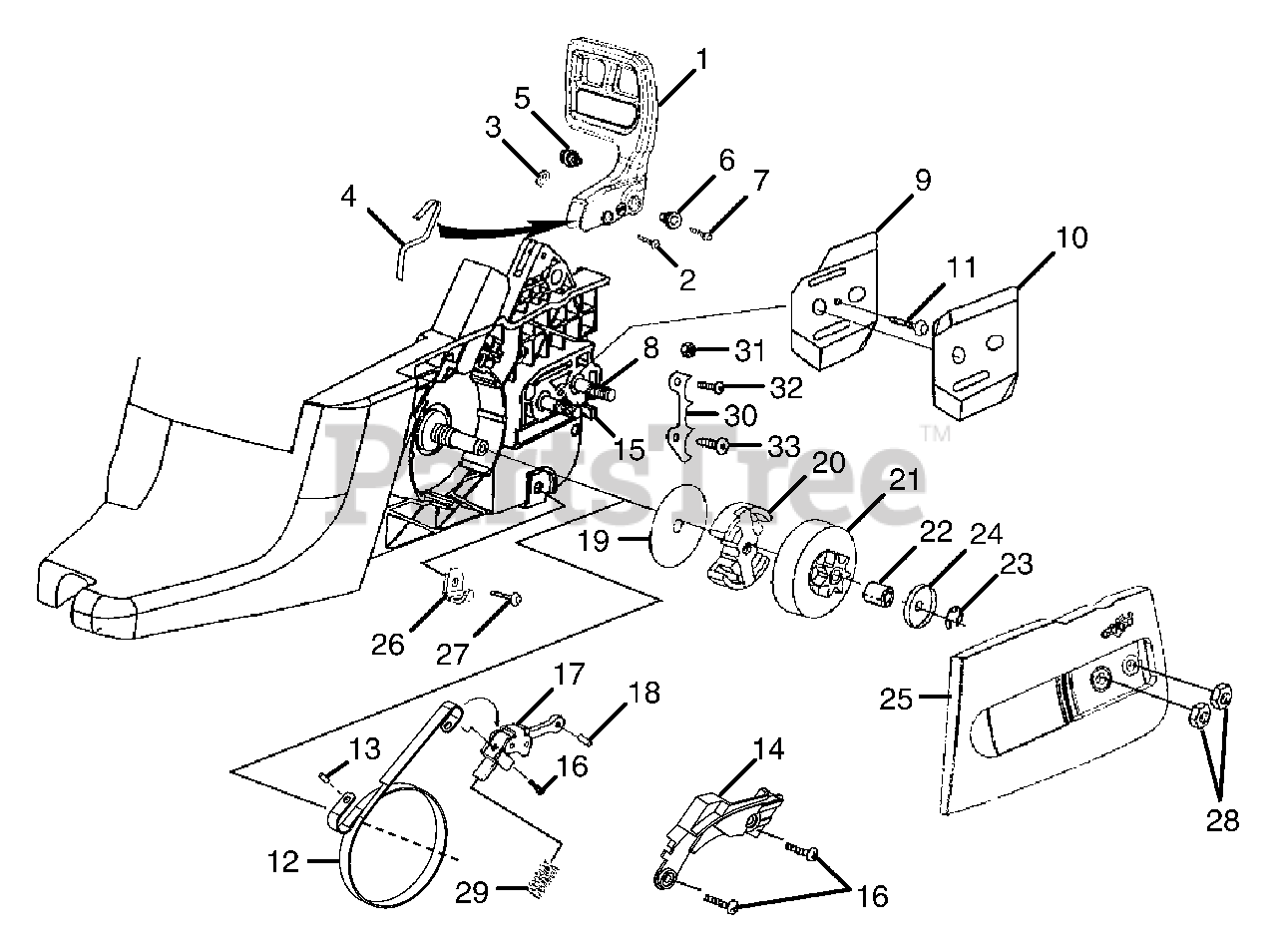

Clutch - Chain Brake - Drive Case Cover Parts Diagram

  • Title
1

Homelite PS04726

HAND GUARD
(Superseded to 511723001)

$10.99

$

In Stock, only 1 left!

0

2

Homelite 07580

HAND GUARD ACTUATING PIN
(Superseded to 620282001)

$1.99

$

In Stock, Qty 20+

0

3

Homelite 69599

RETAINING RING

$

$

Not available

4

Homelite PS04955

SPRING, HANDGUARD
(Superseded to 638024001)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 07393

PIVOT, LH
(Superseded to 671097001)

$1.99

$

In Stock, Qty 5

0

6

Homelite 07392

PIVOT, RH
(Superseded to 671096001)

$1.99

$

In Stock, Qty 5

0

7

Homelite 82624

SCREW (8-32 x 5/8 in.)
(Superseded to 660635001)

$1.99

$

In Stock, only 2 left!

0

8

N/A

GUIDE BAR BOLT

$

$

Not available

9

Homelite 07404A

PLATE, GUIDE BAR
(Superseded to 631036001)

$

$

Not available

10

Homelite 07405A

PLATE, GUIDE BAR
(Superseded to 631038001)

$

$

Not available

11

Homelite 82513

SCREW (6-19 x 1/2 in.)

$2.49

$

In Stock, Qty 5

0

12

Homelite 985030001

BRAKE BAND

$

$

Not available

13

Homelite 06672

PIN, ROLL
(Superseded to 671095001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 985021001

BRAKE BAND COVER

$2.49

$

In Stock, Qty 5

0

15

Homelite 984901001

ADJUSTING PIN KIT
(Superseded to 308116001)

$

$

Not available

16

Homelite 82623

SCREW (8-16 x .320)
(Superseded to 660634001)

$1.99

$

In Stock, Qty 20+

0

17

Homelite 984897001

CHAIN BRAKE LINK

$

$

Not available

18

Homelite 95395A

PIN, ROLL
(Superseded to 671099001)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 04940

THRUST WASHER
(Superseded to 631061001)

$1.49

$

In Stock, only 2 left!

0

20

Homelite 984894001

CLUTCH & HARDWARE
(Superseded to 120950007)

$

$

Not available

21

Homelite 984640001

SPROKET DRUM (.325 PITCH)

$

$

Not available

22

Homelite PS04669

BEARING, NEEDLE

$6.49

$

In Stock, only 2 left!

0

23

Homelite 08981

RING, RETAINING

$4.99

$

In Stock, only 1 left!

0

24

Homelite 04939A

WASHER
(Superseded to 631060001)

$

$

Not available

25

Homelite PA01024

DRIVE CASE COVER

$

$

Not available

26

Homelite PS02928

CHAIN CATCHER
(Superseded to 631035002)

$4.99

$

Usually ships in 3-7 days

0

27

Homelite 82541

SCREW (10-24 x 1/2 in.)

$1.99

$

In Stock, only 3 left!

0

28

Homelite 81196

NUT, HEX
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

29

Homelite 984679001

SPRING, COMPRESSION

$

$

Not available

30

Homelite PS06077

BUMPER SPIKE

$

$

Not available

31

Homelite 81208

LOCK NUT, HEX (10-24)

$

$

Not available

32

$

$

Not available

33

Homelite 82632

SCREW, TRUSS HD.
(Superseded to 660621001)

$1.99

$

In Stock, Qty 9

0
