RY 74003 D - Ryobi 14" Chainsaw, 33cc Engine Internal - Oil Pump Parts Diagram

14" Chainsaw, 33cc

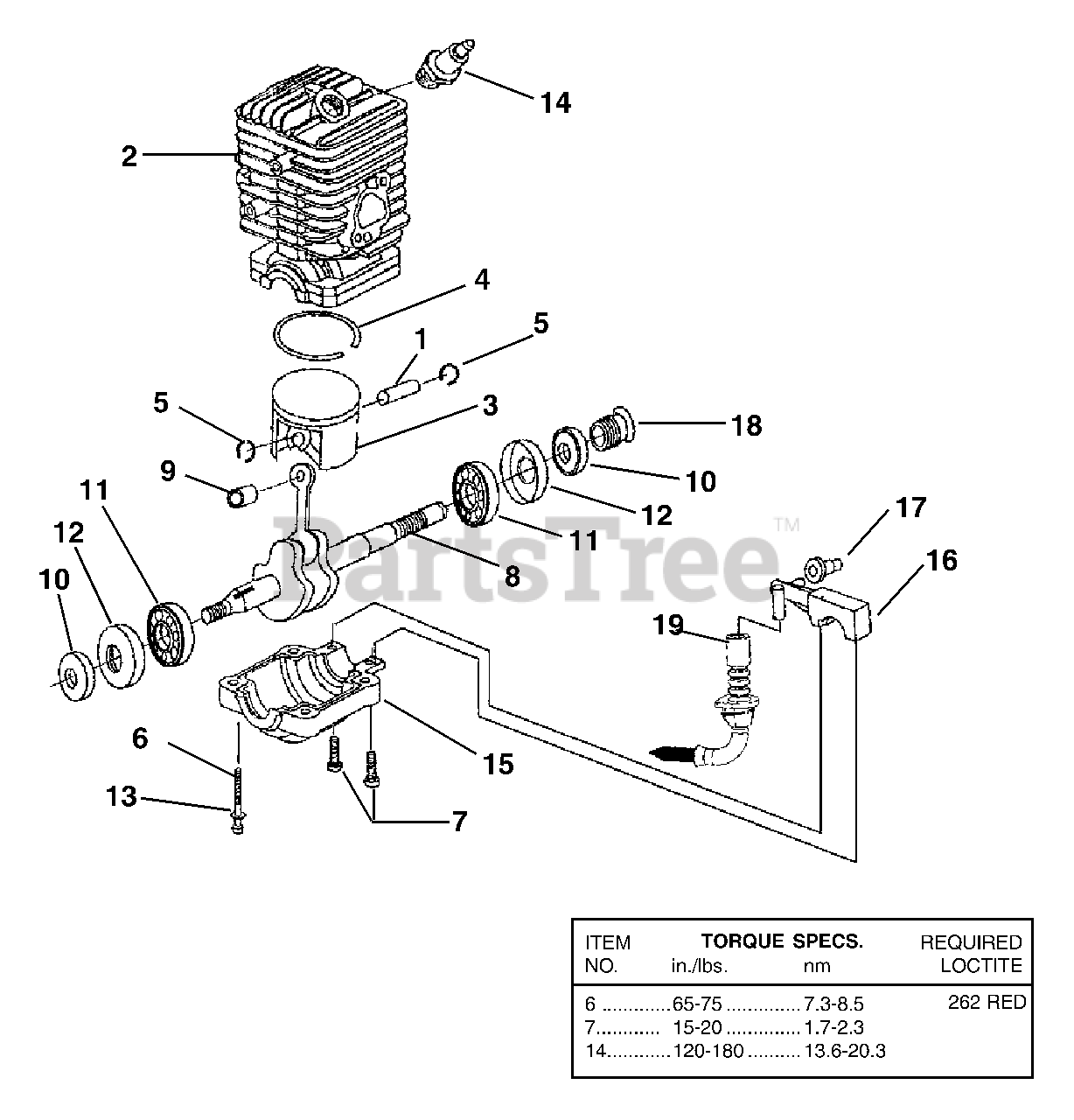

Engine Internal - Oil Pump Parts Diagram

  • Title
1

Homelite 04932

PISTON PIN
(Superseded to 620277001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 068531

CYLINDER MACH/PLATED
(Superseded to A08666A)

$

$

Not available

3

Homelite A04935

33CC PISTON (MACH)

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 04933

PISTON RING

$

$

Not available

5

Homelite 64813

RETAINING RING

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 82527

SCREW TORX PLUS CAP-SOCKET HD
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite PS04989

SCREW, (8/32 X 5/8 in. PAN HD .TORX)
(Superseded to 660627001)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite PA00979

33 CC CRANKSHAFT ASSEMBLY

$

$

Not available

9

Homelite PS04921

NEEDLE BEARING

$

$

Not available

10

Homelite 04920

SHAFT SEAL
(Superseded to 570220001)

$

$

Not available

11

Homelite 08838

BALL BEARING

$

$

Not available

12

Homelite 04919

BEARING CASE
(Superseded to 570221001)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 84008

FLAT WASHER
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.49

$

In Stock, Qty 20+

0

15

Homelite 04909

CRANKCASE (33CC) CS
(Superseded to 640818001)

$

$

Not available

16

Homelite PA01396

OIL PUMP ASSEMBLY

$

$

Not available

17

Homelite 06841

GROMMET, OIL OUTLET
(Superseded to 570226001)

$1.99

$

In Stock, only 4 left!

0

18

Homelite 06847

LEFT HAND WORM
(Superseded to T610389001)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite PA01037

OIL INTAKE TUBE W/FILTER

$

$

Not available
