RY 74003 D - Ryobi 14" Chainsaw, 33cc Carburetor - Muffler - Air Filter Parts Diagram

14" Chainsaw, 33cc

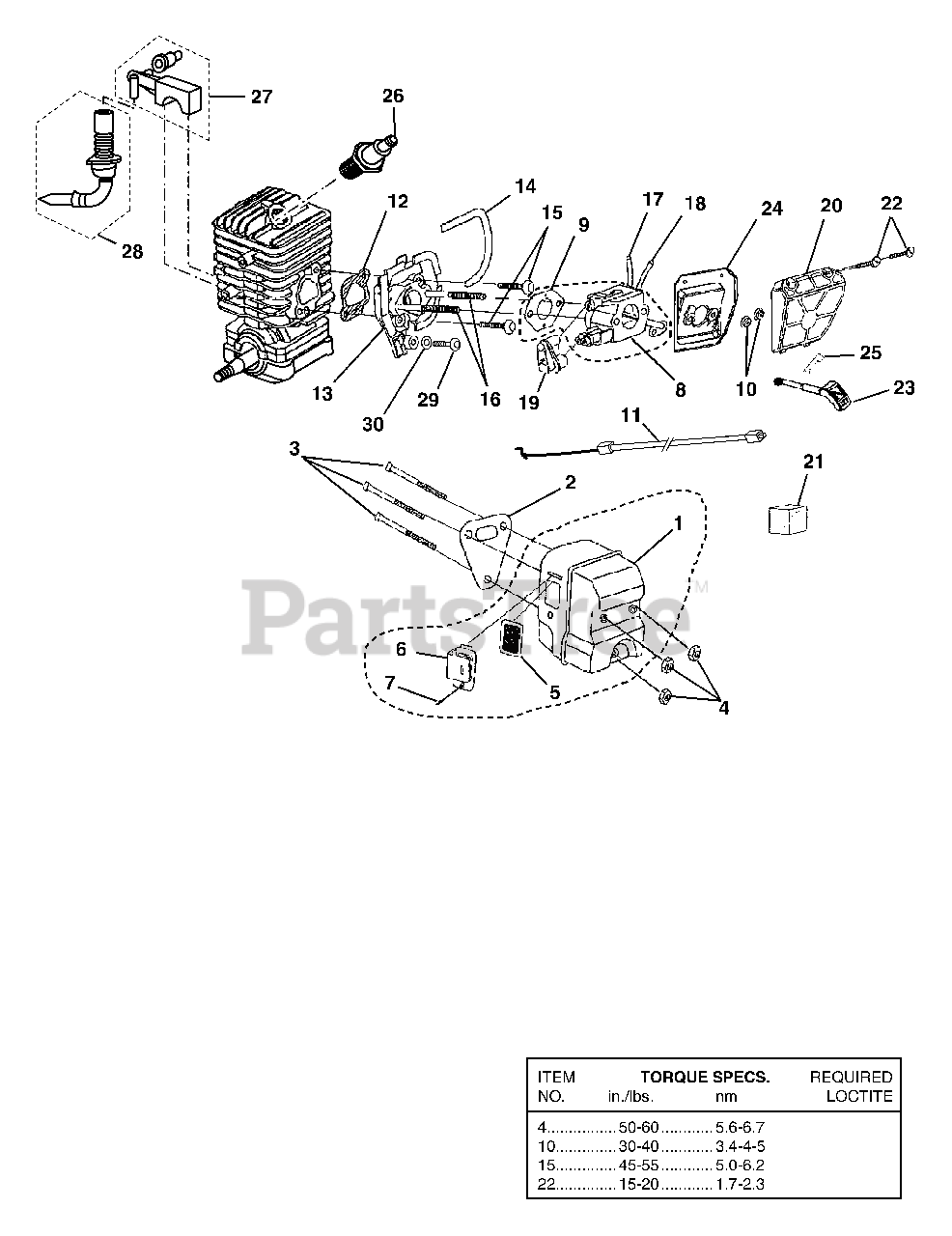

Carburetor - Muffler - Air Filter Parts Diagram

  • Title
1

Homelite A07402

MUFFLER

$

$

Not available

2

Homelite 06839

MUFFLER GASKET
(Superseded to 900848001)

$2.49

$

In Stock, only 4 left!

0

3

Homelite PS04525

SCREW-SQUARE HD.
(Superseded to 660626001)

$

$

Not available

4

Homelite 81206

NUT-LOCKING HEX (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

5

Homelite 07394

SCREEN, SPARK
(Superseded to A07402)

$

$

Not available

6

Homelite 07396A

DEFLECTOR, MUFFLER

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 95922

SCREW (8-32 x .312)
(Superseded to 660624001)

$

$

Not available

8

Homelite 984891001

CARBURETOR
(Superseded to A09159A)

$154.99

$

Usually ships in 3-7 days

0

9

Homelite 98339

CARBURETOR GASKET
(Superseded to 900843001)

$

$

Not available

10

Homelite 07589

FLANGE NUT (10-24)

$1.99

$

In Stock, only 1 left!

0

11

Homelite A07596B

THROTTLE CABLE
(Superseded to 900845001)

$

$

Not available

12

Homelite 06840A

GASKET, HEAT DAM

$

$

Not available

13

Homelite 04916

HEAT DAM

$

$

Not available

14

Homelite 06873

SEAL, HEAT DAM

$

$

Not available

15

Homelite 82539

SCREW, TRUSS HD. (10-24 x 7/8 in.)
(Superseded to 660616001)

$

$

Not available

16

Homelite 06852

SCREW, CARBURETOR

$4.99

$

In Stock, only 1 left!

0

17

Homelite 07454

FUEL LINE (TANK TO CARB. 8-1/2 in.)

$

$

Not available

18

Homelite 07454

FUEL LINE (CARB. TO PURGE BULB. 8 in.)

$

$

Not available

19

Homelite 04907

CARBURETOR GROMMET

$

$

Not available

20

Homelite 04938

AIR FILTER COVER

$

$

Not available

21

Homelite PS05070

PRE FILTER (IN ENGINE HOUSING)

$

$

Not available

22

Homelite 82617

SCREW, SLOTTED PAN HD. (8-16 x 5/8 in.)

$1.99

$

In Stock, only 2 left!

0

23

Homelite PS06280

ROD, CHOKE

$

$

Not available

24

Homelite 04937

AIR FILTER PLATE

$

$

Not available

25

Homelite 08939

SPRING CLIP (CHOKE ROD)

$

$

Not available

26

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

27

Homelite PA01396

OIL PUMP ASSY.

$

$

Not available

28

Homelite PA01037

OIL INTAKE W/FILTER

$

$

Not available

29

Homelite 82541

SCREW, THREAD FORMING (10-14 x .5)

$1.99

$

In Stock, only 3 left!

0

30

Homelite 12789

WASHER, RETAINING

$

$

Not available
