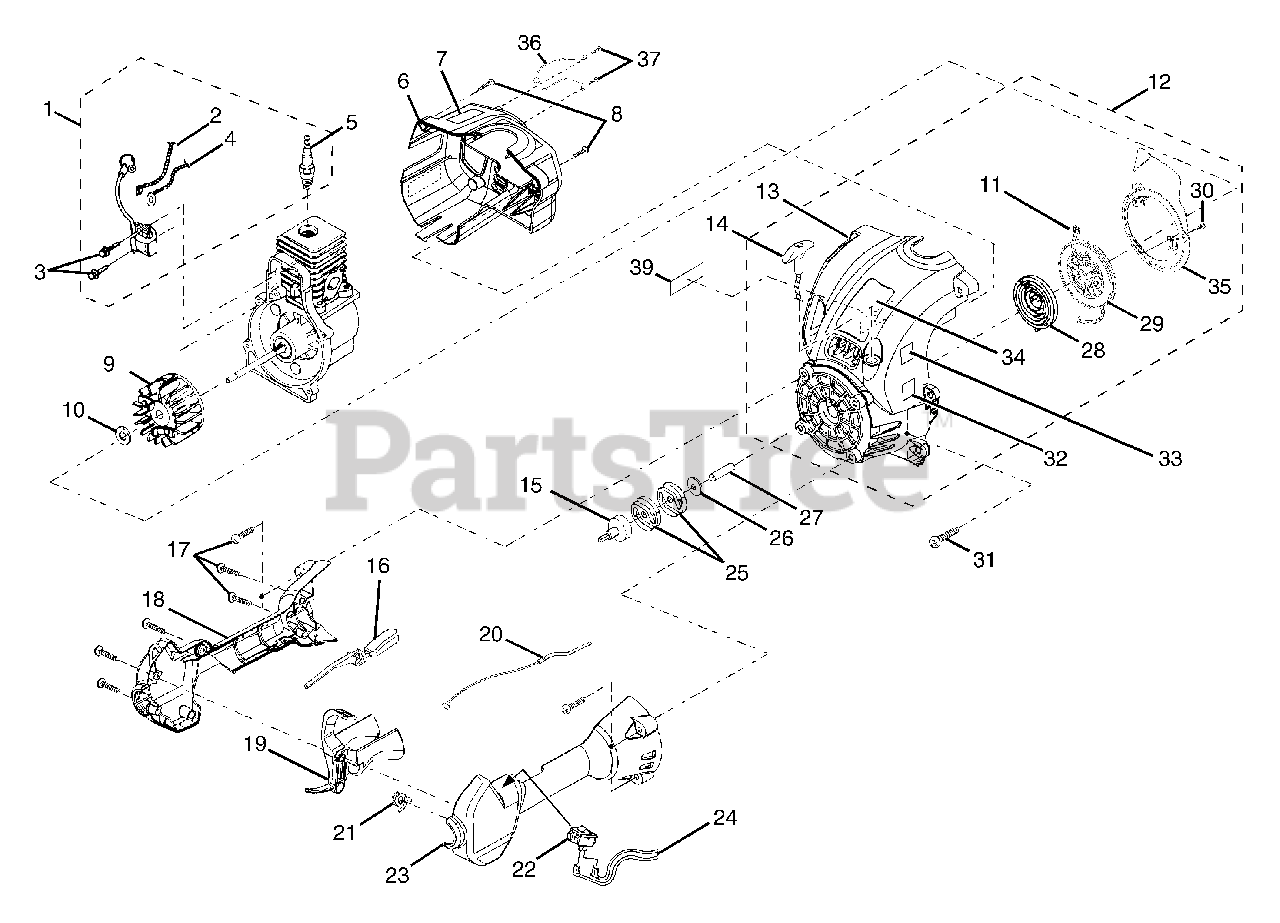

RY 70113 - Ryobi Shaft Trimmer Upper Housing / Handle Assembly Parts Diagram

Shaft Trimmer

Upper Housing / Handle Assembly Parts Diagram

  • Title
1

Homelite 984520001

IGNITION KIT

$

$

Not available

2

Homelite A06963

ELECTRICAL LEAD

$3.99

$

Usually ships in 3-7 days

0

3

$2.49

$

Usually ships in 3-7 days

0

4

Homelite A06964

ELECTRICAL LEAD

$

$

Not available

5

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

6

Homelite PS01127

REAR COVER

$

$

Not available

7

Homelite 982722001

LOGO PLATE

$1.06

$

Usually ships in 3-7 days

0

8

Homelite 82537

SCREW (10 - 14 x 7/8)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 984521001

ROTOR AND PAWL ASSEMBLY
(Superseded to 300952002)

$13.99

$

In Stock, only 1 left!

0

10

$1.99

$

In Stock, only 2 left!

0

11

Homelite 9789902

STARTER ROPE 42 in.
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 984547001

STARTER ASSEMBLY

$

$

Not available

13

Homelite PA01641

STARTER HOUSING AND EYELET

$

$

Not available

14

Homelite PS06114

ERGO GRIP

$

$

Not available

15

Homelite PA01613

DRUM AND CONNECTOR
(Superseded to 308177001)

$

$

Not available

16

Homelite PS06258

INTERLOCK TRIGGER

$

$

Not available

17

$2.99

$

In Stock, Qty 7

0

18

Homelite PS01124

CONTROL HANDLE/ RH

$

$

Not available

19

$

$

Not available

20

Homelite PS01177

THROTTLE CABLE

$1.49

$

In Stock, only 1 left!

0

21

$2.49

$

In Stock, only 2 left!

0

22

Homelite 07385

SWITCH
(Superseded to 760661001)

$

$

Not available

23

Homelite PS01125

CONTROL HANDLE/ LH

$

$

Not available

24

Homelite PA00387

ELECTRICAL LEADS

$6.99

$

Usually ships in 3-7 days

0

25

Homelite 00242

CLUTCH DISK (ST185 & ST385)

$

$

Not available

26

Homelite 98929A

WASHER
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

27

$

$

Not available

28

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

In Stock, only 4 left!

0

29

Homelite 98770A

STARTER PULLEY

$3.99

$

Usually ships in 3-7 days

0

30

$

$

Not available

31

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 984287001

DECAL, 110 POWER SOUND

$1.99

$

Usually ships in 3-7 days

0

33

Homelite PS06261

DECAL, ZIP START
(Superseded to PS06335)

$

$

Not available

34

Homelite 984414001

DECAL, MODEL

$

$

Currently unavailable

35

Homelite PS06339

AIR BAFFLE PLATE

$

$

Not available

36

Homelite PS00218

MUFFLER GUARD

$26.99

$

Usually ships in 3-7 days

0

37

$1.99

$

In Stock, only 3 left!

0

38

Homelite 03646

TORX WRENCH

Note: (NOT SHOWN)

$

$

Not available

39

Homelite 984417001

DECAL, FUEL RATIO MIXTURE

$1.99

$

Usually ships in 3-7 days

0
