RY 70113 - Ryobi Shaft Trimmer Engine Assembly Parts Diagram

Shaft Trimmer

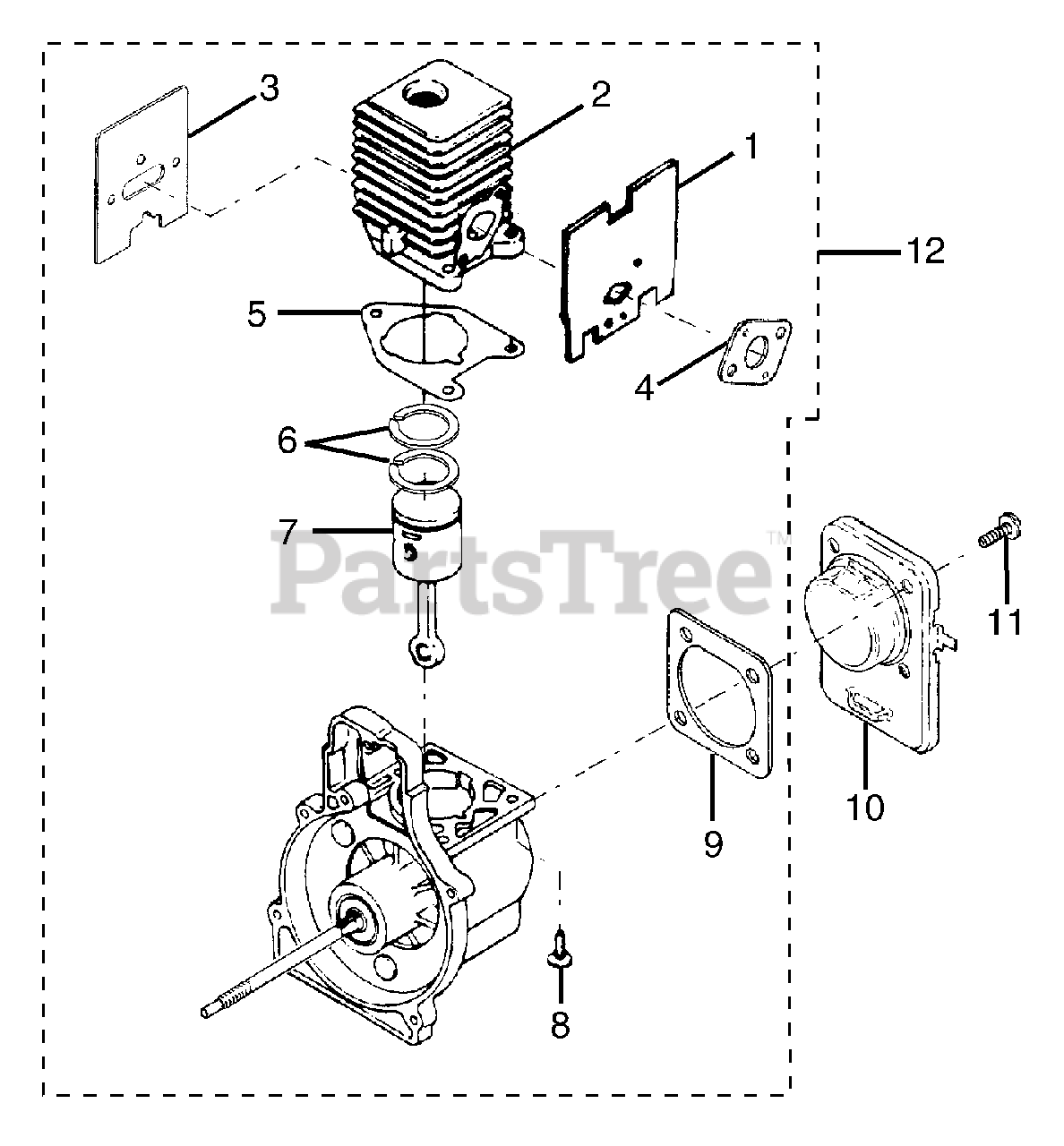

Engine Assembly Parts Diagram

  • Title

1

Homelite 06900A

HEAT DAM GASKET

$

$

Not available

2

Homelite PS02128

CYLINDER
(Superseded to 985524002)

$

$

Not available

3

Homelite PS04000

MUFFLER GASKET

$

$

Not available

4

Homelite 98766A

CARBURETOR GASKET
(Superseded to 900994004)

$

$

Not available

5

Homelite 04388B

CYLINDER GASKET
(Superseded to 985259001)

$

$

Not available

6

Homelite PS03498

PISTON RING ( 1-5/16 in.)
(Superseded to 985607001)

$8.49

$

In Stock, only 3 left!

0

7

Homelite 984543001

PISTON ASSEMBLY KIT
(Superseded to UP06937A)

$26.99

$

Usually ships in 3-7 days

0

8

Homelite PS02807

SCREW (12-24 x .660 PAN TORX)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 06443A

GASKET COVER, C/C
(Superseded to 900954001)

$

$

Not available

10

Homelite PS02130

CRANKCASE COVER

$

$

Not available

11

Homelite PS01565

PAN HEAD SCREW

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 984546001

SHORT BLOCK ASSEMBLY

$

$

Not available
