RY 70111 - Ryobi String Trimmer Air Box/Muffler Assembly Parts Diagram

String Trimmer

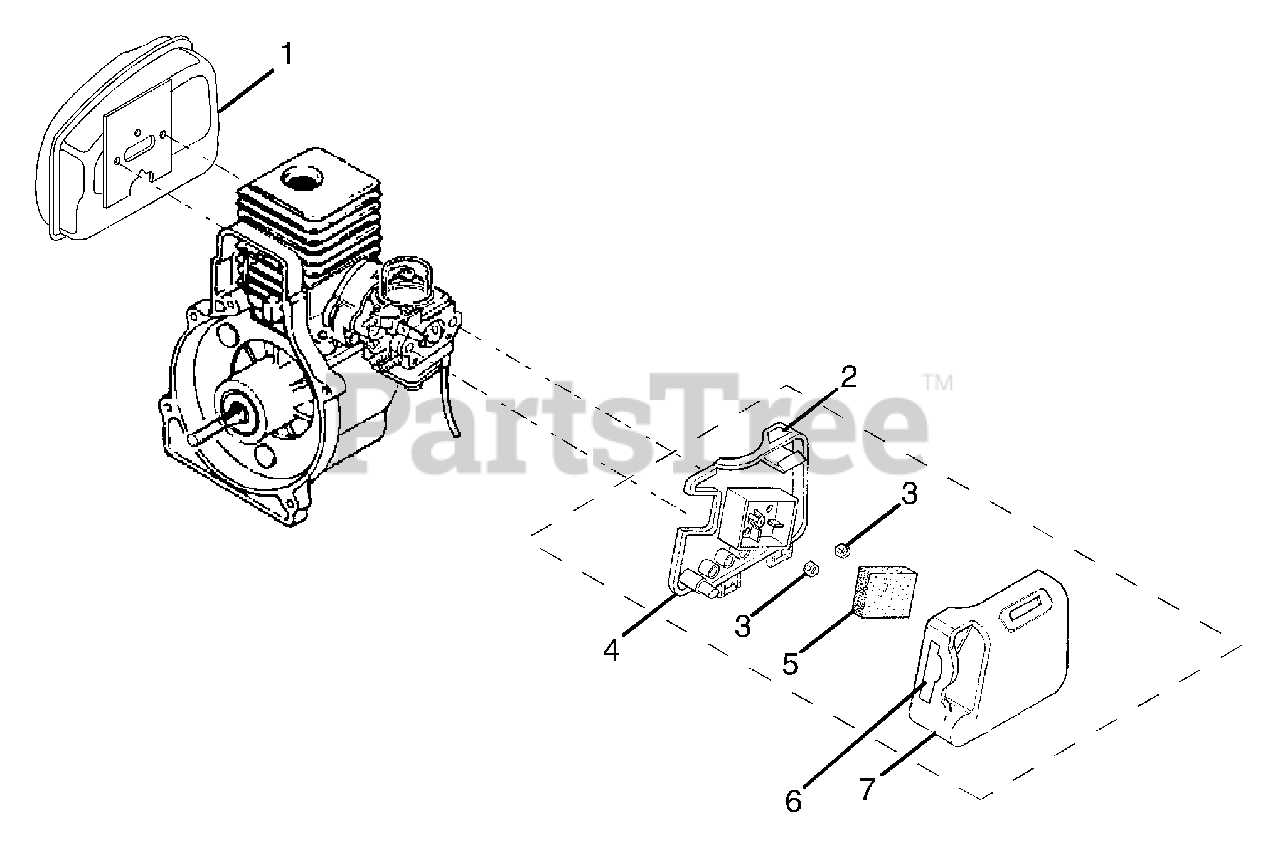

Air Box/Muffler Assembly Parts Diagram

  • Title
1

Homelite PA01073

MUFFLER ASSEMBLY
(Superseded to UP04634)

$35.99

$

Usually ships in 3-7 days

0

2

Homelite PS02788

PRIMER DECAL

$

$

Not available

3

Homelite 81208

LOCK NUT (10-24)

$

$

Not available

4

Homelite PS02113

BOX AIR FILTER (CONEHEAD)
(Superseded to 518094001)

$

$

Not available

5

Homelite 98760

AIR FILTER

$

$

Not available

6

Homelite PS02523

CHOKE DECAL
(Superseded to PS02571)

$

$

Not available

7

Homelite PS02309

AIR BOX COVER
(Superseded to 518096001)

$

$

Not available

8

Homelite 06502

SPARK SCREEN

Note: (NOT SHOWN)

$

$

Not available

Homelite 983000221

OPERATOR'S MANUAL

$

$

Currently unavailable
