RY 70107 - Ryobi String Trimmer Handle Parts Diagram

String Trimmer

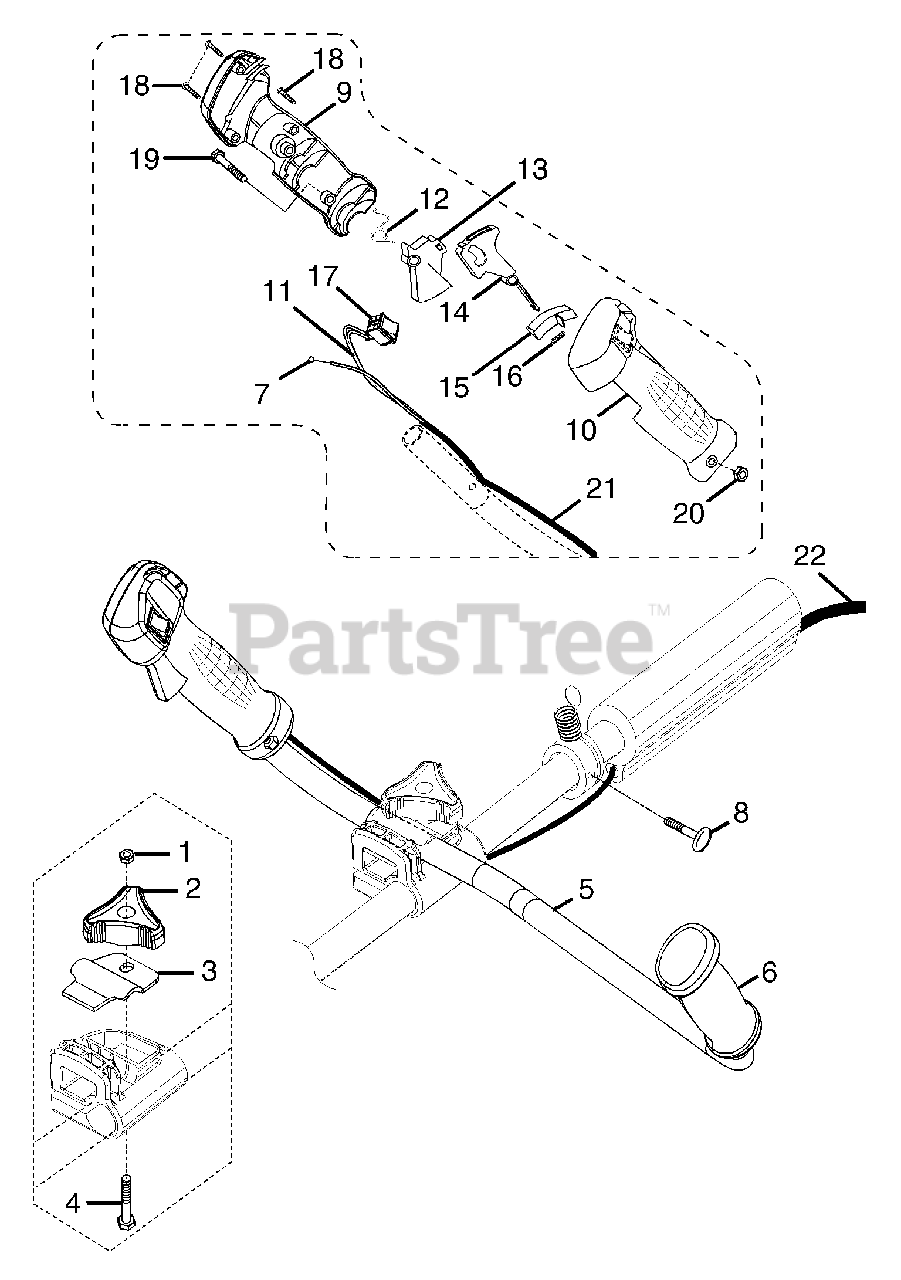

Handle Parts Diagram

  • Title

$

$

Not available

2

Homelite PS05028

PLASTIC KNOB

$

$

Not available

3

Homelite PS03545

HANDLE BAR CLAMP

$

$

Not available

$

$

Not available

5

Homelite PS03631

HANDLEBAR

$

$

Not available

6

Homelite PS03543

ASSIST GRIP L/H

$

$

Not available

7

Homelite PS05236

THROTTLE CABLE

$

$

Not available

8

Homelite 82260

THUMB SCREW

$

$

Not available

9

Homelite PS04712

R/H HANDLE OVERMOLD

$

$

Not available

10

Homelite PS04711

L/H HANDLE OVERMOLD

$

$

Not available

11

Homelite PS03792

SWITCH LEAD

$

$

Not available

12

Homelite PS03540

THROTTLE RETURN SPRING

$

$

Not available

13

$

$

Not available

14

Homelite PS06332

THROTTLE INTERLOCK

$

$

Not available

15

Homelite PS06333

HALF THROTTLE BUTTON

$

$

Not available

16

$

$

Not available

17

Homelite 07385

SWITCH
(Superseded to 760661001)

$

$

Not available

18

Homelite 82596

SCREW, PLASTITE

$

$

Not available

19

Homelite 82556

SCREW (TORX TRUSS HD.)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 81208

LOCK NUT (LOC HX 10-24)

$

$

Not available

21

Homelite PS04743

SLEEVING

$

$

Not available

22

Homelite PS05320

SLEEVING WIRE

$

$

Not available

23

Homelite 983989001

STRAP W/HIP PAD

Note: (NOT SHOWN)

$

$

Not available
