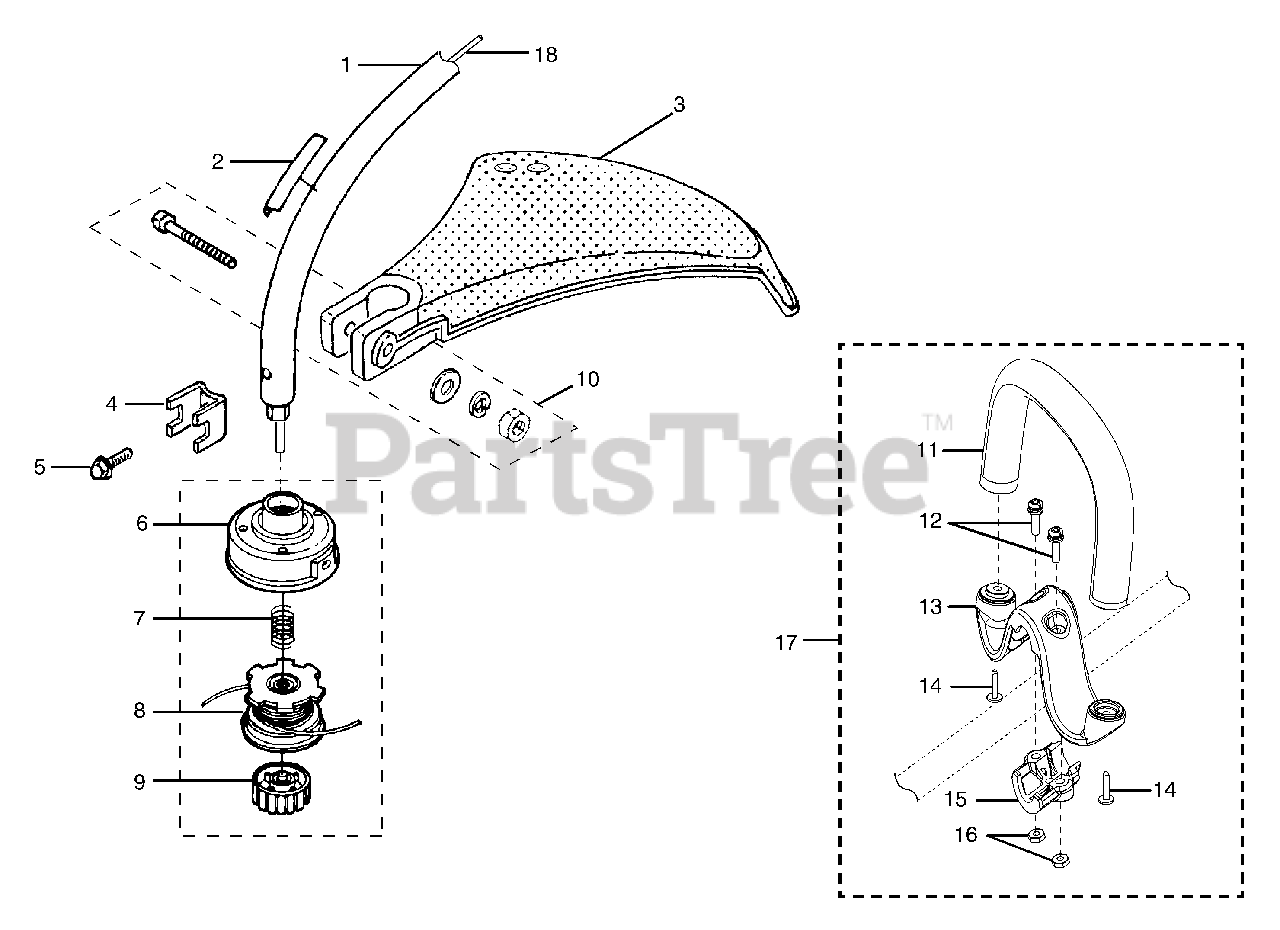

RY 70103 A - Ryobi String Trimmer Handle / Trimmer Head Assembly Parts Diagram

String Trimmer

Handle / Trimmer Head Assembly Parts Diagram

  • Title

1

Homelite 984551001

BOOM ASSEMBLY KIT

$

$

Not available

2

Homelite PS06336

BOOM DECAL (WARNING)

$

$

Not available

3

Homelite PA01014

GRASS DEFLECTOR
(Superseded to T308744001)

$

$

Not available

4

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

5

Homelite 983823001

SCREW
(Superseded to 660647001)

$1.99

$

In Stock, only 1 left!

0

6

Homelite A98231A

HOUSING AND EYELETS
(Superseded to 099068001005)

$

$

Not available

7

Homelite 06713

COMPRESSION SPRING

$1.99

$

In Stock, only 3 left!

0

8

Homelite PA01347A

SPOOL W/LINE (.095 in)
(Superseded to UP06908A)

$103.99

$

In Stock, only 1 left!

0

9

Homelite A98866A

SPOOL RETAINER (RH/THREAD)
(Superseded to 308042002)

$

$

Not available

10

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

11

Homelite 984439001

ASSIST HANDLE W/GRIP

$17.99

$

Usually ships in 3-7 days

0

12

Homelite PS04159

SCREW (12-24 x 1 SEMS)

$2.49

$

In Stock, only 3 left!

0

13

Homelite PS04070

M CLAMP
(Superseded to 518038001)

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 82620

SCREW

$1.99

$

In Stock, Qty 6

0

15

Homelite PS04072

CLAMP

$4.99

$

In Stock, only 2 left!

0

16

Homelite 81068

HEX NUT (12-24)

$

$

Not available

17

Homelite 983798001

ASSIST HANDLE ASSEMBLY

$

$

Not available

18

Homelite PS01502

FLEXIBLE SHAFT
(Superseded to 986117001)

$

$

Not available
