RY 70103 A - Ryobi String Trimmer Fuel Tank Parts Diagram

String Trimmer

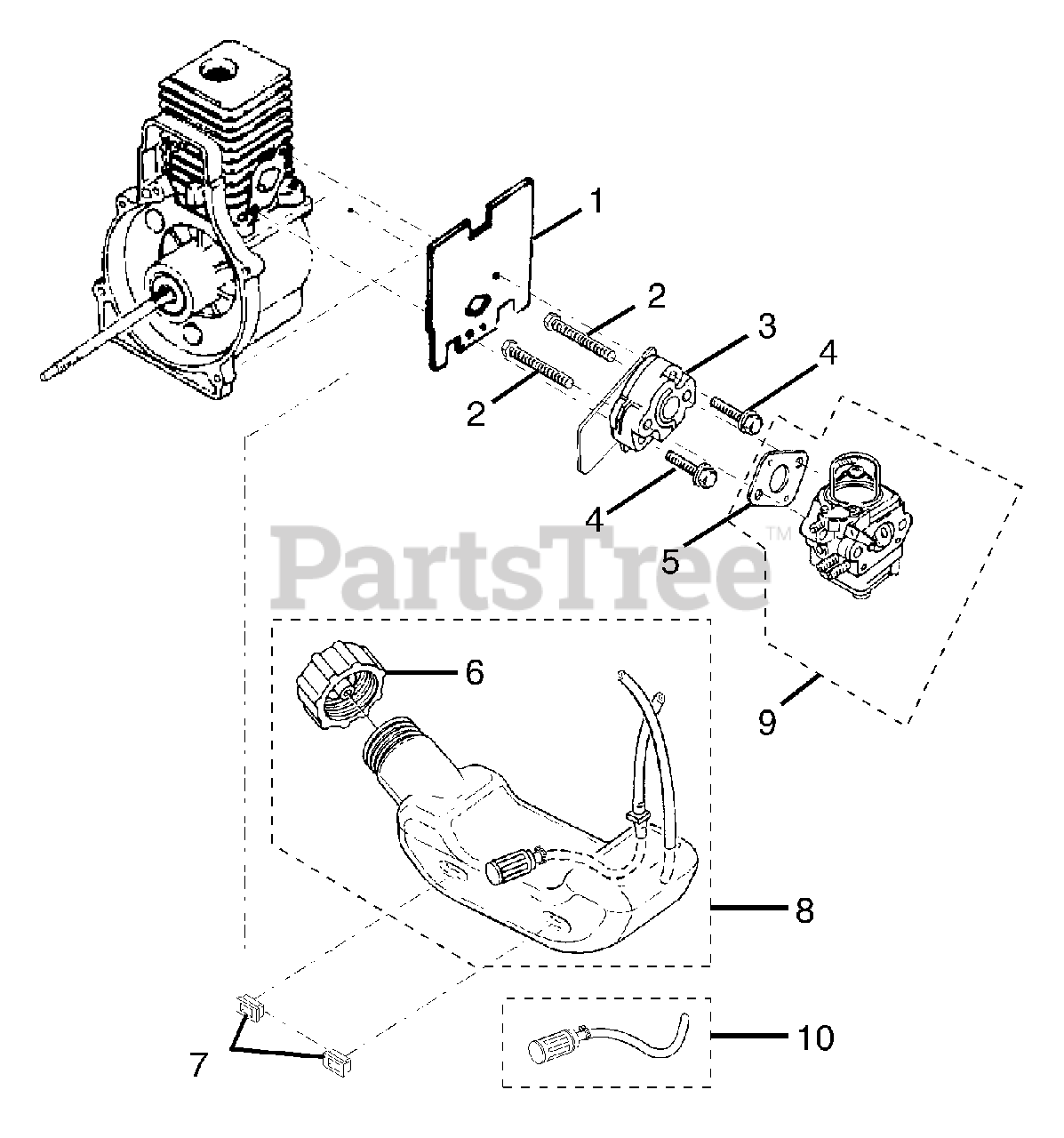

Fuel Tank Parts Diagram

  • Title
1

Homelite 06900A

HEAT DAM GASKET

$

$

Not available

2

Homelite 04474

CARBURETOR BOLT

$

$

Not available

3

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

4

Homelite 093221

PAN HEAD SEMS SCREW
(Superseded to 660662001)

$

$

Not available

5

Homelite 98766A

CARBURETOR GASKET
(Superseded to 900994004)

$

$

Not available

6

Homelite A09115

FUEL CAP
(Superseded to 300758006)

$

$

Not available

7

$

$

Not available

8

Homelite 984550001

FUEL TANK ASSEMBLY

Note: WHEN ORDERING FUEL TANK ASSEMBLY (ITEM NUMBER 8), ALSO ORDER BUMPERS (ITEM NUMBER 7)

$

$

Not available

9

Homelite 984549001

CARBURETOR ASSEMBLY KIT
(Superseded to 120900026)

$59.99

$

Usually ships in 3-7 days

0

10

Homelite 985077001

FUEL FILTER KIT
(Superseded to 000998272)

Note: (INCLUDED ON FUEL TANK ASSEMBLY)

$9.49

$

Usually ships in 3-7 days

0
