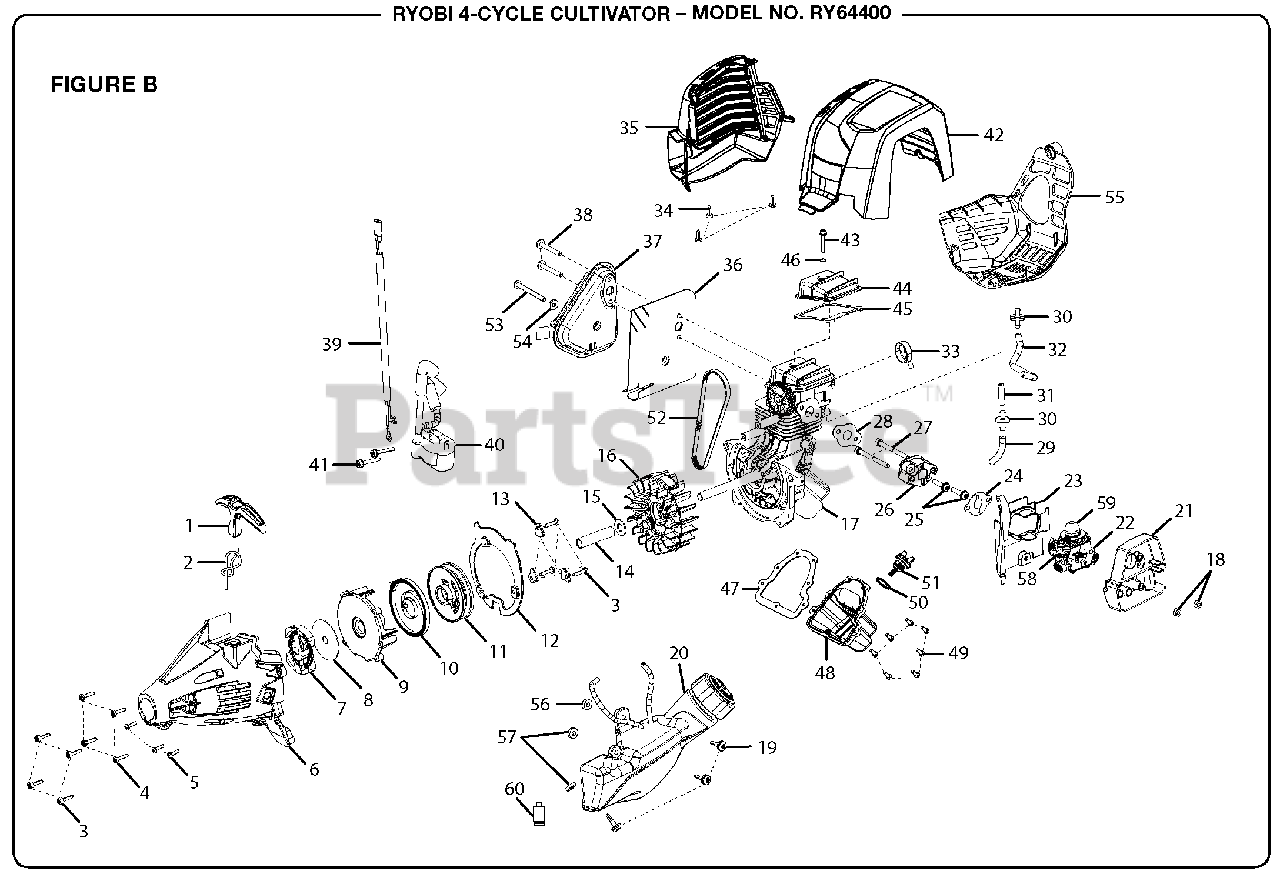

RY 64400 - Ryobi Cultivator Figure B Parts Diagram

Cultivator

Figure B Parts Diagram

  • Title
1

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 6

0

2

Homelite 900849002

Starter Rope

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 7

0

4

Homelite 660970001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

5

Homelite T660619001

Screw (#6 x 1/2 in. T.F.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 310304001

Starter Housing Assembly

$32.99

$

Usually ships in 3-7 days

0

7

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

$1.99

$

In Stock, only 4 left!

0

9

Homelite 518994001

Starter Baffle

$6.99

$

In Stock, only 2 left!

0

10

Homelite 638033001

Spring & Container

$5.49

$

In Stock, only 4 left!

0

11

$1.99

$

In Stock, Qty 6

0

12

$1.99

$

In Stock, only 4 left!

0

13

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

14

Homelite 638284002

Spacer Tube

$

$

Not available

15

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

16

Homelite 309011001

Flywheel Assembly

$25.99

$

Usually ships in 3-7 days

0

17

Homelite 309921009

Short Block Assembly (Incl. Key Nos. 43-52)
(Superseded to 309962004)

$

$

Not available

18

$

$

Not available

19

Homelite 660970008

Screw (M4)

$

$

Not available

20

Homelite 310590001

Fuel Tank & Cap Assembly

$

$

Not available

21

Homelite 519792002

Air Box Base

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 309368001

Carburetor Assembly
(Superseded to 309368003)

$

$

Not available

23

Homelite 518692004

Air Baffle

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 900809003

Carburetor Gasket

$

$

Not available

25

Homelite 660629003

Screw (M5 x 23 mm)

$1.99

$

In Stock, Qty 5

0

26

$

$

Not available

27

Homelite 661509001

Bolt
(Superseded to 661509002)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 901657002

Heat Dam Gasket

$

$

Not available

29

Homelite 570710002

Breather Hose

$3.49

$

In Stock, only 4 left!

0

30

Homelite 308826002

Check Valve

$4.49

$

In Stock, only 2 left!

0

31

Homelite 570710003

Breather Hose

$3.99

$

In Stock, only 2 left!

0

32

Homelite 570710005

Breather Hose

$1.49

$

In Stock, only 4 left!

0

33

Homelite 570401001

Breather Fitting

$

$

Not available

34

Homelite 660466002

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 519804001

Muffler Housing

$8.99

$

Usually ships in 3-7 days

0

36

Homelite 901702002

Muffler Gasket

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 309324001

Muffler Assembly

$12.99

$

In Stock, only 1 left!

0

38

Homelite 661143001

Muffler Bolt (M5 x 42 mm)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 308863022

Electrical Lead Wire Assembly

$4.99

$

In Stock, only 1 left!

0

40

Homelite 309263002

Ignition Module

$29.99

$

In Stock, only 2 left!

0

41

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 518142002

Top Housing

$

$

Not available

43

Homelite 660780002

Screw (M4 x 27 mm total, 14 mm threaded)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 638692001

Cam Cover

$3.49

$

In Stock, only 1 left!

0

45

$

$

Not available

46

$1.99

$

Usually ships in 3-7 days

0

47

$7.49

$

Usually ships in 3-7 days

0

48

$7.49

$

Usually ships in 3-7 days

0

49

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

50

$1.99

$

In Stock, only 3 left!

0

51

Homelite 518629002

Oil Cap/Dipstick

$

$

Not available

52

Homelite 901656002

Timing Belt

$

$

Not available

53

Homelite 660347001

Muffler Bolt (M5 x 50 mm)

$1.99

$

In Stock, only 1 left!

0

54

$

$

Not available

55

Homelite 518548001

CE Cover (Bottom Cover)

$2.99

$

Usually ships in 3-7 days

0

56

Homelite 901189001

Washer (Plastic)

$

$

Not available

57

$

$

Not available

58

Homelite 521523001

Choke Lever

$

$

Not available

59

Homelite 561635001

Primer Bulb

$8.49

$

In Stock, only 2 left!

0

60

Homelite 300759005

Fuel Filter

$9.99

$

In Stock, only 1 left!

0
