RY 60520 - Ryobi Cultivator General Assembly (Part 2) Parts Diagram

Cultivator

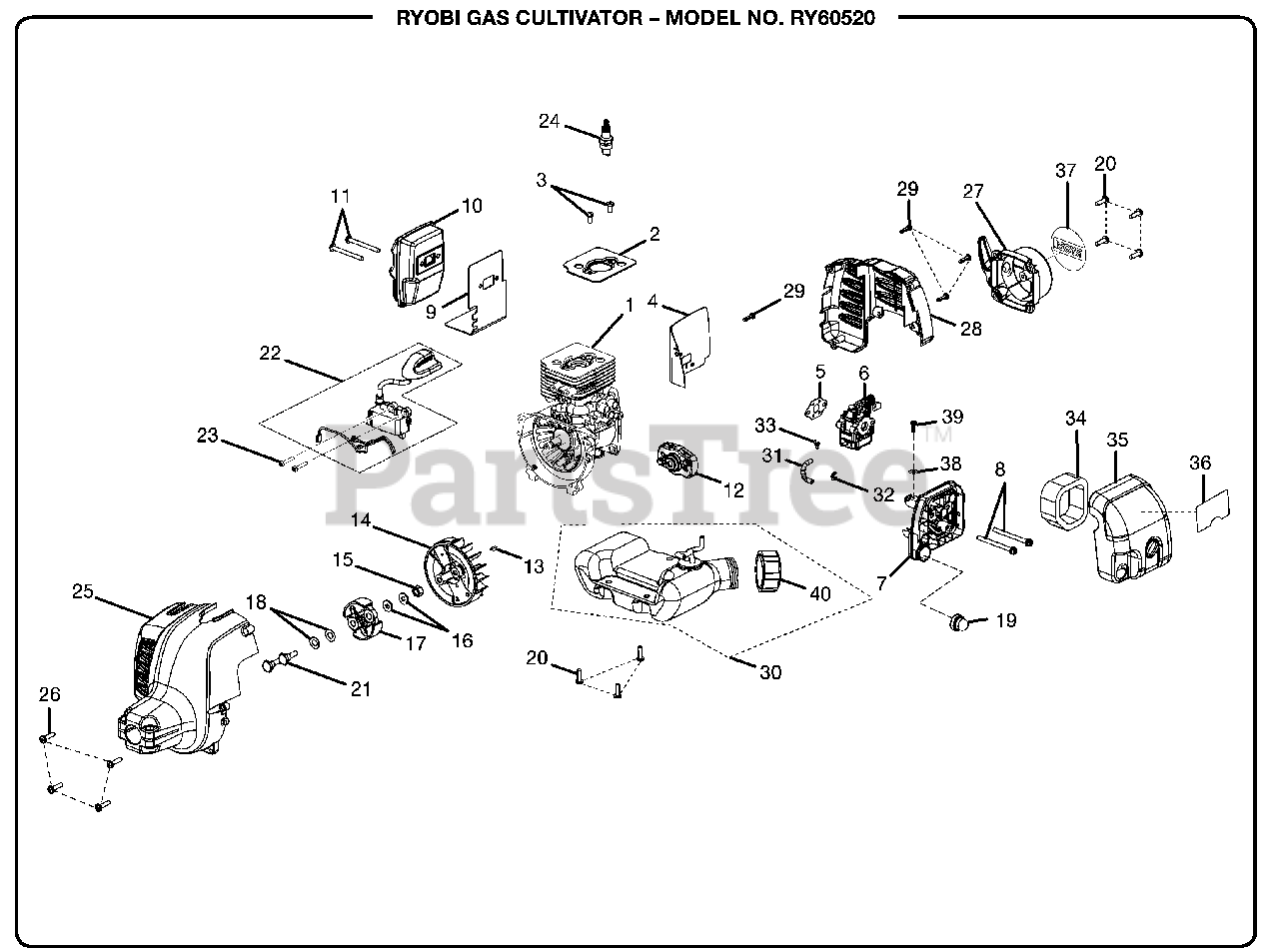

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 308707001

SHORT BLOCK

$

$

Not available

2

Homelite 630002021

PLATE

$1.49

$

In Stock, only 3 left!

0

3

Homelite 660351002

SCREW (M5 x 10 mm PAN HD.)
(Superseded to 983660005)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 900711001

GASKET

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 900758001

GASKET

$

$

Not available

6

Homelite 308708001

CARBURETOR ASSEMBLY

$

$

Not available

7

Homelite 308478002

FILTER HOUSING ASSEMBLY

Note: INC. KEY NOS 19, 31 AND 32

$

$

Not available

8

Homelite 660346001

SCREW (M5 x 60 mm PAN HD.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 630002006

GASKET
(Superseded to 6300206)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 308138013

MUFFLER ASSEMBLY

$

$

Not available

11

Homelite 660347001

SCREW (M5 x 50 mm PAN HD.)

$1.99

$

In Stock, only 1 left!

0

12

Homelite 308004001

PULLEY ASSEMBLY

$17.99

$

Usually ships in 3-7 days

0

13

Homelite 690688002

WOODRUFF KEY

$

$

Not available

14

Homelite 640574001

ROTOR
(Superseded to 6457401)

$

$

Not available

15

Homelite 690689001

ROTOR NUT
(Superseded to 6968901)

$

$

Not available

16

Homelite 690695001

WASHER
(Superseded to 983788071)

$

$

Not available

17

Homelite 300756001

CLUTCH ASSEMBLY
(Superseded to 300756007)

$

$

Not available

18

Homelite 690696001

CURVED WASHER
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

19

Homelite 300780002

PRIMER
(Superseded to 01183)

$

$

Not available

20

Homelite 660351001

SCREW (M5 X 16 mm)
(Superseded to 6635101)

Note: Purchase locally

$1.99

$

In Stock, only 3 left!

0

21

Homelite 660353001

SCREW (M6 x 14 mm PAN HD.)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 290178007

COIL ASSEMBLY

$

$

Currently unavailable

23

Homelite 660349001

SCREW (M4 x 22 mm PAN HD.)

Note: Purchase locally

$1.99

$

In Stock, Qty 5

0

24

Homelite 870217001

SPARK PLUG
(Superseded to 870301002)

Note: CHAMPION RZ7C

$9.99

$

In Stock, only 1 left!

0

25

Homelite 300754008

FRONT HOUSING ASSEMBLY

$

$

Not available

26

Homelite 660344001

SCREW (M5 x 20 mm PAN HD.)
(Superseded to 6634401)

$

$

Not available

27

Homelite 308430002

STARTER HOUSING ASSEMBLY
(Superseded to 310030003)

$

$

Not available

28

Homelite 518201001

REAR ENGINE HOUSING

$14.99

$

Usually ships in 3-7 days

0

29

Homelite 660563001

SCREW (M4 x 16 mm PAN HD.)
(Superseded to 660734001)

Note: Purchase locally

$1.99

$

In Stock, only 3 left!

0

30

Homelite 308644002

FUEL TANK
(Superseded to 308644001)

Note: INCL KEY NO 40

$

$

Not available

31

Homelite 570259008

FUEL LINE

$1.49

$

In Stock, only 4 left!

0

32

Homelite 690700001

HOSE CLIP
(Superseded to 6970001)

$1.99

$

In Stock, Qty 6

0

33

Homelite 690699001

CLIP
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 560873001

AIR FILTER
(Superseded to 5687301)

$

$

Not available

35

Homelite 300747003

OUTER COVER ASSEMBLY

$

$

Not available

36

Homelite 950119008

PRIMER LABEL

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 950119007

LOGO LABEL

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 638133002

RETAINER

$1.49

$

In Stock, only 1 left!

0

39

Homelite 660734001

SCREW (M4 X 16 mm TORX PAN HD.)

Note: Purchase locally

$1.99

$

In Stock, only 3 left!

0

40

Homelite 308642001

FUEL CAP

$

$

Not available

Homelite 000998216

SPARK ARRESTOR KIT
(Superseded to 986179001)

Note: NOT SHOWN

$

$

Not available
