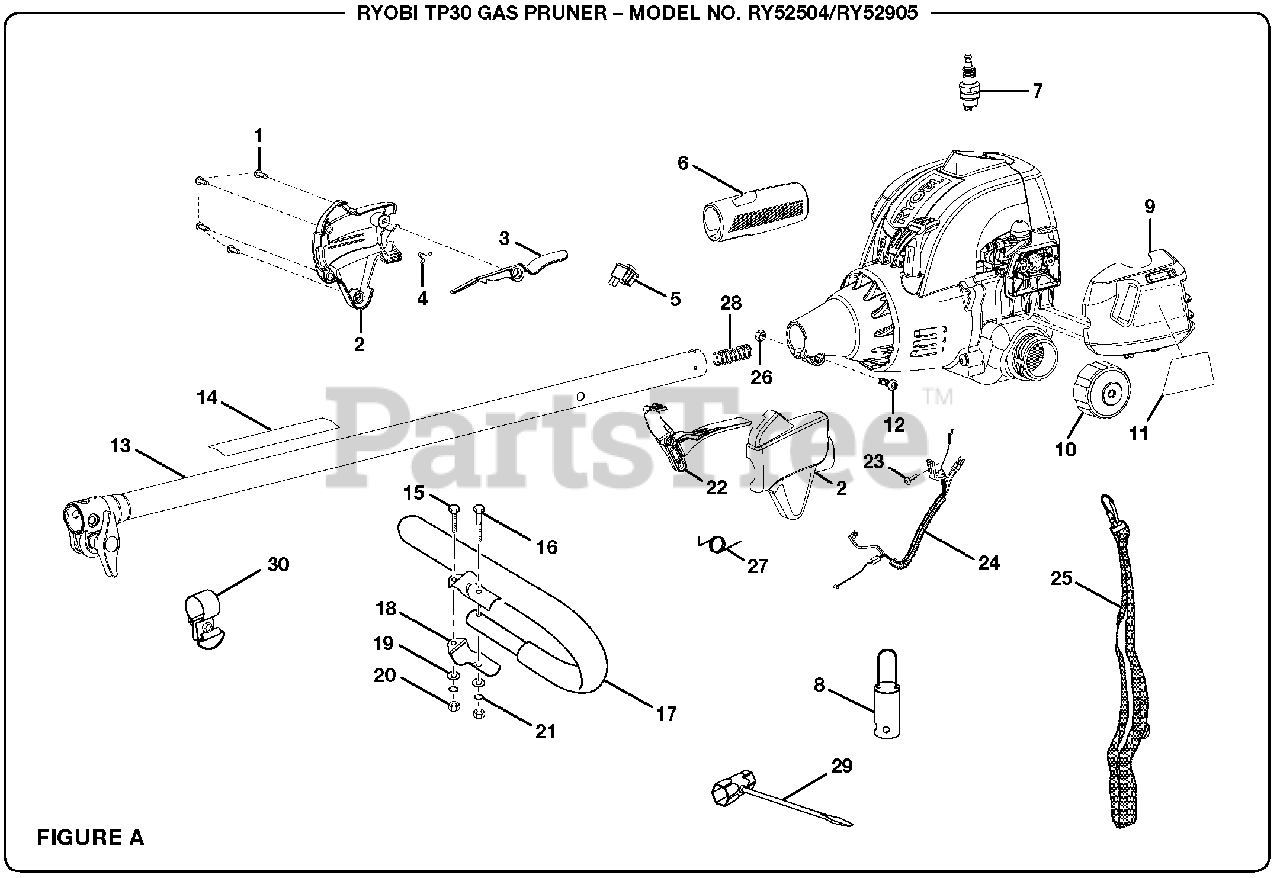

RY 52905 (TP 30) - Ryobi Pole Saw Figure A Parts Diagram

Pole Saw

Figure A Parts Diagram

  • Title
1

Homelite 660563002

Screw (M4 x 20 mm)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 308869002

Control Handle Assembly

$

$

Not available

3

Homelite 518695001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

4

Homelite 638431001

Strap Hanger

$1.99

$

In Stock, only 2 left!

0

5

Homelite 760700002

Switch (Momentary Contact)
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

6

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$4.99

$

In Stock, only 2 left!

0

7

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

8

Homelite 518019001

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

9

Homelite 518777001

Air Filter Cover

$1.99

$

In Stock, Qty 5

0

10

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

11

Homelite 940686026

Starting Label
(Superseded to 940686150)

$1.49

$

In Stock, only 3 left!

0

12

Homelite 660697002

Bolt (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 308470004

Upper Boom Assembly

$

$

Not available

14

Homelite 940627024

Warning Decal
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 660643002

Short Bolt (1/4-20 x 1 in., Hex Hd.)
(Superseded to 82496)

$

$

Not available

16

Homelite 660643001

Long Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308046001

"J" Handle w/Grip
(Superseded to A08130)

$27.99

$

In Stock, only 1 left!

0

18

Homelite 638014001

Handle Bar Clamp
(Superseded to 00422)

$1.49

$

In Stock, only 1 left!

0

19

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 678016001

Hex Nut (1/4-20)
(Superseded to 81242)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 678012001

Lock Washer
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

22

Homelite 518696001

Throttle Trigger

$

$

Not available

23

Homelite 660616001

Screw (10-24 x 7/8 in.)

$

$

Not available

24

Homelite 308439003

Throttle and Lead Assembly

$

$

Not available

25

Homelite 308487001

Shoulder Harness

$11.99

$

In Stock, only 1 left!

0

26

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

27

$1.99

$

In Stock, only 4 left!

0

28

Homelite 640140011

Compression Spring

$

$

Currently unavailable

29

Homelite 631055006

Combination Wrench

$

$

Not available

30

Homelite 308224001

Strap Hanger Assembly
(Superseded to 07255)

$

$

Not available

Homelite 987000194

Operator's Manual (960703003)

$

$

Not available
