RY 52502 (TP 30) - Ryobi Pole Saw Figure B Parts Diagram

Pole Saw

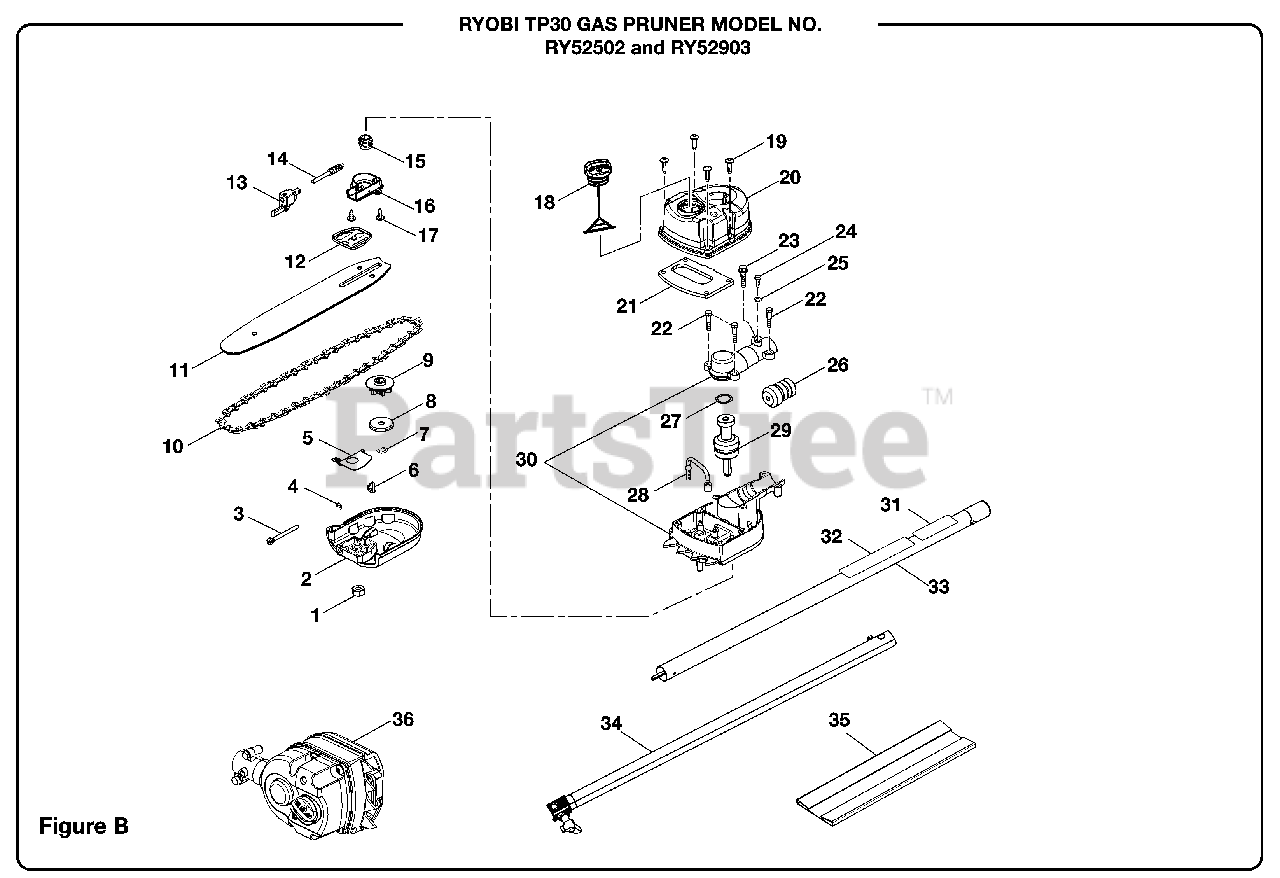

Figure B Parts Diagram

  • Title

1

Homelite 090038001023

HEX NUT (M8)

Note: Purchase locally

$

$

Not available

2

Homelite 090038001022

BAR CLAMP ASSEMBLY
(Superseded to 308521001)

$

$

Not available

3

Homelite 090038001024

GUIDE BAR ADJUSTMENT SCREW (M5 X 50 mm)
(Superseded to 986164001)

$

$

Not available

4

Homelite 090038001025

RETAINING RING (4 mm)
(Superseded to 986165001)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

5

Homelite 090038001026

GUIDE BAR PLATE
(Superseded to 638281001)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 090038001021

GUIDE BAR ADJUSTING PIN (M5)
(Superseded to 986185001)

$2.99

$

In Stock, Qty 7

0

7

Homelite 090038001020

E-RING (6 mm)
(Superseded to 986162001)

Note: Purchase locally

$2.99

$

In Stock, only 2 left!

0

8

Homelite 090038001019

CUPPED WASHER
(Superseded to 04939A)

$

$

Not available

9

Homelite 090038001018

SPROCKET
(Superseded to 985224001)

$

$

Not available

10

Homelite 690583002

CHAIN (3/8,.043, 10)

$

$

Not available

11

Homelite 671834006

GUIDE BAR
(Superseded to 671834023)

$46.99

$

In Stock, only 1 left!

0

12

Homelite 090038001028

BAR PAD PLATE

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 090038001029

OIL PUMP SEAL ASSEMBLY
(Superseded to 986166001)

$19.99

$

Usually ships in 3-7 days

0

14

Homelite 090038001030

OIL PINION GEAR & PLUNGER
(Superseded to 308524001)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 090038001015

WORM GEAR
(Superseded to 985223001)

$26.99

$

Usually ships in 3-7 days

0

16

Homelite 090038001016

OIL PUMP HOUSING W/CAM PIN ASSEMBLY
(Superseded to 308520001)

$4.99

$

In Stock, only 1 left!

0

17

Homelite 090038001017

SCREW (M5 X 13 mm)

Note: Purchase locally

$

$

Not available

18

Homelite 090038001001

OIL CAP WITH RETAINER (PKG.)

$1.49

$

In Stock, only 1 left!

0

19

Homelite 090038001002

SCREW (M5 X 18 mm)
(Superseded to 985895001)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 090038001003

OIL TANK COVER ASSEMBLY

$

$

Not available

21

Homelite 090038001004

OIL COVER GASKET
(Superseded to 985265001)

$1.49

$

In Stock, Qty 8

0

22

Homelite 090038001005

SCREW (M5 X 25 mm, SHOULDER SCREW)
(Superseded to 986155001)

Note: Purchase locally

$

$

Not available

23

Homelite 090038001006

SCREW (M5 X 25 mm)
(Superseded to 986158001)

Note: Purchase locally

$

$

Not available

24

Homelite 099078001030

SCREW (M5 X 15 mm)

Note: Purchase locally

$

$

Not available

25

Homelite 099078001031

SPRING WASHER (M5)

Note: Purchase locally

$

$

Not available

26

Homelite 090038001011

PINION GEAR ASSEMBLY
(Superseded to 985252001)

$48.99

$

In Stock, only 1 left!

0

27

Homelite 090038001008

WAVY WASHER
(Superseded to 985262001)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 090038001009

PICK-UP TUBE ASSEMBLY
(Superseded to PA01487)

$

$

Not available

29

Homelite 090038001014

OUTPUT SHAFT ASSEMBLY
(Superseded to 985253001)

$83.99

$

In Stock, only 1 left!

0

30

Homelite 090038001042

GEAR CASE AND COVER ASSEMBLY
(Superseded to 308627001)

$

$

Not available

31

Homelite 940627024

EXPAND-IT LABEL
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 940654011

WARNING LABEL
(Superseded to 986173001)

$

$

Not available

33

Homelite 308425001

PRUNER BOOM ASSEMBLY

Note: INCLUDES KEY NOS 31 AND 32

$

$

Not available

34

Homelite 308010006

INTERMEDIATE BOOM ASSEMBLY
(Superseded to 308010016)

$

$

Not available

35

Homelite 090038001032

BLADE COVER
(Superseded to 983606001)

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 308400002

PRUNER GEAR HEAD
(Superseded to 986172001)

Note: INCLUDES KEY NOS 1-9 AND 12-30

$

$

Not available
