RY 52001 (PC 30) - Ryobi Pole Saw Upper Handle / Air Box Assembly Parts Diagram

Pole Saw

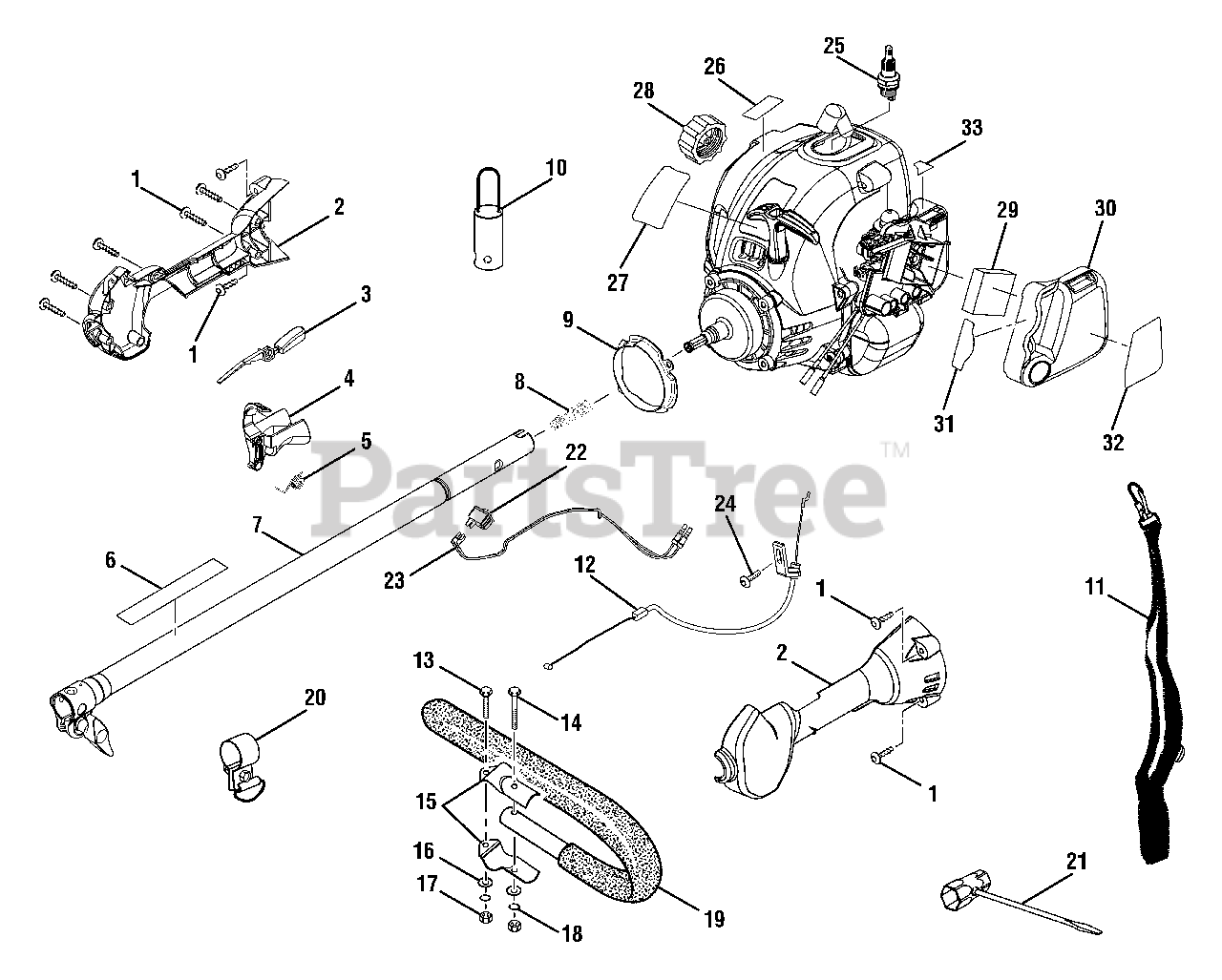

Upper Handle / Air Box Assembly Parts Diagram

  • Title
1

Homelite 82589

SCREW (10-14 X 1 in. T.F. TRUSS HD.)

Note: Purchase Locally.

$2.99

$

In Stock, Qty 7

0

2

Homelite 985382001

HANDLE ASSEMBLY

$

$

Not available

3

Homelite PS06258

TRIGGER LOCK

$

$

Not available

4

$

$

Not available

5

Homelite PS01718

TORSION SPRING

$2.49

$

In Stock, only 2 left!

0

6

Homelite 986175001

WARNING LABEL

$

$

Not available

7

Homelite 985384002

BOOM ASSEMBLY
(Superseded to 000998353)

Note: (INC. KEY NO. 6)

$

$

Not available

8

Homelite 986493001

COMPRESSION SPRING
(Superseded to 678252001)

$

$

Not available

9

Homelite 985835001

RING GUARD

$2.99

$

Usually ships in 3-7 days

0

10

Homelite PS02155

STORAGE END CAP
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

11

Homelite 944701

SHOULDER STRAP
(Superseded to 308487001)

$11.99

$

In Stock, only 1 left!

0

12

Homelite PS01177

THROTTLE CABLE ASSEMBLY

$1.49

$

In Stock, only 1 left!

0

13

Homelite 82496

BOLT (1/4-20 X 1 in. HEX HD.)

Note: Purchase Locally.

$

$

Not available

14

Homelite 82278

BOLT (1/4-20 X 1-1/2 in. HEX HD.)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 00422

HANDLE BAR CLAMP
(Superseded to 099075001007)

$1.49

$

In Stock, only 1 left!

0

16

Homelite 84004

WASHER
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 81242

HEX NUT (1/4-20)

Note: Purchase Locally.

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 83009

LOCK WASHER

Note: Purchase Locally.

$8.49

$

Usually ships in 3-7 days

0

19

Homelite A08130

J HANDLE AND GRIP
(Superseded to 308046009)

$27.99

$

In Stock, only 1 left!

0

20

Homelite 07255

STRAP HANGER

$

$

Not available

21

Homelite 09207

COMBINATION WRENCH

$12.99

$

Usually ships in 3-7 days

0

22

Homelite PS02764

SWITCH (MOMENTARY CONTACT)

$

$

Not available

23

Homelite PA00387

LEAD ASSEMBLY

$6.99

$

Usually ships in 3-7 days

0

24

$1.99

$

Usually ships in 3-7 days

0

25

Homelite PS02227

SPARK PLUG (CHAMPION RCJ6Y OR NGK BPM R7)
(Superseded to 870174001)

Note: Purchase Locally.

$4.99

$

In Stock, Qty 20+

0

26

Homelite 985157001

LOGO LABEL

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 986177001

DATA LABEL

$

$

Not available

28

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

29

Homelite 98760

AIR FILTER

$

$

Not available

30

Homelite PS02309

AIR BOX COVER
(Superseded to 518096001)

$

$

Not available

31

Homelite 985593001

CHOKE DECAL

$

$

Not available

32

Homelite 985592001

STARTING LABEL

$

$

Not available

33

Homelite 985595001

PRIMER LABEL

$

$

Not available

Homelite 983000743

Operator's MANUAL

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:02)

$

$

Currently unavailable
