RY 5020 (090840010) - Ryobi Chainsaw, 50cc, Rev 05 (2021-12) FIGURE B Parts Diagram

Chainsaw, 50cc, Rev 05

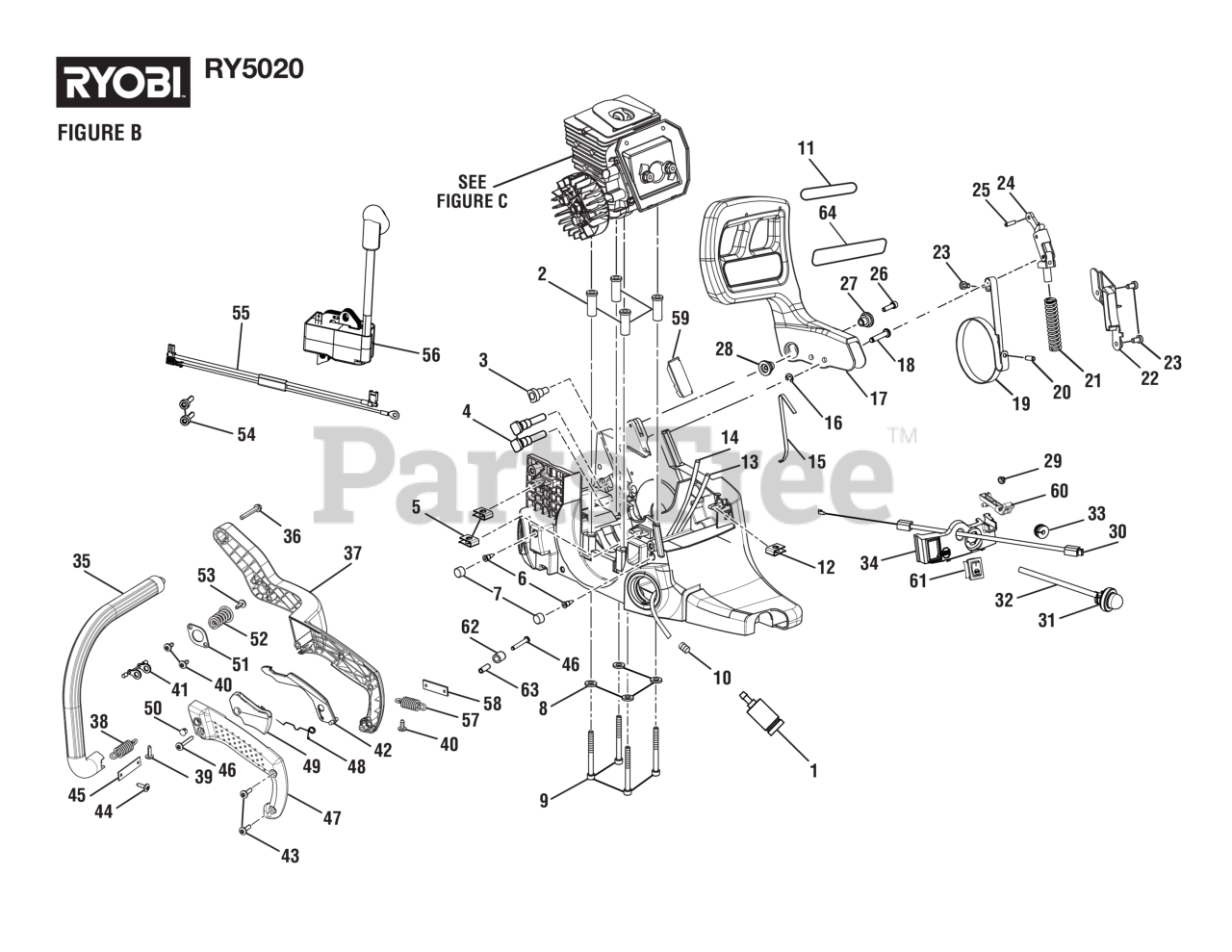

FIGURE B Parts Diagram

  • Title

1

Homelite 310976001

Fuel Filter

$

$

Not available

2

Homelite 671087001

Spacer Insert

$

$

Not available

3

Homelite 570226001

GROMMET, OIL OUTLET

$1.99

$

In Stock, only 4 left!

0

4

Homelite 660628001

Control Panel, Black
(Superseded to PS04881)

$

$

Not available

5

Homelite 671077001

Speed Nut ("U"-type)
(Superseded to 07598)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 560955001

Front Handle, Black

$2.49

$

In Stock, Qty 9

0

7

Homelite 671088001

Front Handle, Gray

$

$

Not available

8

Homelite 671080001

Washer (ID5.8 x OD11.5 x 1.7t)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 660622001

Screw (10-24 X 2 in. Soc. Cap Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 690765001

Filter Spring Clamp

$1.99

$

In Stock, only 4 left!

0

11

Homelite 941009066

Pull To Release Brake Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 671077002

Screw (10-14 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 562967005

Inlet Tubing (166 mm)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 570373054

Cupped Washer

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 638024001

Screw (10-14 x 3/4 in.)

$1.99

$

In Stock, only 4 left!

0

16

Homelite 671075001

Screw (10-14 Thread Twin Helix)
(Superseded to 69599)

$

$

Not available

17

Homelite 314708001

Hand Guard Assembly

Note: (Inc. Key Nos. 11, 26-28 & 64)

$11.99

$

Usually ships in 3-7 days

0

18

Homelite 620282001

HAND GUARD ACTUATING PIN

$1.99

$

In Stock, Qty 20+

0

19

Homelite 631063002

Chain Brake Band Kit
(Superseded to 985030001)

$

$

Not available

20

Homelite 671095001

Roll Pin (Big)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 678113001

SPRING, COMPRESSION
(Superseded to 984679001)

$

$

Not available

22

Homelite 511720002

Chain Brake Cover
(Superseded to 985021001)

$2.49

$

In Stock, Qty 5

0

23

Homelite 660634001

Screw (#8-16 x 5/16 in., T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, Qty 20+

0

24

Homelite 300954003

Chain Brake Link Assembly

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 671099001

Spring Pin (Small)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660635001

Screw (8-32 X 5/8 in. Hex Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

27

Homelite 671096001

Screw (10-24 x 5/8 in.)

$1.99

$

In Stock, Qty 5

0

28

Homelite 671097001

Screw (8-32 x 5/8 in.)

$1.99

$

In Stock, Qty 5

0

29

Homelite 631034002

Ignition Switch Harness

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 900885001

THROTTLE CABLE

$

$

Not available

31

Homelite 308088003

Primer Bulb

$

$

Not available

32

Homelite 570373055

Primer Tubing (64 mm)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 570227001

Grommet, Wire Harness (Split)

$1.99

$

In Stock, only 1 left!

0

34

Homelite 518044004

Control Panel

$

$

Not available

35

Homelite 511724001

Front Handle, Black
(Superseded to 511724011)

$

$

Not available

36

Homelite 660631001

SCREW (12-14 x 1-1/2 in.)
(Superseded to 82615)

$4.99

$

Usually ships in 3-7 days

0

37

Homelite 511721004

Rear Handle, Black

$11.99

$

Usually ships in 3-7 days

0

38

Homelite 671101005

Spring

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 660632001

Screw, Truss Hd., Plastite (10-14 x 5/8")
(Superseded to 82621)

$

$

Not available

40

Homelite 660618001

Screw (10-14 x 1/2 in., Torx Truss Hd. T.F.)
(Superseded to 82541)

$1.99

$

In Stock, only 3 left!

0

41

Homelite 308776005

Limiter (Upper Isolator Spring)

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 518051007

Trigger Release

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 660629001

Screws (10-14 x 3/4 in., T25 Torx Pan Hd. T.F.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

44

Homelite 660719001

Screw (10-14 Thread Twin Helix)

$1.99

$

In Stock, only 4 left!

0

45

Homelite 631050003

Spring Retainer

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 660633001

SCREW (10-14 x 1-3/8 in.)
(Superseded to 82622)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 511722003

Handle Cover, Black

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 678037001

Torsion Spring
(Superseded to PS04914)

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 518052003

Trigger

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 518050001

PLUG-PLASTIC
(Superseded to PS04932)

$

$

Not available

51

Homelite 631051001

Isolator Plate

$

$

Not available

52

Homelite 671098003

Isolator Spring

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 660630001

Screw (10-24 X 5/8 in. Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 660639001

Screw, Thread Form (8-32 x 5/8")

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 290298002

Ignition Switch Assembly

$3.49

$

Usually ships in 3-7 days

0

56

Homelite 290178036

Ignition Module Assembly

$35.99

$

Usually ships in 3-7 days

0

57

Homelite 671101006

Spring

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 631050004

Spring Retainer

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 631370001

Baffle

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 310952001

Choke Lever

Note: (Inc. Key No. 29)

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

62

Homelite 563600001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 694503001

Spacer (Spring Screw)

$1.99

$

Usually ships in 3-7 days

0

64

Homelite 941194035

Chain Brake Label

$1.99

$

Usually ships in 3-7 days

0
