RY 5020 (090840001) - Ryobi Chainsaw, 50cc, Rev 03 (2020-02) FIGURE A Parts Diagram

Chainsaw, 50cc, Rev 03

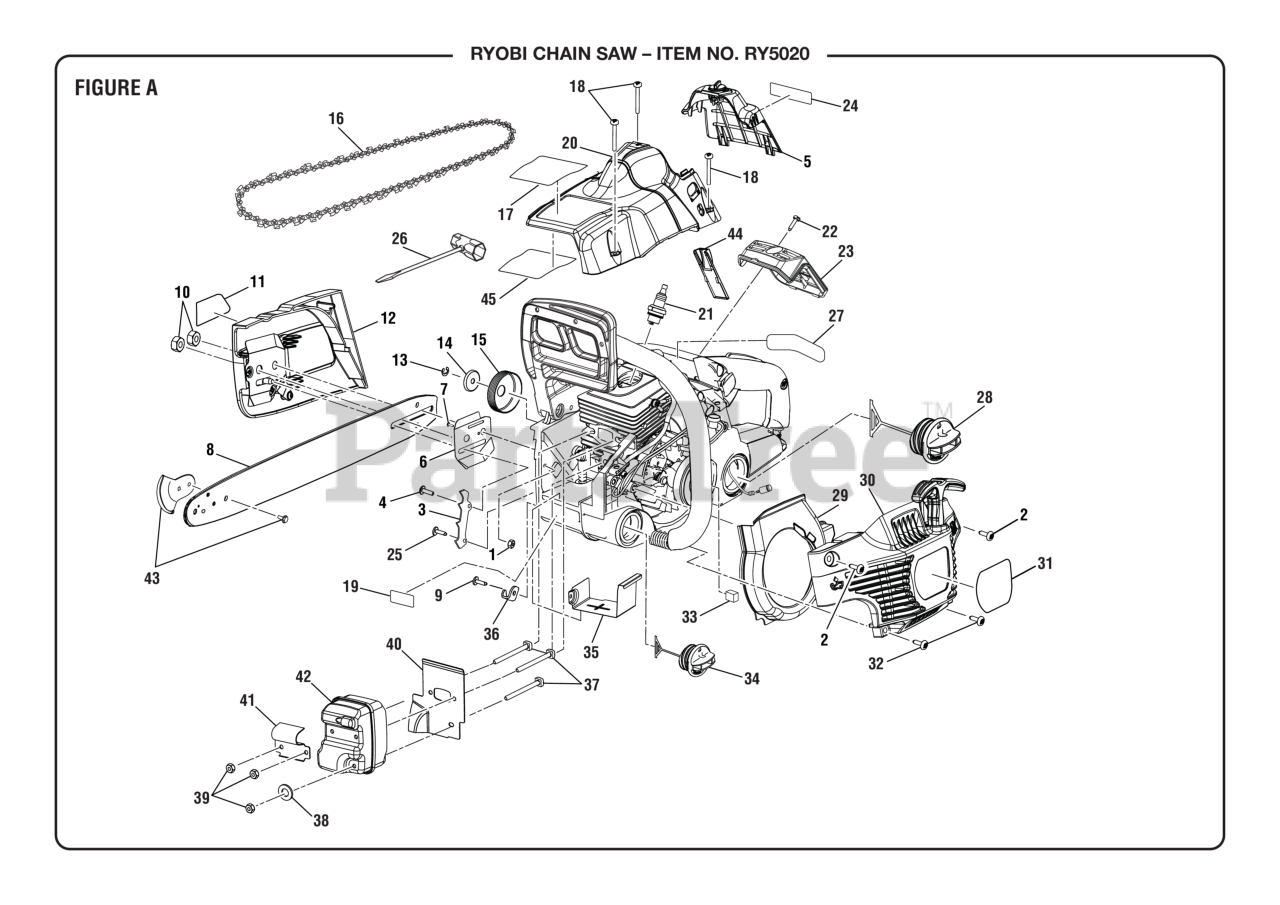

FIGURE A Parts Diagram

  • Title

1

Homelite 678027002

LOCK NUT, HEX (10-24)
(Superseded to 678027001)

$

$

Not available

2

Homelite 660632001

Screw, Truss Hd., Plastite (10-14 x 5/8")
(Superseded to 82621)

$

$

Not available

3

Homelite 631039001

BUMPER SPIKE
(Superseded to PS06077)

$

$

Not available

4

Homelite 660625001

Screw (10-24 x 5/8 in., Torx Pan Hd.)

$

$

Currently unavailable

5

Homelite 310995001

Filter Cover

$

$

Not available

6

Homelite 631036001

Inner Guide Plate

$

$

Not available

7

Homelite T660619001

Screw (#6-19 x 1/2 in., Phillips Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 311030001

20 in. Guide Bar w/SAFE-T-TIP

$84.99

$

In Stock, only 1 left!

0

9

Homelite 660618001

Screw (10-14 x 1/2 in., Torx Truss Hd. T.F.)
(Superseded to 82541)

$1.99

$

In Stock, only 3 left!

0

10

Homelite 678339003

Hex Nut (5/16-18 Flange)

$1.99

$

In Stock, only 2 left!

0

11

Homelite 941009076

Logo Label

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 300957019

Chain Cover Assembly

$

$

Not available

13

Homelite 671103001

RING, RETAINING
(Superseded to 08981)

$4.99

$

In Stock, only 1 left!

0

14

Homelite 631060001

Cupped Washer

$

$

Not available

15

Homelite 313004001

Sprocket Drum and Bearing Assembly (.325 chain)

$

$

Not available

16

Homelite 900920005

Chain (.325 x 78 links, 20 in.)

$

$

Currently unavailable

17

Homelite 941194029

Warning Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 660636001

Screw (10-16 x 1-1/2 in. Special)

$

$

Not available

19

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 314707001

Cylinder Housing

$6.49

$

Usually ships in 3-7 days

0

21

Homelite 870174001

SPARK PLUG CHAMPION - RCJ-6Y

$4.99

$

In Stock, Qty 20+

0

22

Homelite 660617001

Screw-Slotted Pan Hd. (8-16 x 5/8")
(Superseded to 82617)

$1.99

$

In Stock, only 2 left!

0

23

Homelite 518049007

Air Filter 50cc

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 941194032

Chain Replacement Label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in., T25 Torx Truss Hd. T.F.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

26

Homelite 631055005

Combination Wrench

$5.99

$

Usually ships in 3-7 days

0

27

Homelite 941194031

Starting Instruction Label

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 300948005

Fuel Cap Assembly

$

$

Not available

29

Homelite 518055004

Fan Housing Baffle

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 314706001

Starter Cover Assembly

$23.99

$

Usually ships in 3-7 days

0

31

Homelite 941194030

Logo Label (Item No. RY5020)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 660637001

Screw, Truss Hd., Plastite (10-14 x 7/8")
(Superseded to 82620)

$1.99

$

In Stock, Qty 6

0

33

Homelite 900844001

PRE FILTER
(Superseded to PS05070)

$

$

Not available

34

Homelite 300949004

Oil Cap Assembly
(Superseded to 090038001001)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 638455002

Heat Shield

$7.49

$

In Stock, only 1 left!

0

36

Homelite 631035003

Chain Catcher
(Superseded to 631035002)

$4.99

$

Usually ships in 3-7 days

0

37

Homelite 660626002

Muffler Bolt (Square Hd.)

$

$

Not available

38

Homelite 631056001

Washer (OD16 x ID5.5 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 671079001

NUT-LOCKING HEX (10-32)

$1.49

$

In Stock, Qty 6

0

40

Homelite 900848004

Muffler Gasket

$

$

Currently unavailable

41

Homelite 638513009

Muffler Deflector

$1.99

$

In Stock, only 1 left!

0

42

Homelite 309310010

Muffler Assembly

$131.99

$

In Stock, only 1 left!

0

43

Homelite 314927001

SAFE-T-TIP and Screw Assembly (.325 Bar)

$3.49

$

Usually ships in 3-7 days

0

44

Homelite 518144001

Cylinder Housing Divider

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 901421003

Heat Reflector Tape

$

$

Not available

Homelite 518061013

20 in. Scabbard (Model RY10521 & RY10521A)

$

$

Not available

Homelite 308280003

Carrying Case (Scabbard Not Included)

$

$

Not available

Homelite 995000360

Operator's Manual (961469009)

$

$

Not available
