RY 49701 - Ryobi Log Splitter, Electric General Assembly (Part 1) Parts Diagram

Log Splitter, Electric

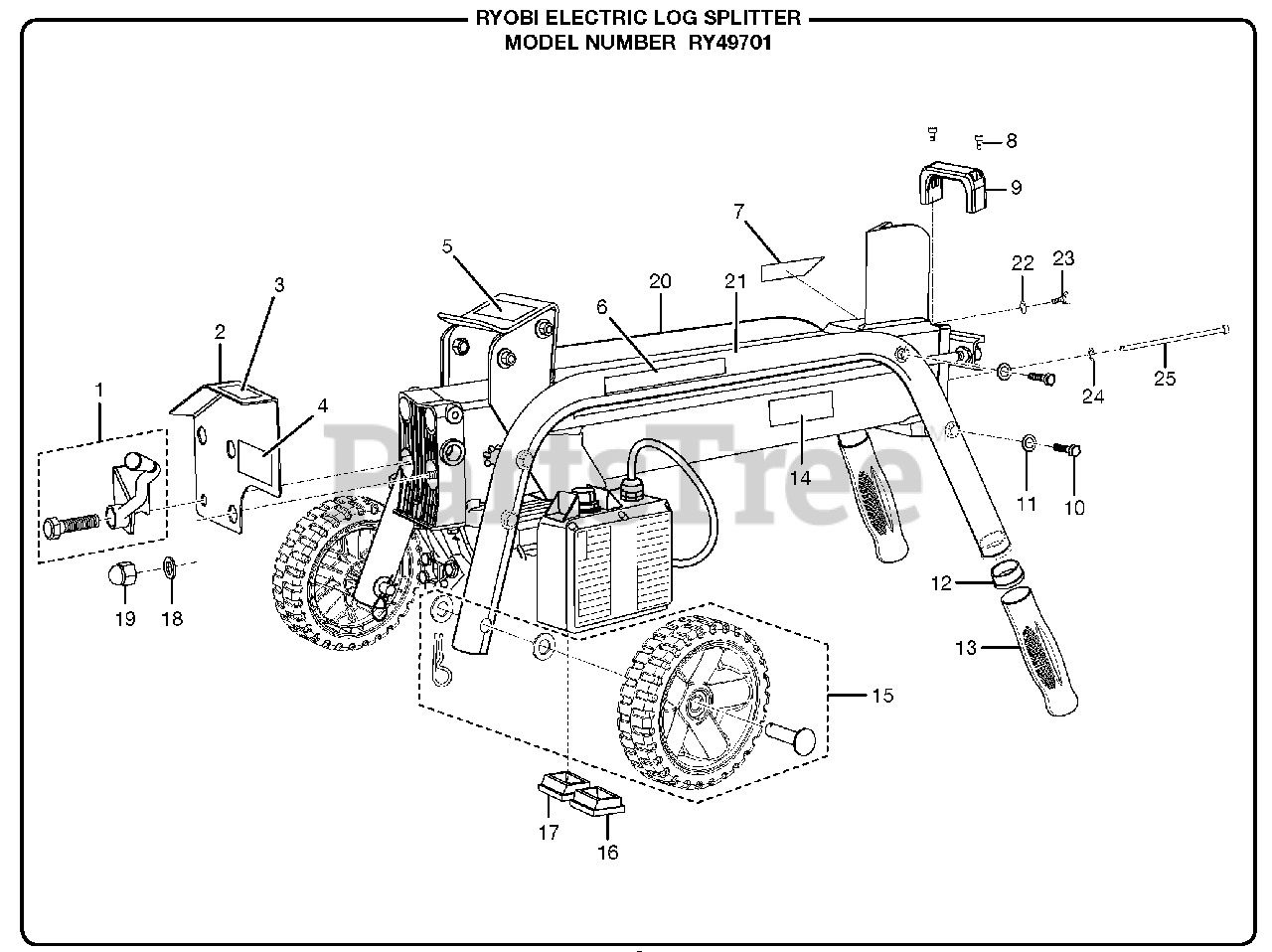

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 099077001501

HYDRAULIC CONTROL LEVER

$

$

Not available

2

Homelite 099077001075

CONTROL LEVER GUARD

$

$

Not available

3

Homelite 099077001103

WARNING LABEL

$

$

Not available

4

Homelite 099077001104

DATA LABEL

$

$

Not available

5

Homelite 099077001101

BLEED SCREW INSTRUCTION LABEL

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 099077001100

WARNING LABEL

$

$

Not available

7

Homelite 099077001102

BLEED SCREW LABEL

$

$

Not available

8

Homelite 099077001018

SCREW (M5 X 16 mm)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 099077001019

HANDLE

$4.49

$

In Stock, only 2 left!

0

10

Homelite 099077001088

BOLT (M8 X 55 mm)

Note: Purchase locally

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 099077001087

WASHER

$

$

Not available

12

Homelite 099077001031

PLUG

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 099077001032

RUBBER GRIP

$7.49

$

Usually ships in 3-7 days

0

14

Homelite 099077001099

LOGO LABEL

$

$

Not available

15

Homelite 099077001502

WHEEL ASSEMBLY

$24.99

$

Usually ships in 3-7 days

0

16

Homelite 099077001049

RUBBER FOOT (R)

$2.99

$

In Stock, only 3 left!

0

17

Homelite 099077001051

RUBBER FOOT (L)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 099077001070

WASHER

$

$

Not available

19

Homelite 099077001071

NUT

$

$

Not available

20

Homelite 099077001085

LEG FRAME (R)

$

$

Not available

21

Homelite 099077001086

LEG FRAME (L)

$

$

Not available

22

Homelite 099077001025

O-RING

$2.49

$

In Stock, Qty 5

0

23

Homelite 099077001026

WING BOLT

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 099077001029

O-RING

$2.99

$

In Stock, Qty 5

0

25

Homelite 099077001030

DIPSTICK

$

$

Not available
