RY 48ZTR75 (099749015) - Ryobi 42" 48V Zero-Turn Mower, Rev 03 (2021-04) FIGURE N - BATTERY AND BATTERY TRAY ASSEMBLY Parts Diagram

42" 48V Zero-Turn Mower, Rev 03

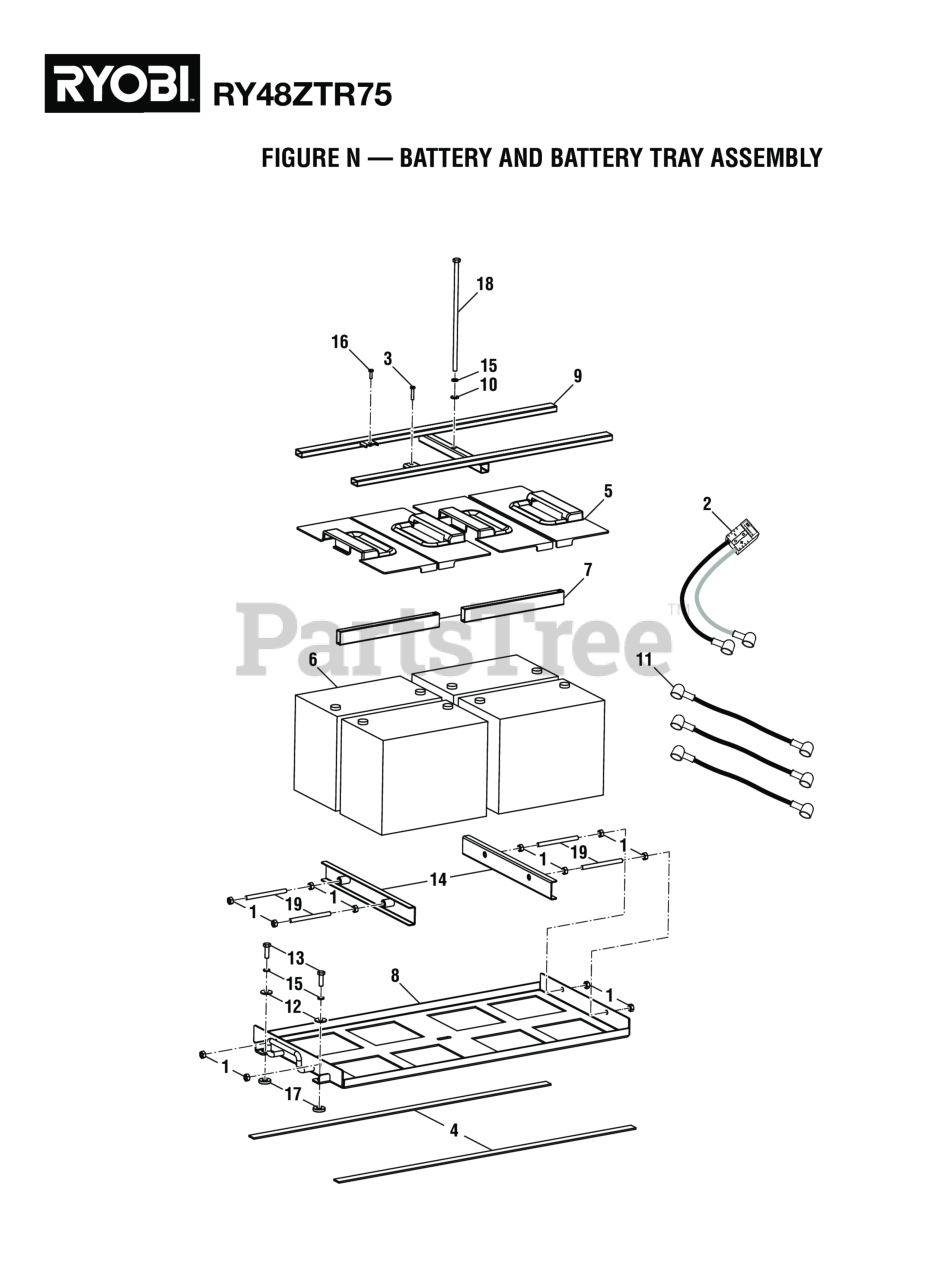

FIGURE N - BATTERY AND BATTERY TRAY ASSEMBLY Parts Diagram

  • Title

1

Homelite 996346001

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 997102001

Battery Cable 2, ZTR

$186.99

$

Usually ships in 3-7 days

0

3

Homelite 997133001

Screw (M5 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 997049001

Battery Tray Slider

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 997092001

Battery Shield, ZTR

$9.99

$

Usually ships in 3-7 days

0

6

Homelite 996269001

Battery (LPC12-75, RY48110, RY48112)

$

$

Not available

7

Homelite 996363001

Battery Spacer (LPC12-75)

$

$

Not available

8

Homelite 994923001

Battery Tray

$

$

Not available

9

Homelite 997050001

Battery Tie Down

$47.99

$

Usually ships in 3-7 days

0

10

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 996272001

Battery Cable w/Covers (Red and Black, 120 mm)

$36.99

$

In Stock, only 1 left!

0

12

Homelite 994827001

Washer (OD 24 x ID8.4 x 2t)

$2.99

$

In Stock, only 1 left!

0

13

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 996351001

Battery Holder Bracket

$

$

Not available

15

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 996213001

SCREW,PPHMS, M5 X 0.8 X 16 - STEEL,

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 996038001

Metal Bushing

$

$

Not available

18

Homelite 997096001

Hex Bolt (M8 x 240 mm)

$10.99

$

Usually ships in 3-7 days

0

19

Homelite 996350001

Threaded Rod (M8 x 100 mm)

$

$

Not available
