RY 48ZTR75 (099749015) - Ryobi 42" 48V Zero-Turn Mower, Rev 02 (2019-08) FIGURE P Parts Diagram

42" 48V Zero-Turn Mower, Rev 02

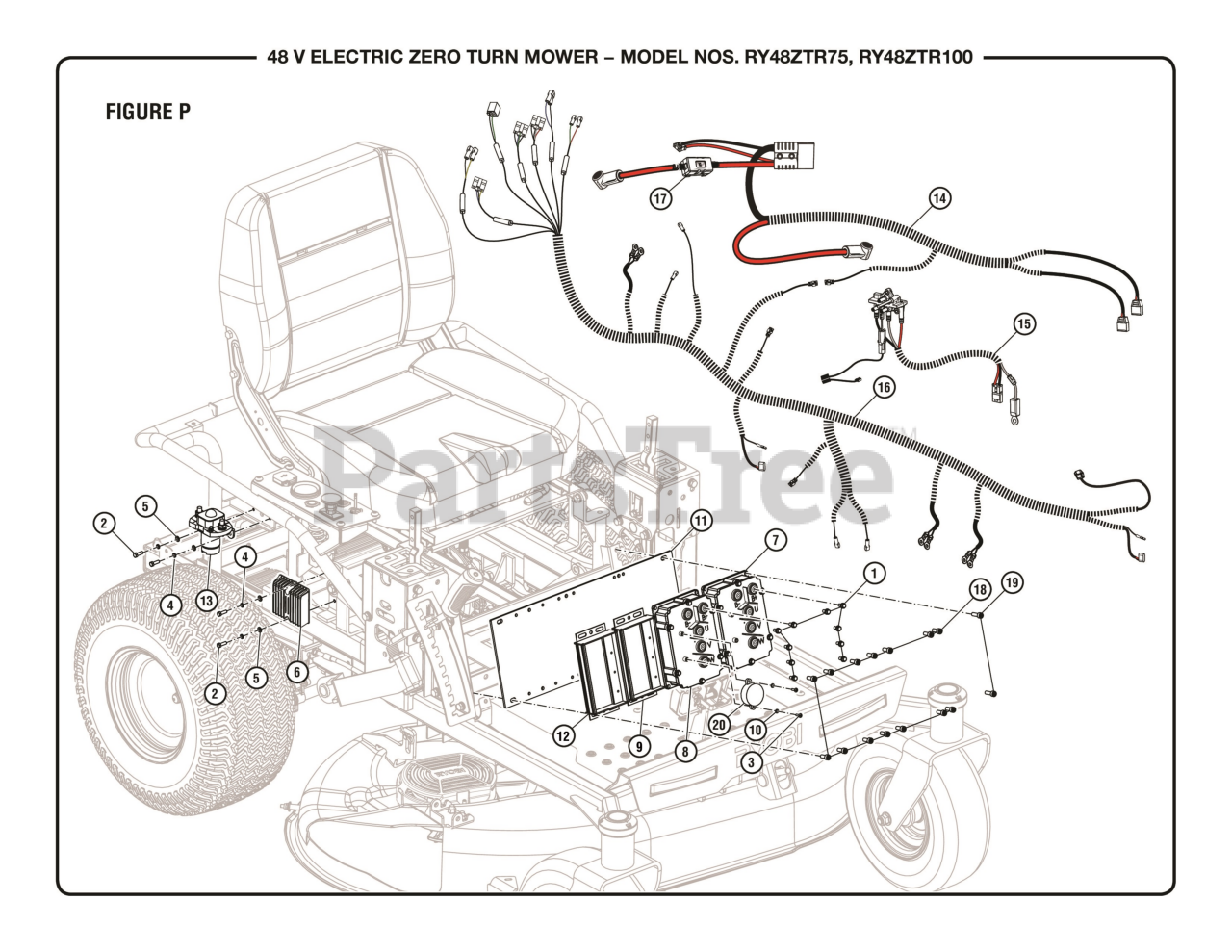

FIGURE P Parts Diagram

  • Title
1

Homelite 997137001

Hex Flange Bolt (M5 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 996565001

Bolt (M5 x 16 mm, Hex hd.) (For Main Relay G)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 997094001

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 996286001

Lock Washer (For Main Relay G)

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 996295001

Washer (OD12 x ID5.3 x 1t) (For Main Relay G and Power Converter I)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 997077001

DC to DC Converter, ZTR

$120.99

$

Usually ships in 3-7 days

0

7

Homelite 997057001

Drive Motor Controller, Slave, ZTR

$888.99

$

In Stock, only 1 left!

0

8

Homelite 997056001

Drive Motor Controller, Master, ZTR

$888.99

$

Usually ships in 3-7 days

0

9

Homelite 997058001

Deck Motor Controller, Master, ZTR

$521.99

$

Usually ships in 3-7 days

0

10

Homelite 996035001

Washer (OD7 x ID3.2 x 0.6t) (For Beeper Q)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 997055001

Controller Mounting Plate

$60.99

$

Usually ships in 3-7 days

0

12

Homelite 997059001

Deck Motor Controller, Slave, ZTR

$888.99

$

Usually ships in 3-7 days

0

13

Homelite 994993001

Main Relay (G)
(Superseded to 996497001)

$161.99

$

Usually ships in 3-7 days

0

14

Homelite 997091001

Battery Output Cable

$397.99

$

Usually ships in 3-7 days

0

15

Homelite 997103001

Charging Controller, ZTR

$44.99

$

In Stock, only 2 left!

0

16

Homelite 997090001

Main Wiring Harness

$471.99

$

Usually ships in 3-7 days

0

17

Homelite 997147001

Fuse, 125 Amp

$14.99

$

Usually ships in 3-7 days

0

18

Homelite 997098001

Screw (M6 x 16 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 997148001

Screw (M6 x 20 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 997149001

Beeper, ZTR

$22.99

$

Usually ships in 3-7 days

0
