RY 48ZTR75 (099749015) - Ryobi 42" 48V Zero-Turn Mower, Rev 01 (2019-05) FIGURE C Parts Diagram
42" 48V Zero-Turn Mower, Rev 01

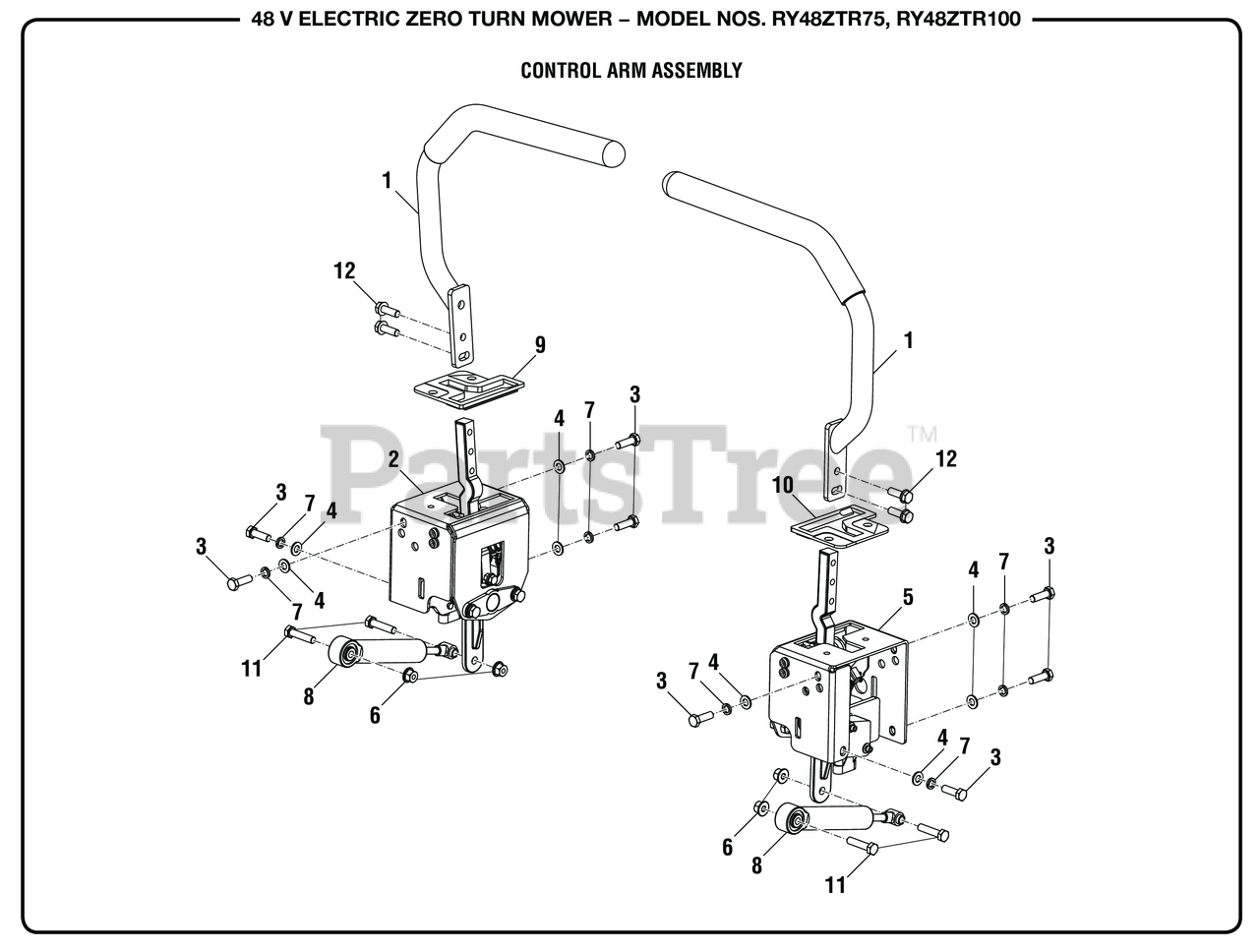

FIGURE C Parts Diagram
Homelite 997045001
Control Arm Handle
$73.99
$
Usually ships in 3-7 days
Homelite 997144001
Control Arm Assembly, Left
$382.99
$
In Stock, only 1 left!
Homelite 996046001
Bolt (M8 x 25 mm, Hex Hd.)
$2.99
$
Usually ships in 3-7 days
Homelite 994771001
Washer (OD16 x ID8.4 x 1.6t)
$2.99
$
Usually ships in 3-7 days
Homelite 997145001
Control Arm Assembly, Right
$401.99
$
In Stock, only 2 left!
Homelite 994867001
Flange Nut (M8) (For Drive Motor Controller V)
$2.49
$
In Stock, Qty 7
Homelite 994770001
Lock Washer (OD9.8 x ID8.5 x 5t)
$2.99
$
Usually ships in 3-7 days
Homelite 997072001
Control Arm Damper
$105.99
$
Usually ships in 3-7 days
Homelite 997043001
T Slot Insert, Left
$5.99
$
Usually ships in 3-7 days
Homelite 997044001
T Slot Insert, Right
$5.99
$
Usually ships in 3-7 days
Homelite 997135001
Bolt (M8 x 35 mm, Hex Hd.)
$1.49
$
Usually ships in 3-7 days
Homelite 997146001
Bolt w/Washer (M8 x 25 mm, Hex Hd.)
$1.99
$
Usually ships in 3-7 days
