RY 48ZTR75 (099749015) - Ryobi 42" 48V Zero-Turn Mower, Rev 01 (2019-05) FIGURE B Parts Diagram

42" 48V Zero-Turn Mower, Rev 01

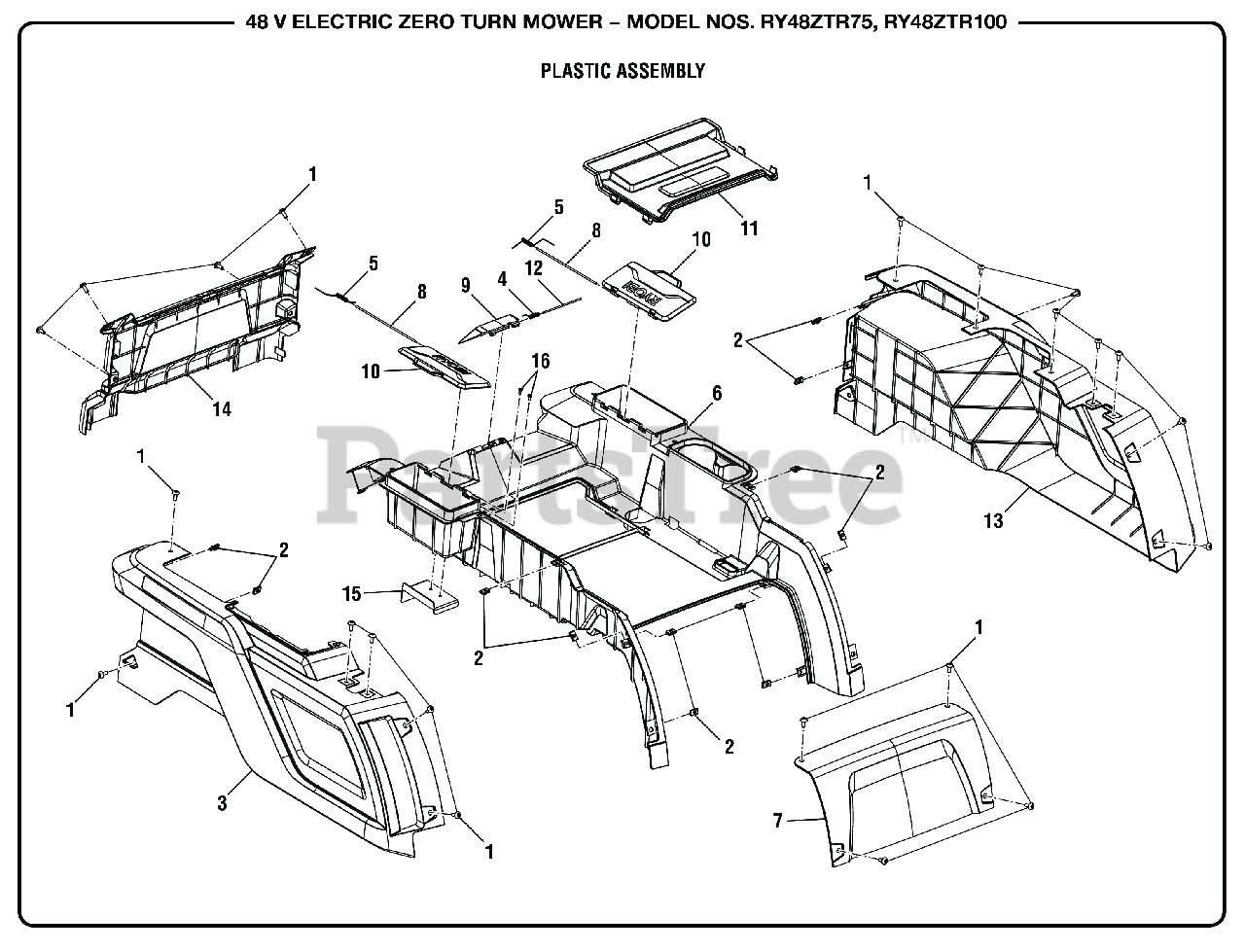

FIGURE B Parts Diagram

  • Title

1

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$2.99

$

In Stock, Qty 8

0

2

Homelite 994785001

Clip-On Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 997064001

Right Trim Cover

$

$

Not available

4

Homelite 997075001

Charger Port Door Spring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 997076001

Storage Box Spring

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 997061001

Center Trim Cover

$185.99

$

Usually ships in 3-7 days

0

7

Homelite 997066001

Front Access Panel

$36.99

$

Usually ships in 3-7 days

0

8

Homelite 997070001

Storage Box Hinge Pin

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 997067001

Charger Port Door

$9.49

$

Usually ships in 3-7 days

0

10

Homelite 997068001

Storage Box Lid

$13.99

$

In Stock, only 1 left!

0

11

Homelite 997065001

Center Access Panel

$19.99

$

Usually ships in 3-7 days

0

12

Homelite 997069001

Charger Port Door Hinge Pin

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 997063001

Left Trim Cover

$

$

Not available

14

Homelite 997062001

Rear Trim Cover

$41.99

$

Usually ships in 3-7 days

0

15

Homelite 997087001

Main Relay Guard

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 996297001

Screw (M4 x 10 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0
