RY 48ZTR100 (099749016) - Ryobi 42" 48V Zero-Turn Mower, Rev 02 (2019-08) WIRING DIAGRAM Parts Diagram

42" 48V Zero-Turn Mower, Rev 02

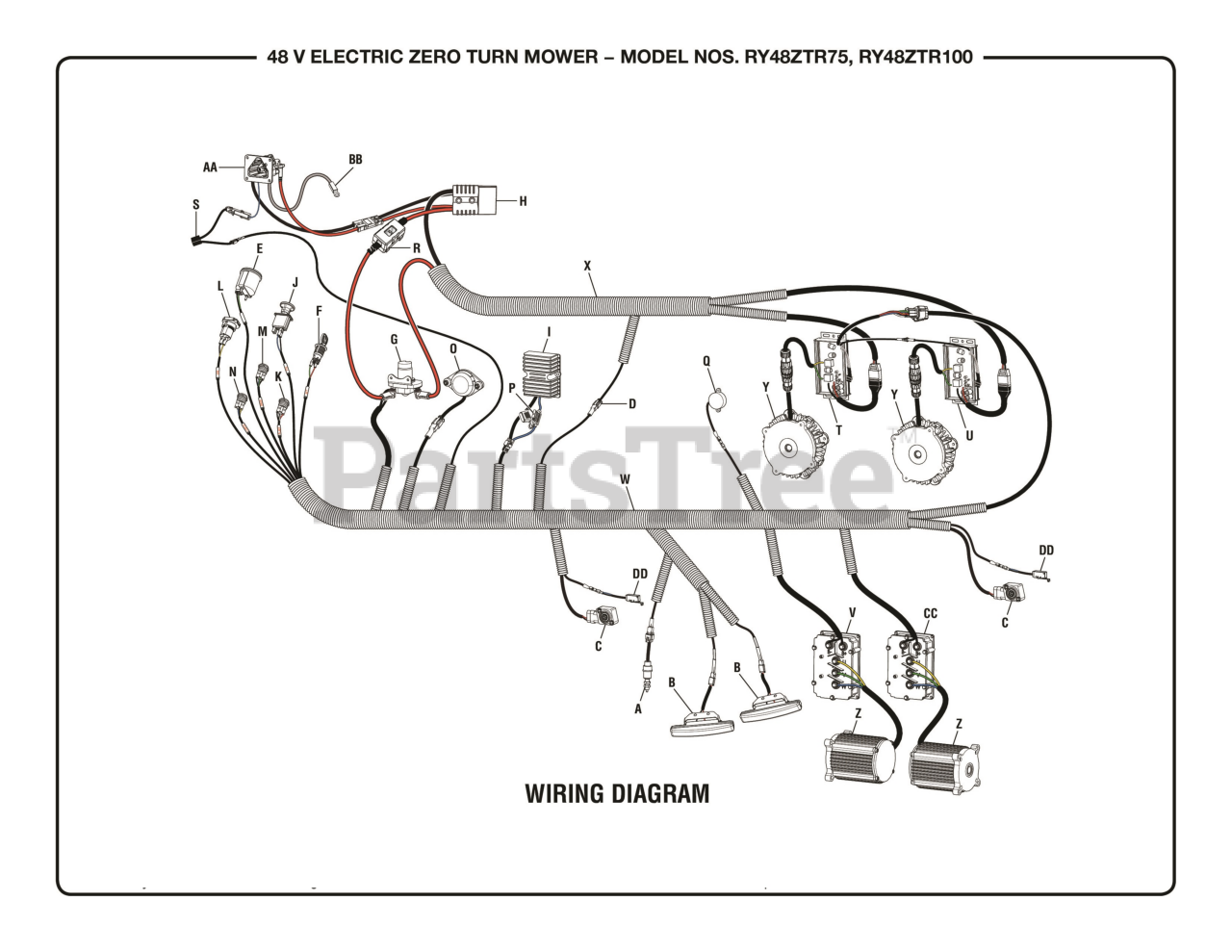

WIRING DIAGRAM Parts Diagram

  • Title

A

Brake Switch

$

$

Not available

B

Headlights

$

$

Not available

C

Accelerator

$

$

Not available

D

Ground

$

$

Not available

E

Battery Gauge

$

$

Not available

F

Switch w/Key

$

$

Not available

G

Relay

$

$

Not available

H

Battery Connector

$

$

Not available

I

12 Volt Power Converter

$

$

Not available

J

Blade PTO

$

$

Not available

K

Blade Speed

$

$

Not available

L

USB

$

$

Not available

M

Drive Speed

$

$

Not available

N

Headlight Switch

$

$

Not available

O

Seat Switch

$

$

Not available

P

2 Amp Fuse

$

$

Not available

Q

Beeper

$

$

Not available

R

125 Amp Fuse

$

$

Not available

S

Charger Lockout Circuit

$

$

Not available

T

Master Deck Motor Controller

$

$

Not available

U

Slave Deck Motor Controller

$

$

Not available

V

Master Drive Motor Controller

$

$

Not available

W

Main Wiring Harness

$

$

Not available

X

Battery Output Cable

$

$

Not available

Y

Deck Motor

$

$

Not available

Z

Drive Motor

$

$

Not available

AA

Charger Port

$

$

Not available

BB

Temperature Sensor

$

$

Not available

CC

Slave Drive Motor Controller

$

$

Not available

DD

Neutral Switch

$

$

Not available
