RY 48ZTR100 (099749016) - Ryobi 42" 48V Zero-Turn Mower, Rev 02 (2019-08) FIGURE H Parts Diagram
42" 48V Zero-Turn Mower, Rev 02

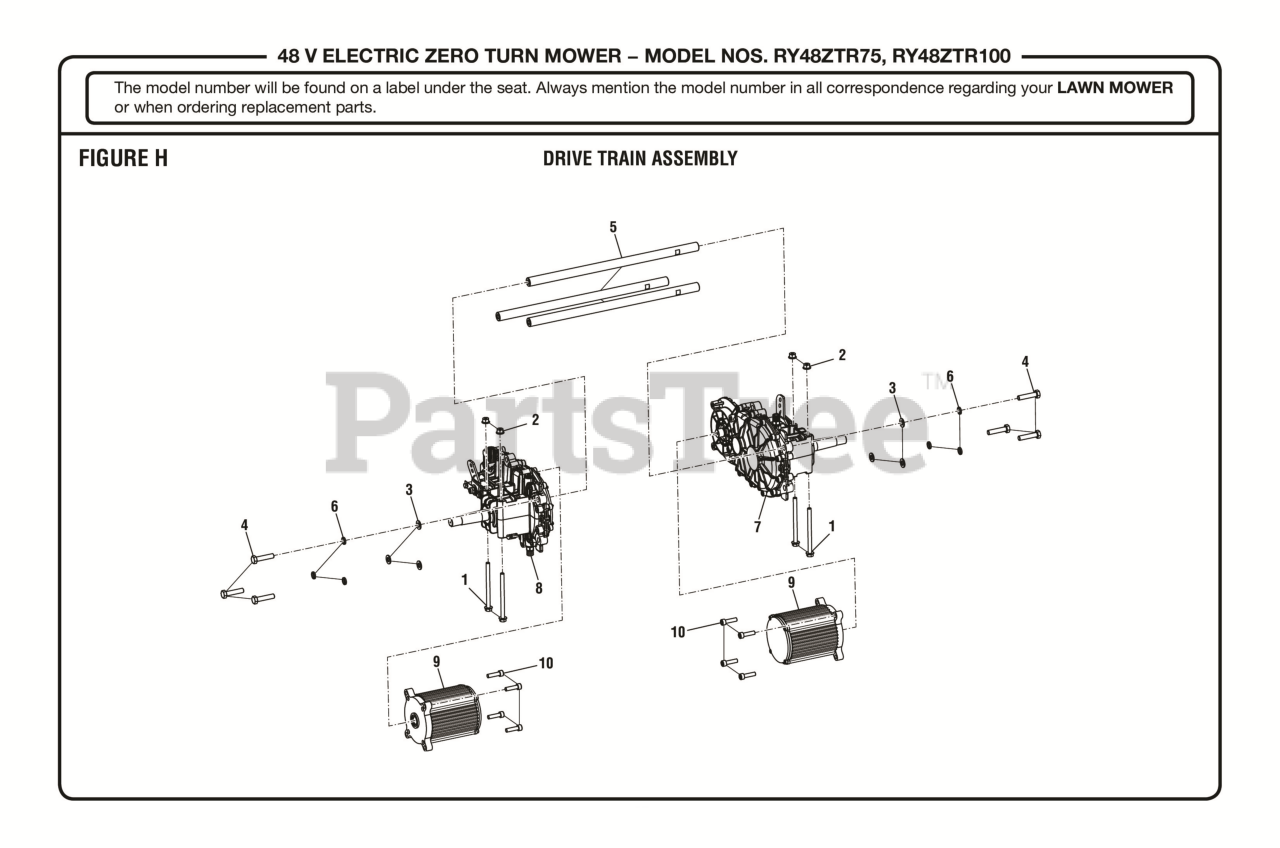

FIGURE H Parts Diagram
Homelite 997088001
Flange Bolt (M8 x 110 mm, Hex Hd.)
$2.99
$
Usually ships in 3-7 days
Homelite 994867001
Flange Nut (M8) (For Drive Motor Controller V)
$2.49
$
In Stock, Qty 7
Homelite 994996001
Washer (OD20 x ID10.5 x 2t)
$3.49
$
In Stock, Qty 5
Homelite 996323001
Bolt (M10 x 45 mm, Hex Hd.)
$
$
Not available
Homelite 997000001
Tie Rod
$30.99
$
Usually ships in 3-7 days
Homelite 994998001
Lock Washer (M10)
$
$
Not available
Homelite 997158001
Gearbox, Left
$1810.99
$
Usually ships in 3-7 days
Homelite 997159001
Gearbox, Right
$1975.99
$
Usually ships in 3-7 days
Homelite 997157001
Drive Motor, ZTR
$608.99
$
Usually ships in 3-7 days
Homelite 997160001
Screw (M8 x 30 mm, Soc Hd.)
$1.99
$
Usually ships in 3-7 days
