RY 48ZTR100 (099749016) - Ryobi 42" 48V Zero-Turn Mower, Rev 02 (2019-08) FIGURE F Parts Diagram

42" 48V Zero-Turn Mower, Rev 02

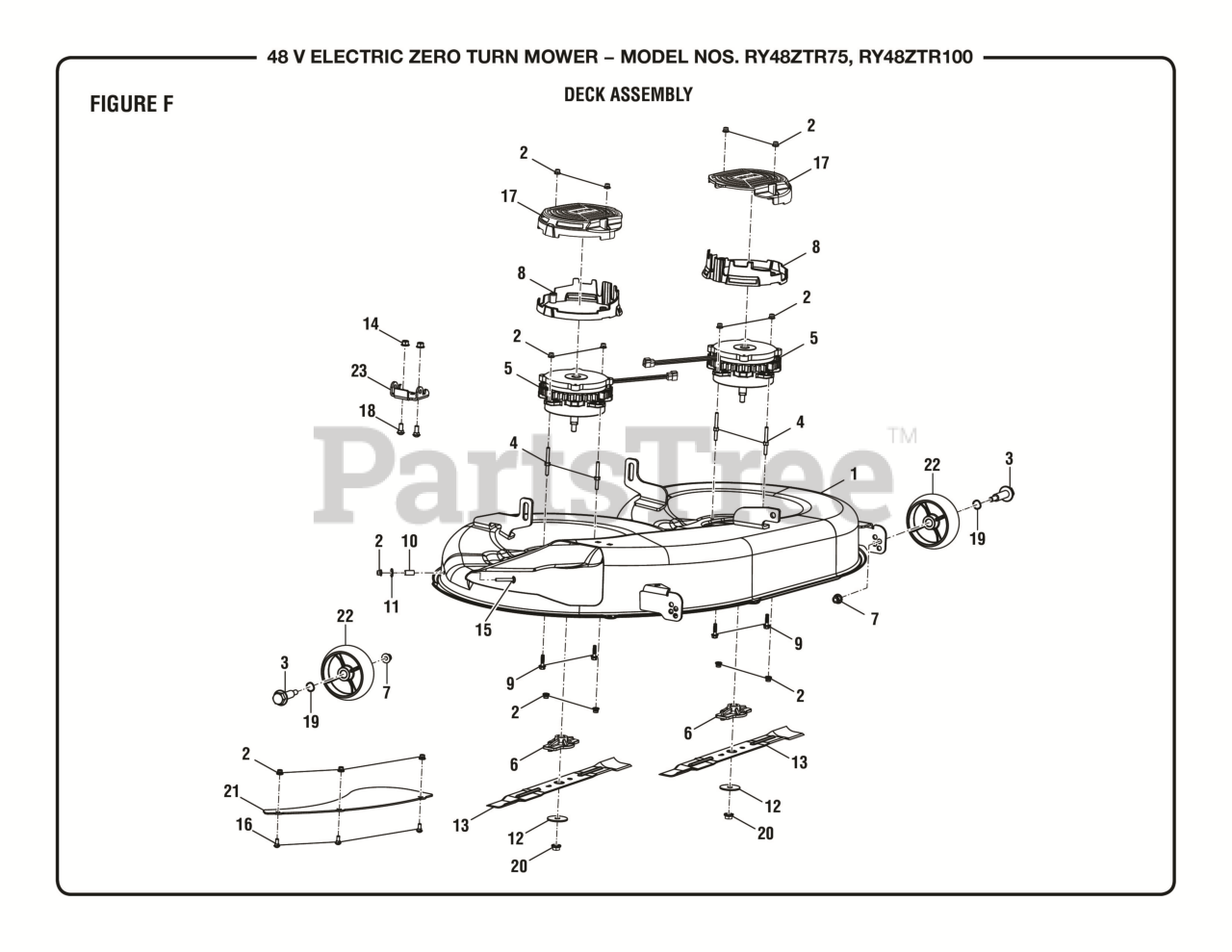

FIGURE F Parts Diagram

  • Title
1

Homelite 997020001

Deck, 42 in

$643.99

$

Usually ships in 3-7 days

0

2

Homelite 996251001

Flange Lock Nut (M6 x 1.00)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 996205001

Shoulder Bolt (M10 x 70 mm)

$20.99

$

In Stock, only 1 left!

0

4

Homelite 996201001

Threaded Stud (M6 x 35 mm)

$18.99

$

In Stock, only 1 left!

0

5

Homelite 997026001

Deck Motor

$744.99

$

Usually ships in 3-7 days

0

6

Homelite 997027001

Blade Adapter

$9.99

$

In Stock, only 2 left!

0

7

Homelite 996192001

Lock Nut (M10 x 1.5 mm)

$2.49

$

In Stock, Qty 5

0

8

Homelite 997083001

Deck Motor Cover, Bottom

$7.99

$

Usually ships in 3-7 days

0

9

Homelite 996057001

Flange Bolt (M6 x 25 mm, Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

10

Homelite 996039001

Deck Bagger Chute Mounting Shaft

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 996034001

Washer (OD18 x ID6.4 x 1.6t)

$3.49

$

In Stock, Qty 14

0

12

Homelite 997028001

Blade Retainer Washer

$5.99

$

In Stock, only 2 left!

0

13

Homelite 682282001

21 in. Blade

$38.99

$

In Stock, only 2 left!

0

14

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$2.49

$

In Stock, Qty 7

0

15

Homelite 996250001

Screw (M6 x 40, Soc Hd.)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 994791001

Carriage Bolt (M6 x 16 mm)

$2.99

$

In Stock, only 4 left!

0

17

Homelite 997084001

Deck Motor Cover, Top

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 996050001

Carriage Bolt (M8 x 20 mm)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 996355001

Spring Washer (OD20.5 x ID17 x 0.3t)

$3.49

$

In Stock, only 2 left!

0

20

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$2.49

$

In Stock, only 2 left!

0

21

Homelite 997074001

Deck Baffle (42 in.)

$18.99

$

Usually ships in 3-7 days

0

22

Homelite 996265001

Front Deck Roller Wheel (124.5 Dia.)

$32.99

$

In Stock, only 2 left!

0

23

Homelite 997127001

Discharge Chute Mounting Bracket

$16.99

$

Usually ships in 3-7 days

0
