RY 48140 (099749046) - Ryobi 54" Zero-Turn Mower, Electric, Rev 02 (2022-01) FIGURE N Parts Diagram

54" Zero-Turn Mower, Electric, Rev 02

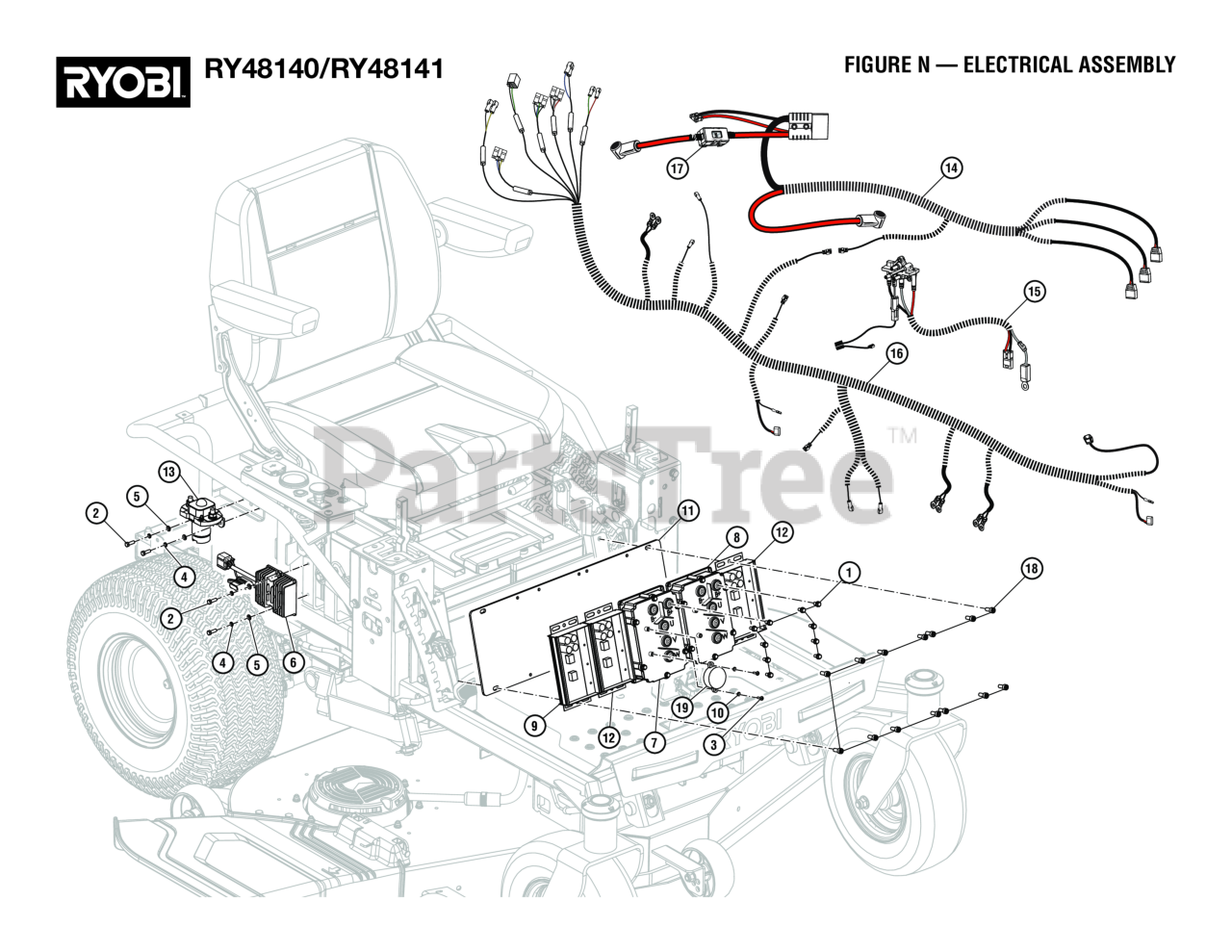

FIGURE N Parts Diagram

  • Title

1

Homelite 997137001

Hex Flange Bolt (M5 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 996565001

Bolt (M5 x 16 mm, Hex hd.) (For Main Relay G)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 997094001

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 996286001

Lock Washer (For Main Relay G)

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 996295001

Washer (OD12 x ID5.3 x 1t) (For Main Relay G and Power Converter I)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 997077001

DC to DC Converter, ZTR

$120.99

$

Usually ships in 3-7 days

0

7

Homelite 997057001

Drive Motor Controller, Slave, ZTR

$888.99

$

In Stock, only 1 left!

0

8

Homelite 997056001

Drive Motor Controller, Master, ZTR

$888.99

$

Usually ships in 3-7 days

0

9

Homelite 997468001

Deck Motor Controller, Master

$587.99

$

Usually ships in 3-7 days

0

10

Homelite 996035001

Washer (OD7 x ID3.2 x 0.6t) (For Beeper Q)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 997467001

Controller Mounting Plate

$59.99

$

Usually ships in 3-7 days

0

12

Homelite 997469001

Deck Motor Controller, Slave

$587.99

$

Usually ships in 3-7 days

0

13

Homelite 994993001

Main Relay (G)
(Superseded to 996497001)

$161.99

$

Usually ships in 3-7 days

0

14

Homelite 997686001

Battery Output Cable.

$

$

Currently unavailable

15

Homelite 997103001

Charging Controller, ZTR

$44.99

$

In Stock, only 2 left!

0

16

Homelite 997682001

Main Wiring Harness

$497.99

$

Usually ships in 3-7 days

0

17

Homelite 997147001

Fuse, 125 Amp

$14.99

$

Usually ships in 3-7 days

0

18

Homelite 997098001

Screw (M6 x 16 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 997149001

Beeper, ZTR

$22.99

$

Usually ships in 3-7 days

0
