RY 48140 (099749046) - Ryobi 54" Zero-Turn Mower, Electric, Rev 02 (2022-01) FIGURE E Parts Diagram

54" Zero-Turn Mower, Electric, Rev 02

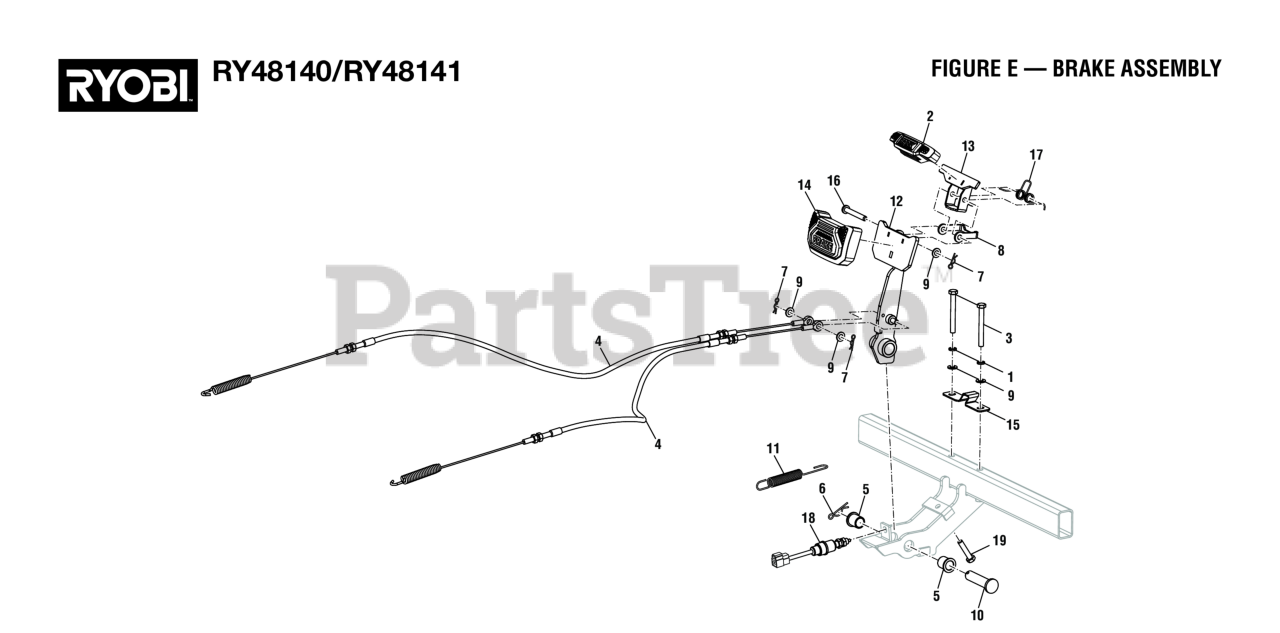

FIGURE E Parts Diagram

  • Title

1

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 997010001

Parking Brake Rubber Pad

$9.49

$

Usually ships in 3-7 days

0

3

Homelite 997089001

Bolt (M8 x 70 mm, Hex Hd.)

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 997452001

Brake Cable

$44.99

$

Usually ships in 3-7 days

0

5

Homelite 994928001

Bushing

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 994930001

Lock Pin (16 mm)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 996013001

Cotter Pin (8 mm)

$2.99

$

In Stock, only 1 left!

0

8

Homelite 997006001

Parking Brake Latch

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 994929001

Clevis Pin

$11.99

$

Usually ships in 3-7 days

0

11

Homelite 997011001

Brake Pedal Spring

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 997004001

Brake Pedal Lever

$29.99

$

Usually ships in 3-7 days

0

13

Homelite 997005001

Parking Brake Pedal

$7.99

$

Usually ships in 3-7 days

0

14

Homelite 997009001

Brake Pedal Rubber Pad

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 997003001

Brake Latch Hook

$4.49

$

Usually ships in 3-7 days

0

16

Homelite 997007001

Clevis Pin (M8 x 60 mm)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 997008001

Parking Brake Torsion Spring

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 994837001

Brake Switch Assembly

$54.99

$

Usually ships in 3-7 days

0

19

Homelite 997131001

Bolt (M8 x 40 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0
